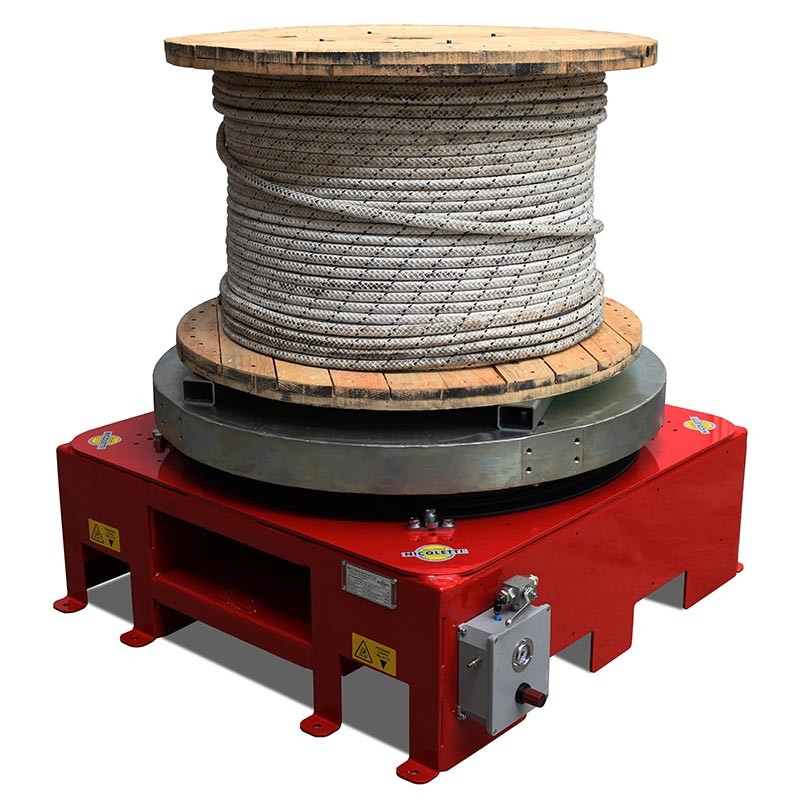

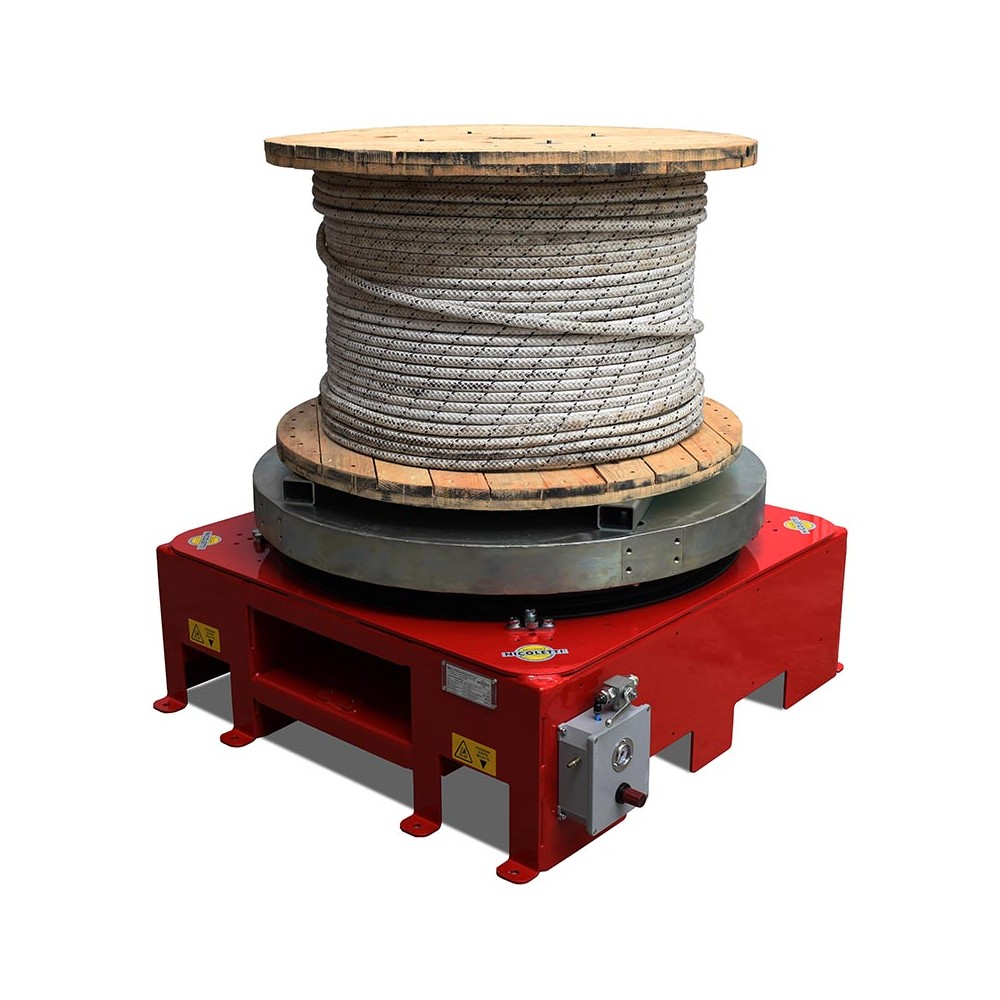

UNWINDING TURNTABLE WITH AIR-OPERATED BRAKE - SVI/FR/20 其他性能

SVOLGITORE A RALLA PNEUMATICO - SVI/FR/20
Zoom

SVI/FR/20

改变表现选择 >
观看视频

特性

1qMufTo1bfU

  • For reels Ø 600-1250mm with arbor hole placed in vertical position
  • Capacity 2000 kg
  • Air-operated brake, pulling adjusted by pressure.
  • Tensioning by disc brake Ø250mm
  • Pressure adjustment from 0 to 6 ATM
  • Braking release by actuating the release valve
  • Possibility of moving with forklift or pallet truck
  • Complete with centering locking shaft
  • Floor fixing brackets

技术数据表

机器高度(mm) 1000 mm
机器宽度(mm) 1200 mm
机器长度(mm) 1200 mm
空重 (kg) 500 kg
线轴 - 最大直径(mm) 1250 mm
线轴 - 最大宽度(mm) 810 mm
线轴 - 最大载重量(kg) 2000 Kg
Reel holder against falling down Ø 1400 mm
索要报价
