LINAP-60/26-MP MEDIUM PERFORMANCE - AVERAGE CYCLE TIME (LOADING-UNLOADING-WINDING 300m) 17 MIN

LINAP Series
Zoom

LINAP-60/26-MP

Change performance choice >
Watch video

Features

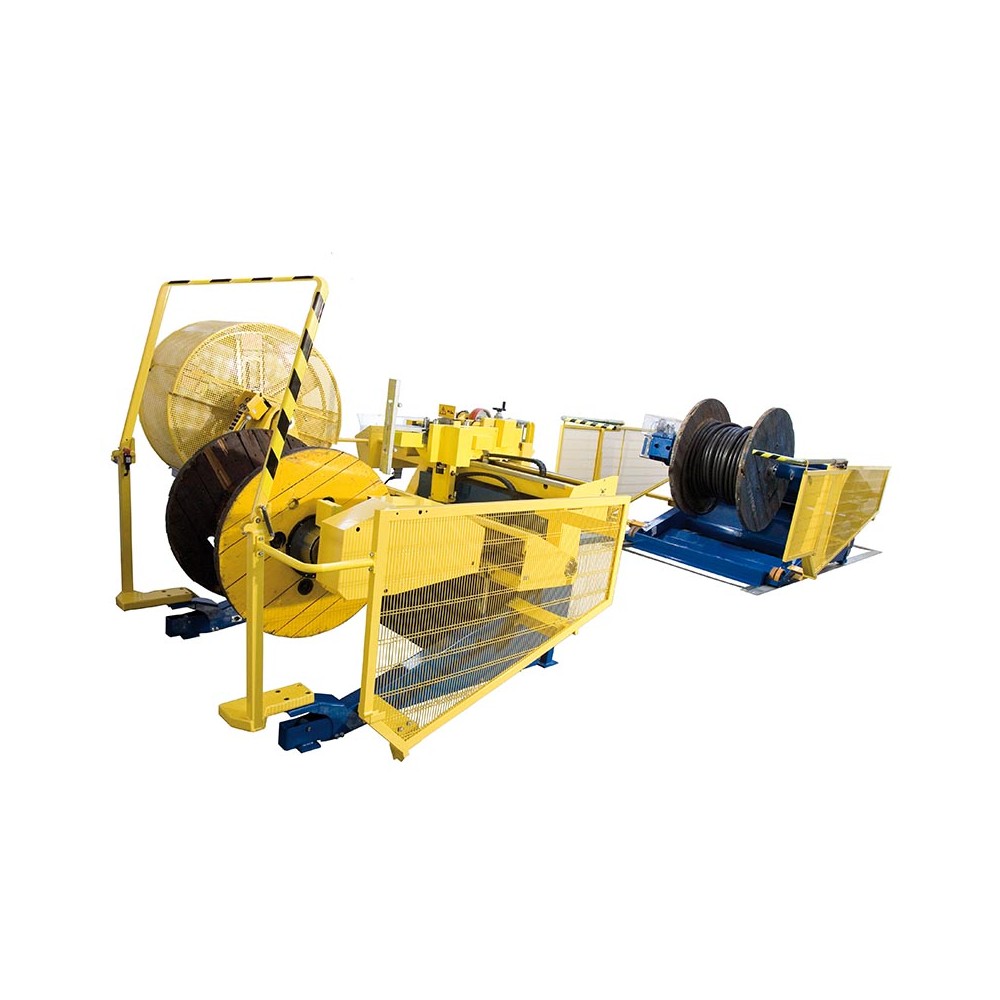

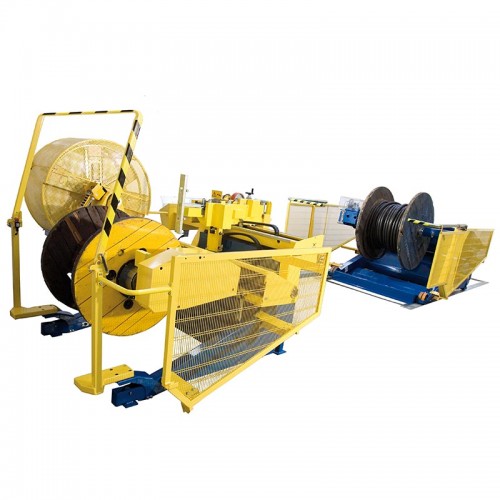

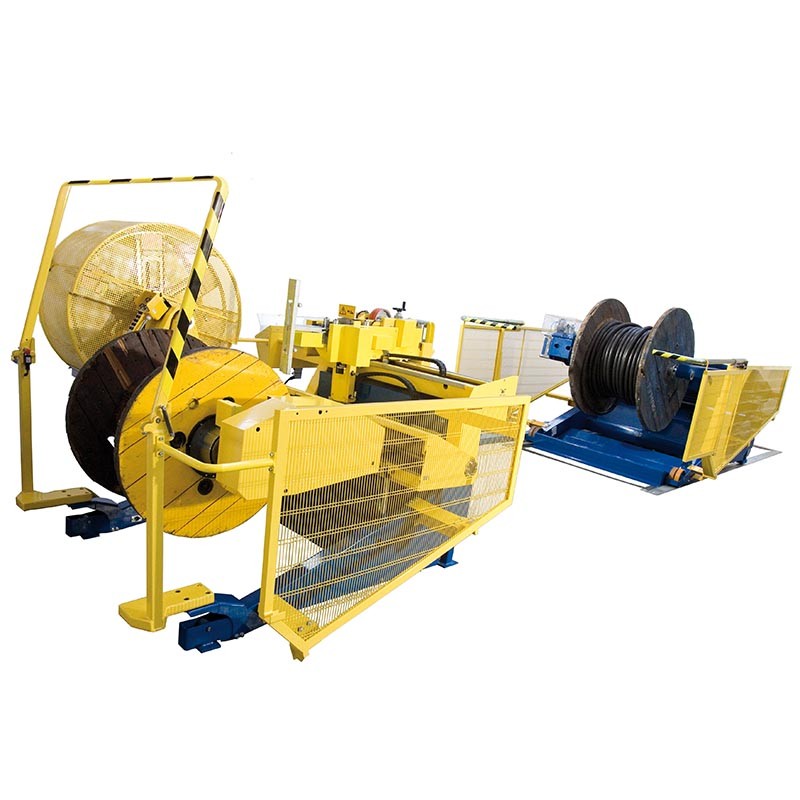

SEMIAUTOMATIC STATIONARY TAKE-UP/PAYOFF STATION LINAP-60/26-MP

  1. Mobile rail-mounted payoff
  2. Software for automatic processing cycle function interfacing between take-up and payoff
  3. Automatic tensioning with hydraulic brake
  4. Standard speed: 0-80 rpm
  5. Maximum torque 1506Nm
  6. Weight capacity 6000 kg
  7. Supply voltage 380 V (to be confirmed at order stage)
  8. Overall dimensions: Length 13600 mm Width 4600 mm
  9. Perimeter guarding to CE standards comprising fixed barriers and safety light curtains
  10. Rope for cable attachment and drawing on take-up.
  11. Approximate performance +30% compared to separate take-up and payoff
  12. The system is capable of performing the winding cycle automatically unattended.

PAYOFF AREA COMPRISING:

CD-40/BM2/SE1/BI

  1. SHAFTLESS drum payoff with INDEPENDENT ARMS - weight capacity 6000 kg - max. Ø 2600mm min. Ø 600mm – Width max. 1460mm
  2. Independent arms with separate opening and closing operation, for easier gripping of drums that are not centred with the payoff.
  3. Motor-driven arms
  4. Electro-hydraulic lifting
  5. Payoff runs on rails fastened to the floor.
  6. Pendant pushbutton station for controlling unit travel on wheels along rail
  7. Gearmotor-driven wheel
  8. Electro-hydraulic front parking jacks.
  9. Gearmotor unit for unwinding to attach cable on take-up and retrieve length of cable once the operation is done.
  10. Pendant pushbutton station for controlling cable attachment and retrieval.
  11. Hydraulic tensioning system, with software for controlling tension automatically based on cable diameter.
  12. Drum positioning cradle

TAKE-UP AREA COMPRISING:

CD-40/M3/BM2/SE-1/TC-1-100/OA10Q100-OM/PLC

  1. SHAFTLESS drum winder - weight capacity 6000 kg - max. Ø 2600mm min. Ø 600mm – Width max. 1460mm
  2. Machine controlled fully by highly reliable Schneider PLC.
  3. Electro-hydraulic lifting
  4. Dual winding drive consisting of two gearmotors, one installed on right arm and one on left arm.
  5. Winding motor power 3 kW each 4P 1400 rpm (3 kW x 2 = 6 kW in total) Reduction ratio 1:40
  6. Automatic grippers complete with drive bar (only use the drive bar in the event the grippers slip on the drum.
  7. Floor mounting brackets.
  8. Option of using take-up in full manual mode, disabling the on-board PLC, in the event of a problem with the automatic system.
  9. Numerical control of cable layering, the system features two front perpendicularity sensors that make up for lagging during reversing or layering trouble, speeding up or slowing down layering based on whether layering is too slow or too fast.
  10. Measuring meter with type approval from Meccanica Nicoletti srl for cable diameters 5-100 mm Tolerance for cable diameters 10-80 mm ±0.5% (PVC-coated round cables)
  11. Programmed ramp-up rate based on cable diameter with automatic maintenance of programmed speed (constant speed), this feature does away with the need to continuously correct speed as the drum core diameter increases during winding.
  12. Electronic encoder-based cable measuring system with counter reading given on control panel display.
  13. Automatic programmed ramp-down, with any inertia condition, to zero speed to avoid sudden braking at the end of the measurement for unbeatably accurate performance (avoids overrunning).
  14. No-cable and maximum-tension control resulting in machine stop, this feature makes the system 100% reliable and capable of operating unattended.
  15. Option of stopping machine operation at any time using the emergency stop pushbutton and resuming from the break-off point by releasing the emergency stop pushbutton.
  16. Operating logic is very simple and highly intuitive.
  17. System in place ready for interfacing the PLC with your management software for automatic downloading of the measurement taken and work list management.
  18. Automatic cable diameter measurement.

Technical data sheet

System width (mm) 4600 mm
System length (mm) 13600 mm
Drums- Max. weight capacity (kg) 6000 kg
Total power (kW) 15 KW
Power usage (kW) 10 KW
Min./max. rpm (rpm at drum) 0-80
Speed max. (m/min) 0-80 m/min
Max. winding torque (N/m) 1506 Nm
Size tolerance (±%) ±0,5%
Winder - Max. drum diameter (mm) 2600 mm
Winder - Max. drum width (mm) 1450 mm
Take-up unit - Max. arms opening 1540 mm
Winder - Min. drum diameter (mm) 800 mm
Winder - Min. drum diameter (mm) 400 mm
Payoff - Max. drum diameter (mm) 2600 mm
Payoff - Max. drum width (mm) 1450 mm
Pay-off unit - Max. arms opening 1540 mm
Payoff - Min. drum diameter (mm) 800 mm
Payoff - Min. drum diameter (mm) 400 mm

Accessories included

Art. PZA 300-15/80
Zoom

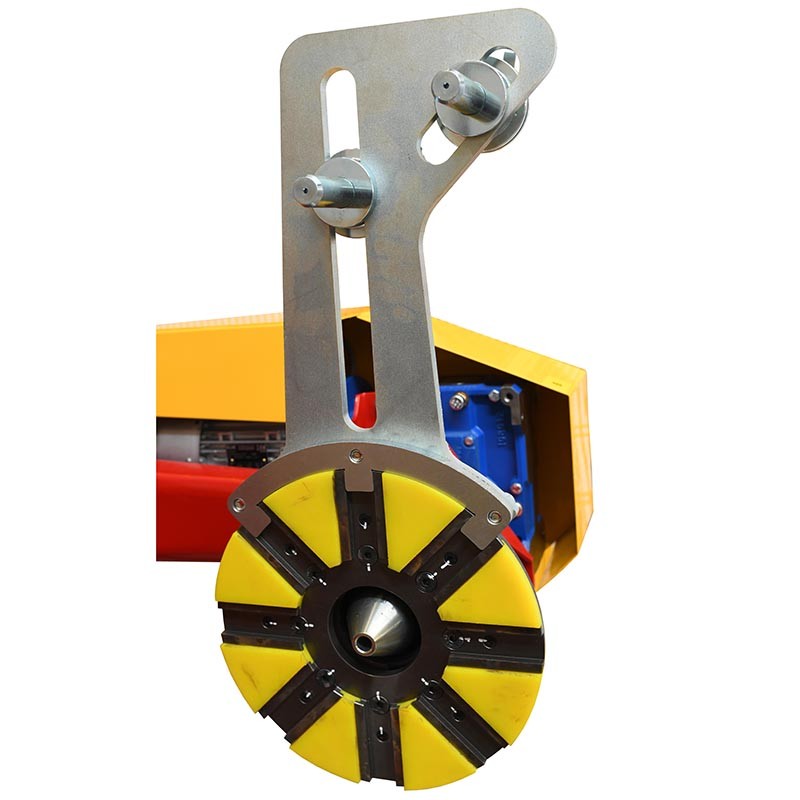

Item no. PZA300-22/40/130-A-LINAP

Payoff automatic grippers

DETAILS
Art. PZA 300-15/80
Zoom

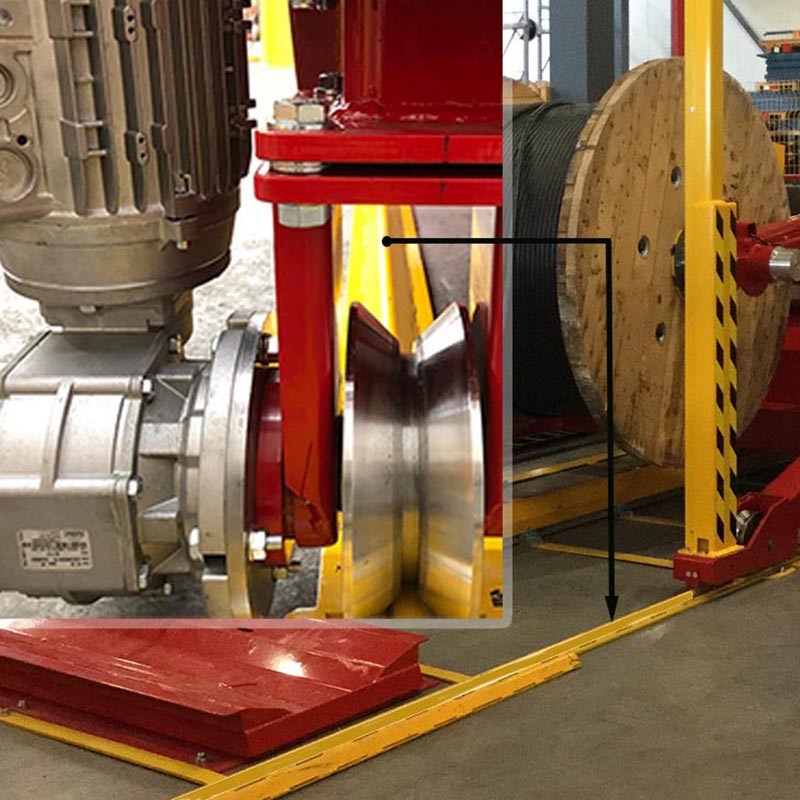

Item no. ER-CA/MR

Mover with motor-driven wheel

DETAILS
Art. PZA 300-15/80
Zoom
Item no. PLC-CD-LINAP

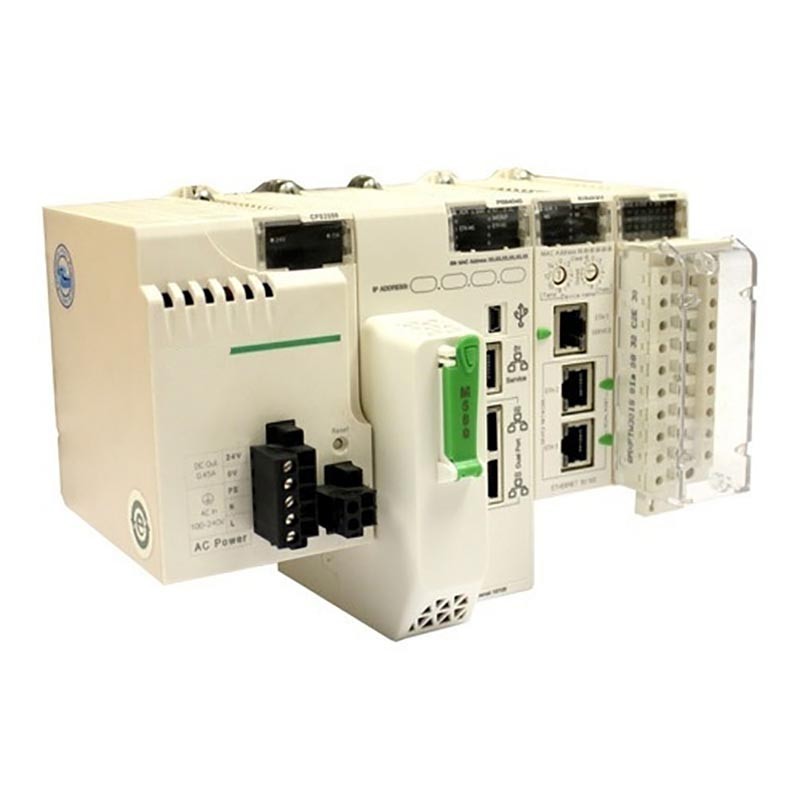

Personal computer for industrial applications

DETAILS
Art. PZA 300-15/80
Zoom

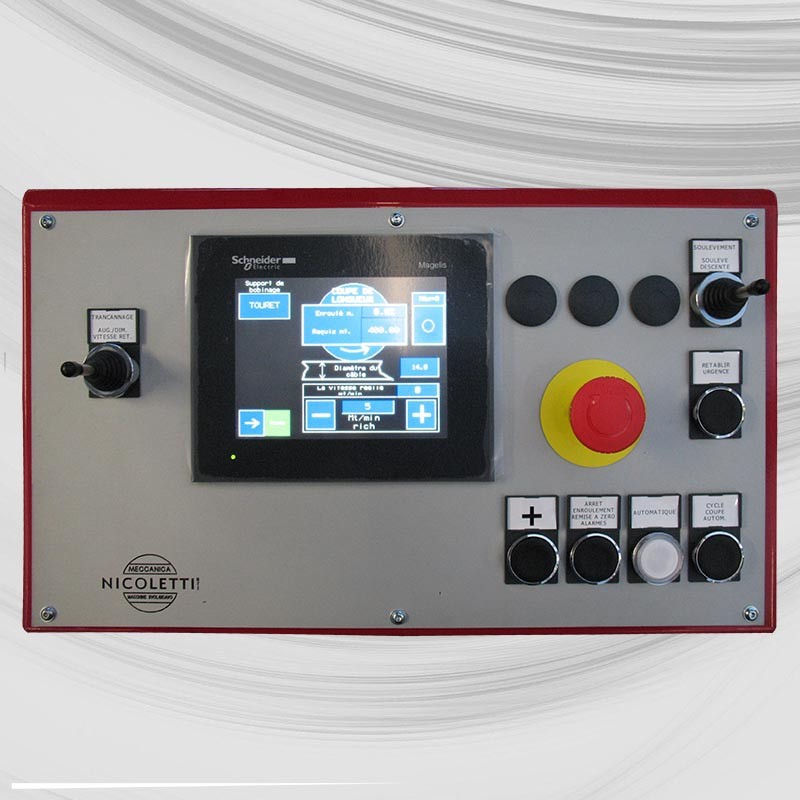

Item no. QCOM-LINAP

 LINAP control panel

DETAILS
Art. PZA 300-15/80
Zoom

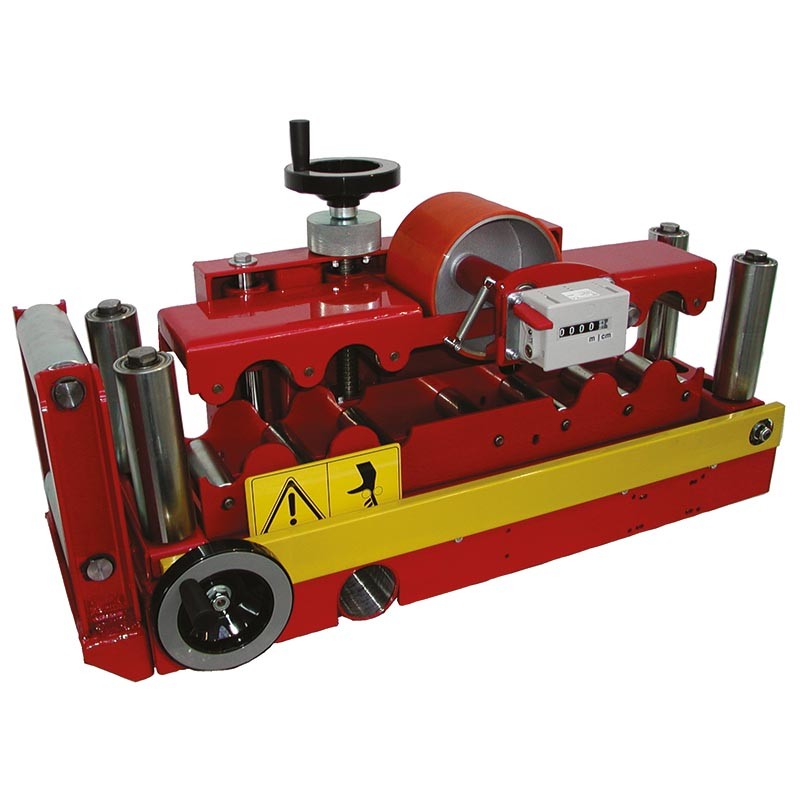

Item no. OA/10Q100/OM-LINAP

Precision measuring meter

DETAILS
Art. PZA 300-15/80
Zoom

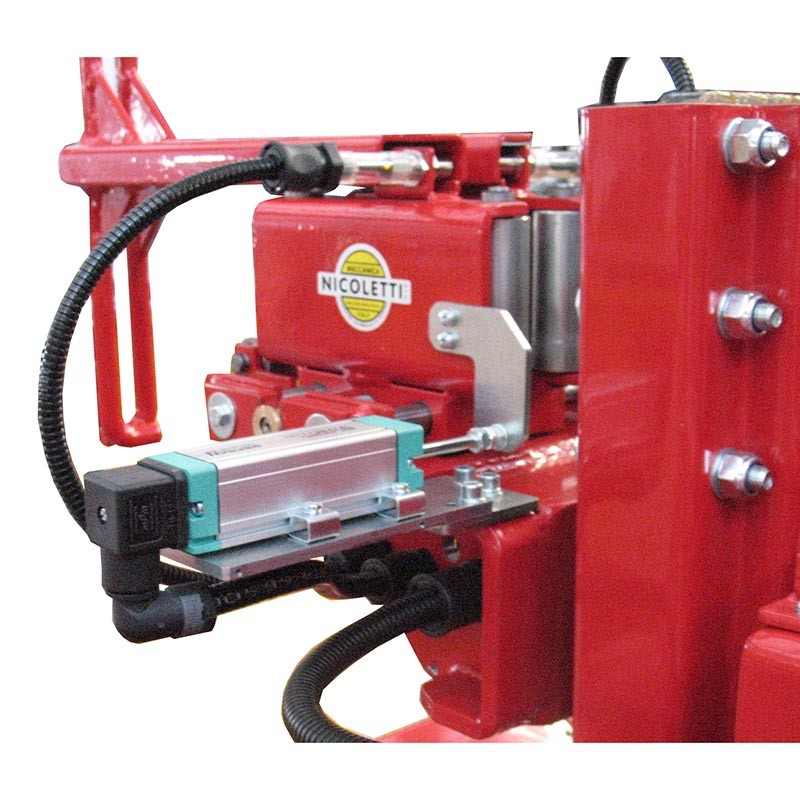

Item no. MA-LINAP

Automatic cable diameter measuring

DETAILS
Art. PZA 300-15/80
Zoom

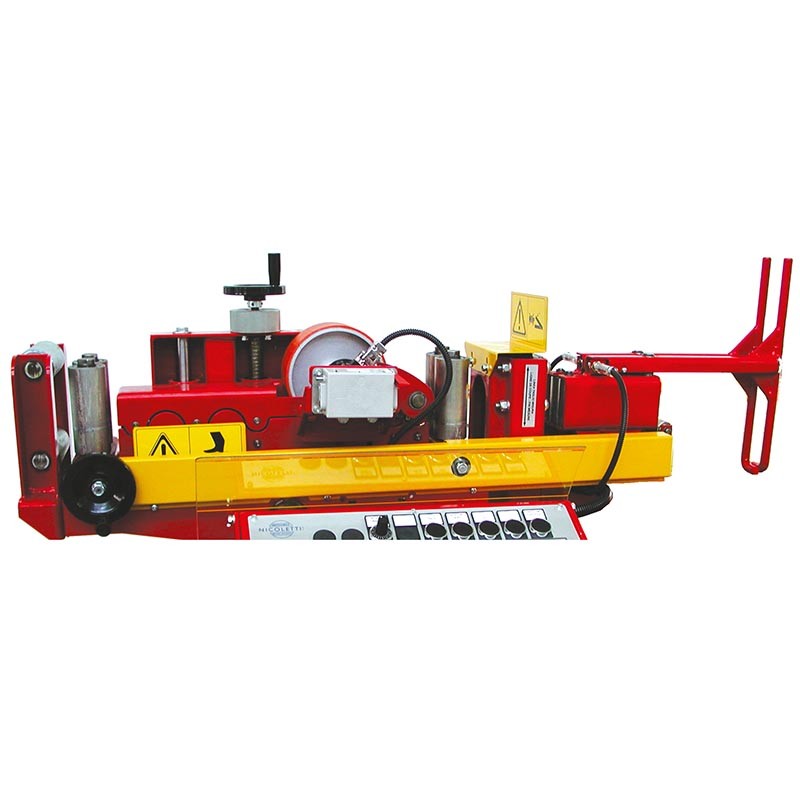

Item no. STRAT-PLC-LINAP

PLC-controlled AUTOMATIC layering

DETAILS
Art. PZA 300-15/80
Zoom
Item no. BM2-LINAP

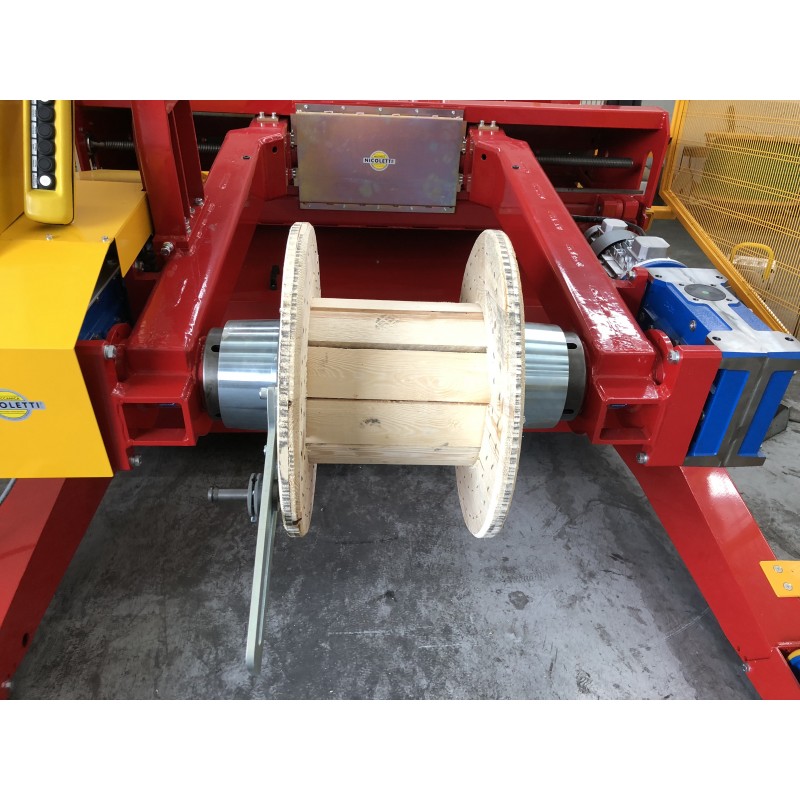

Take-up with self-centring arms

DETAILS
Art. PZA 300-15/80
Zoom

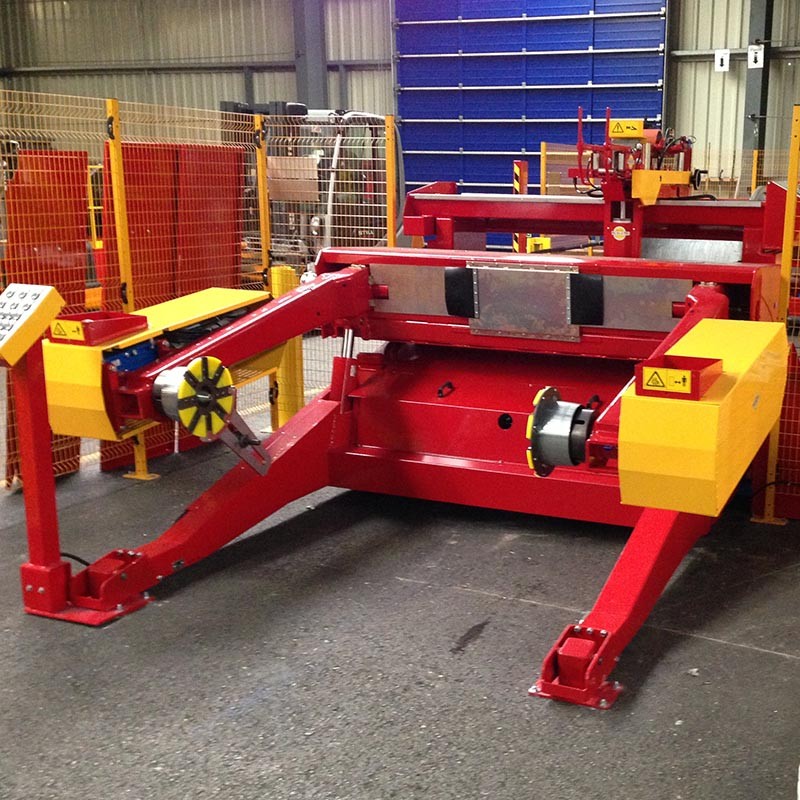

Item no. DOPP-MOT-LINAP

Dual drive motors

DETAILS
Art. PZA 300-15/80
Zoom
Item no. BI-40-LINAP

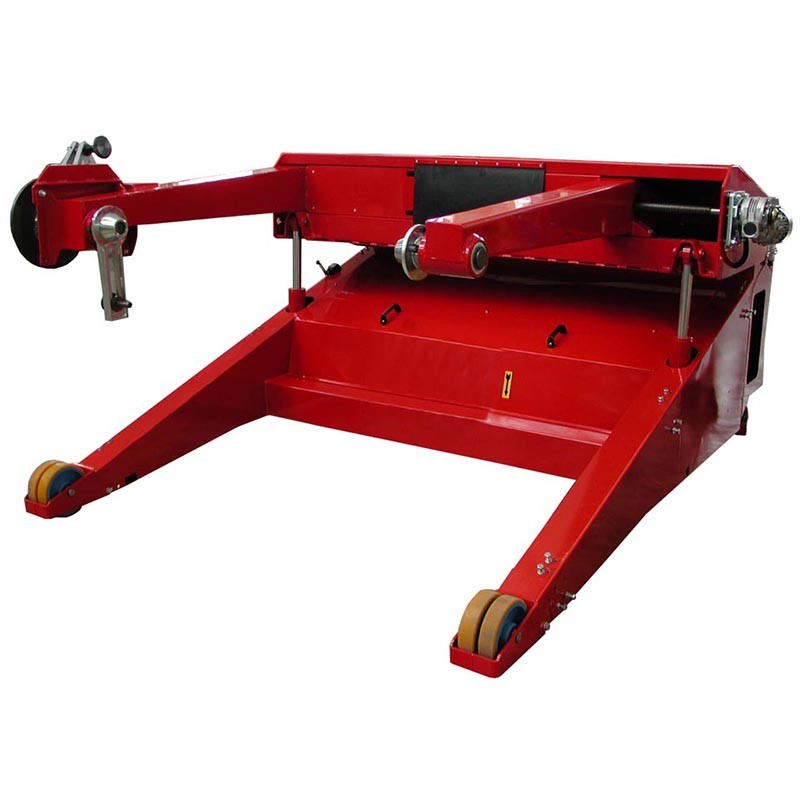

Payoff with independent arms

DETAILS
Art. PZA 300-15/80
Zoom

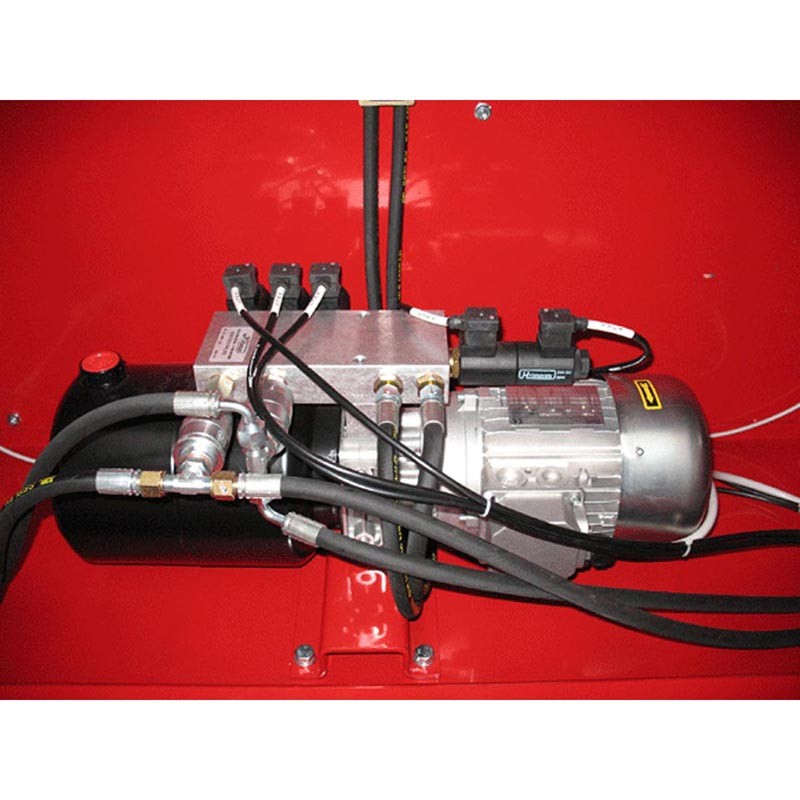

Item no. SE-ST-SV-LINAP

Electro-hydraulic lifting and jacks

DETAILS
Art. PZA 300-15/80
Zoom
Item no. TC-1-100-LINAP

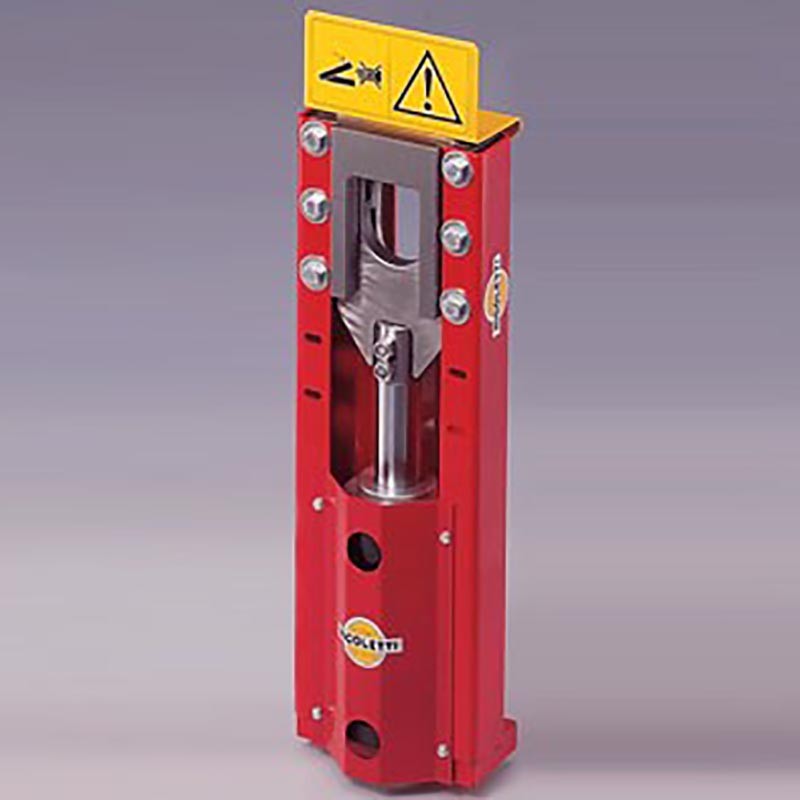

Shears for cables max. Ø 100mm

DETAILS
Art. PZA 300-15/80
Zoom

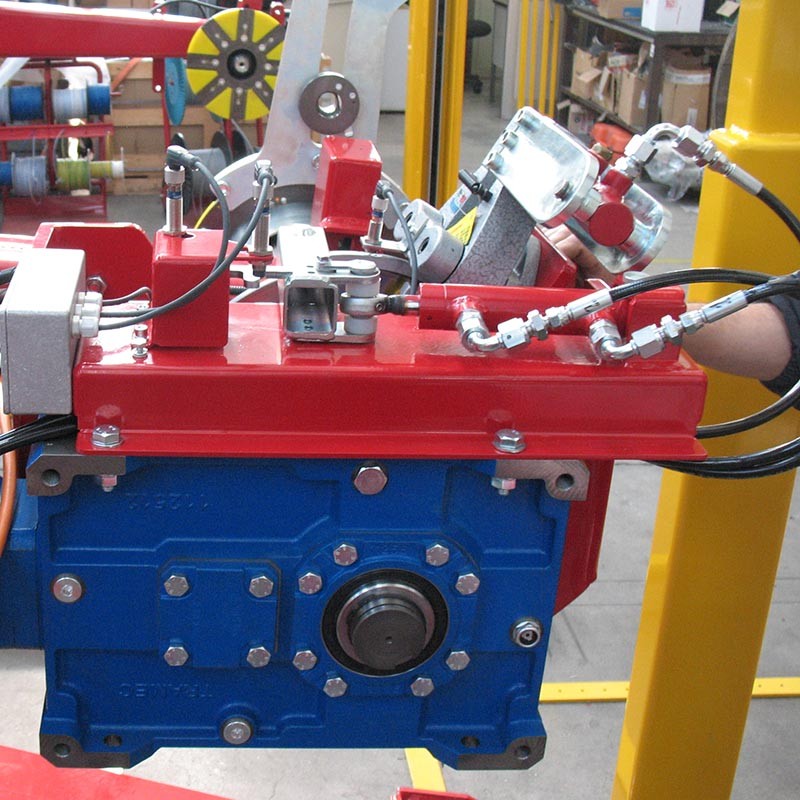

Item no. FR-350-OL-LINAP

Automatic hydraulic tensioning system

DETAILS
Art. PZA 300-15/80
Zoom

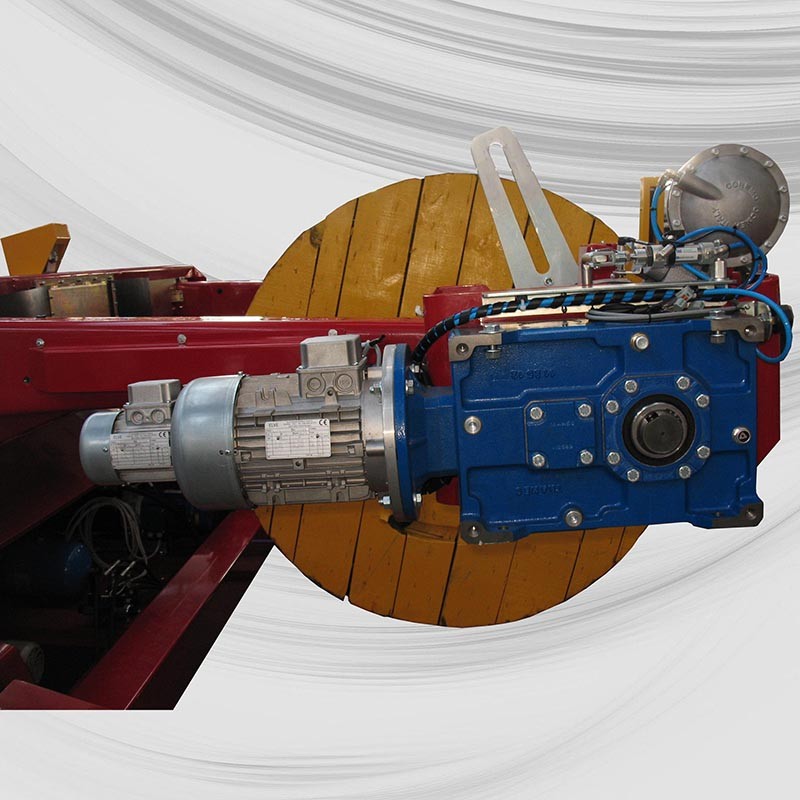

Item no. RC-LINAP

Cable retrieval following payoff

DETAILS
Art. PZA 300-15/80
Zoom
Item no. CU-SVO

Payoff drum cable

DETAILS
Art. PZA 300-15/80
Zoom

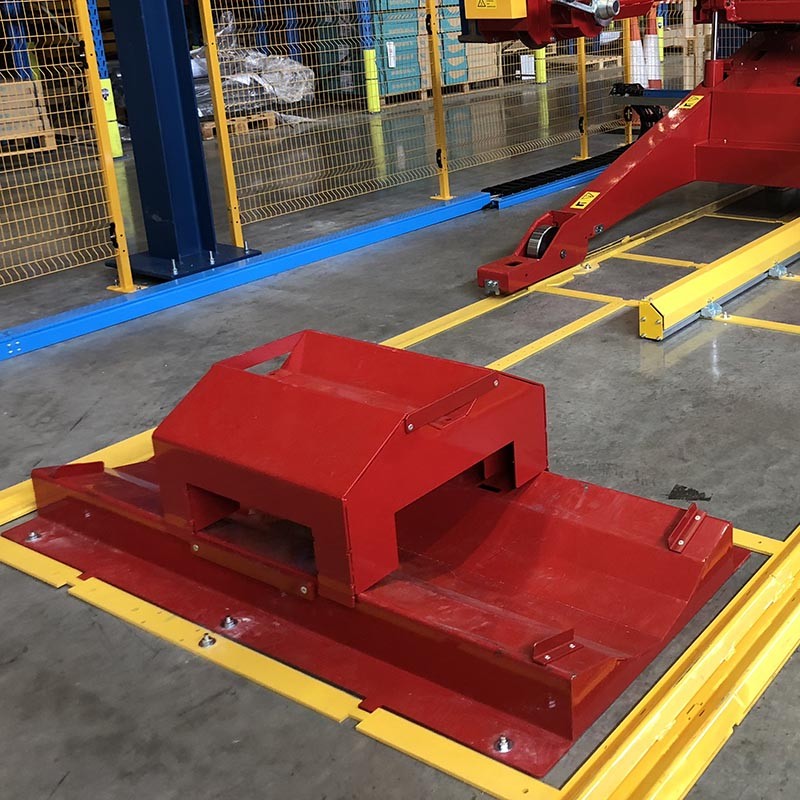

Item no. RIAL-CU-SVO

Payoff cradle raised adapter

DETAILS
Art. PZA 300-15/80
Zoom

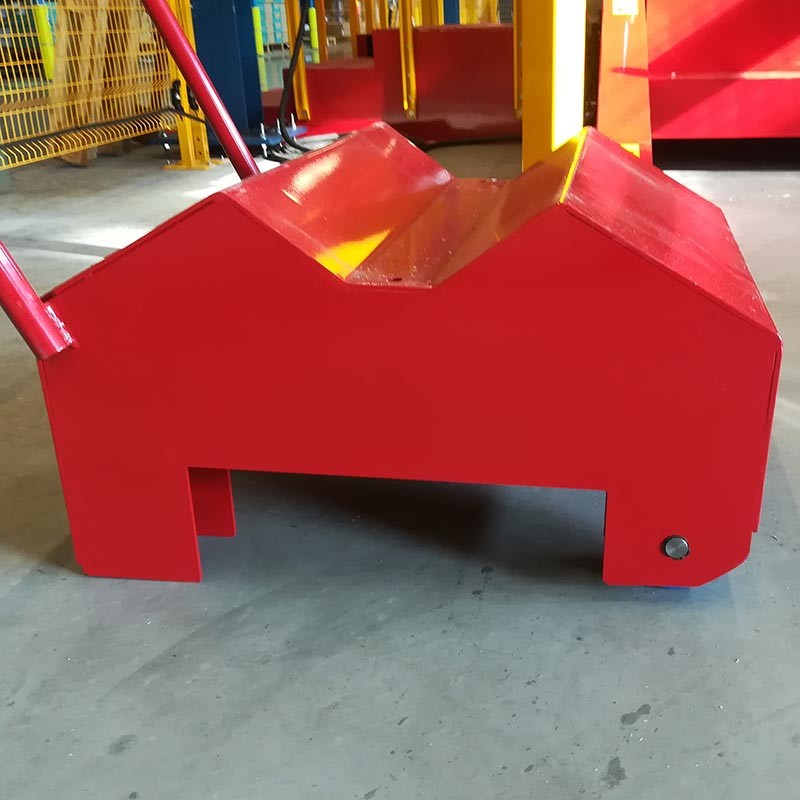

Item no. RIAL-CU-AVV

Take-up cradle raised adapter

DETAILS
Art. PZA 300-15/80
Zoom
Item no. TELEA-ET-LINAP

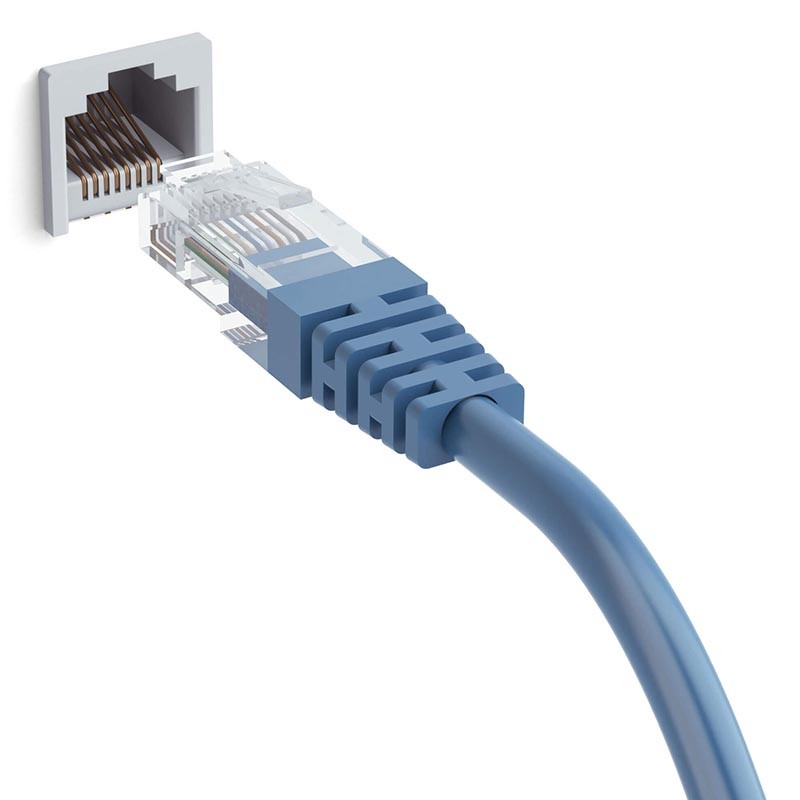

Remote support via Ethernet

DETAILS
Art. PZA 300-15/80
Zoom

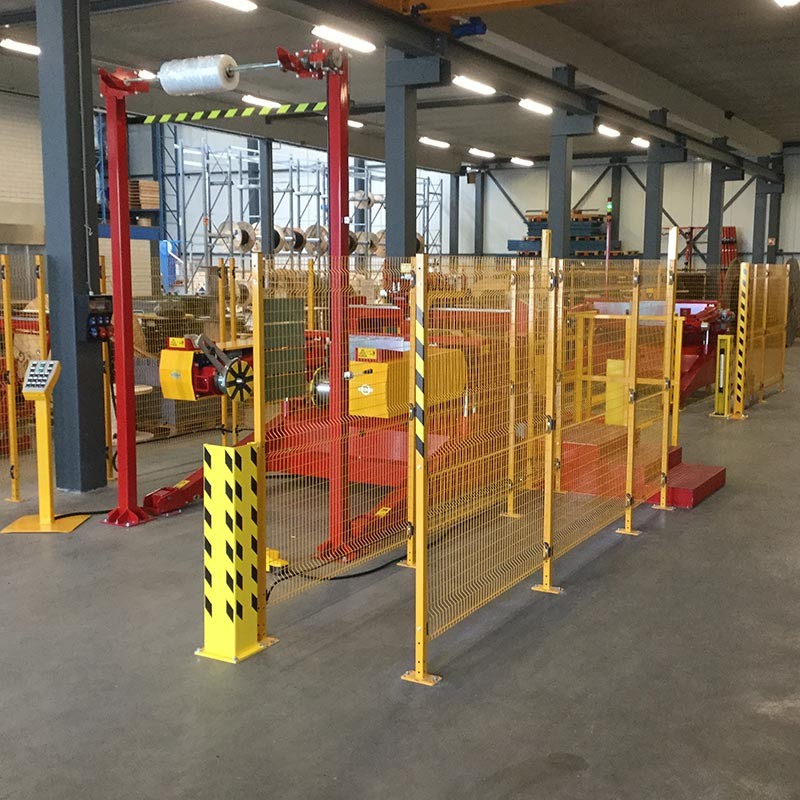

Item no. PROT-CE-LINAP

CE-approved safety guards

DETAILS
Zoom

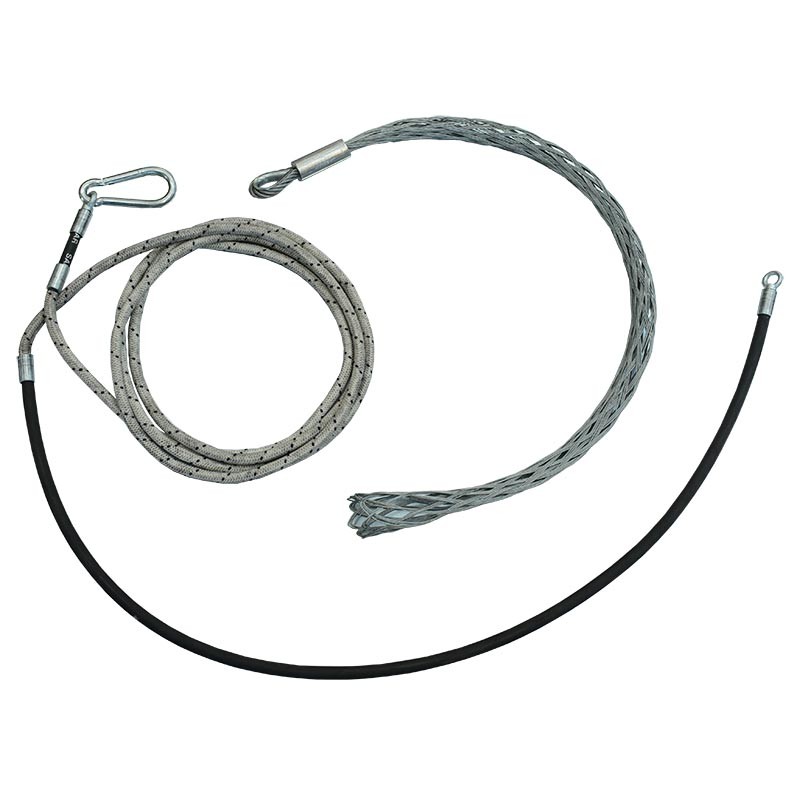

Item no. FUN-TRA

Draw rope for attaching cable

DETAILS
Request quote

Accessories on request

Zoom

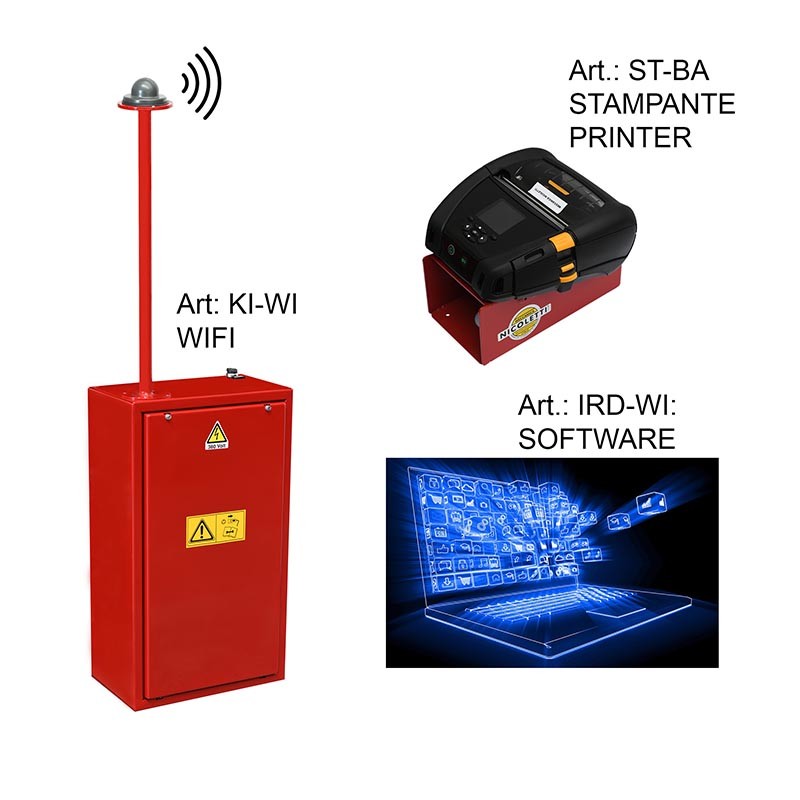

Item no. KIT-WI-LINAP

Kit for wireless data communication

ADD TO QUOTE
DETAILS
Art. PZA 300-15/80
Zoom

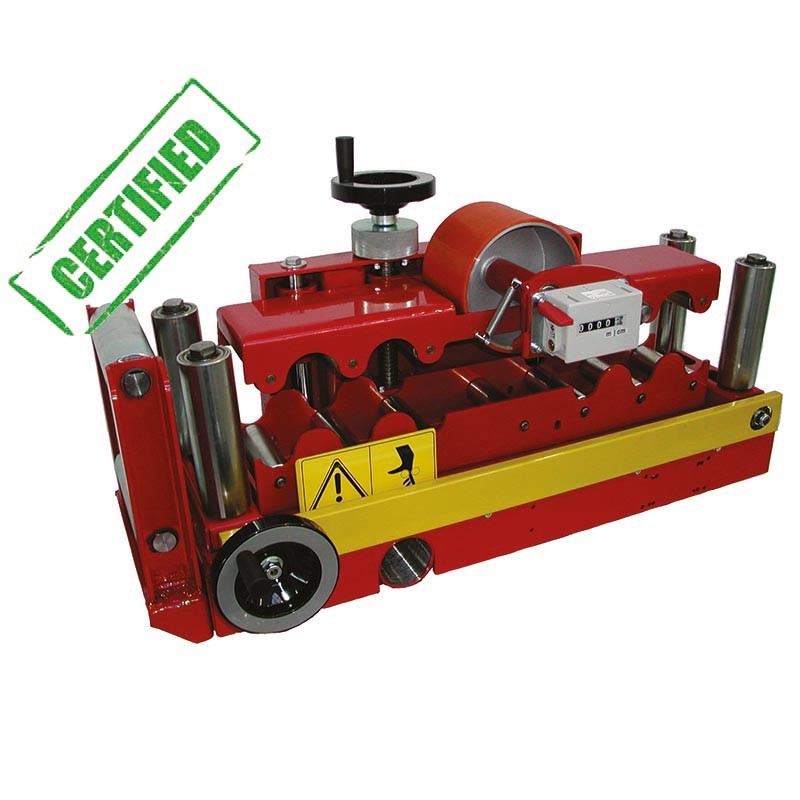

Item no. OA-10Q-100/OM/MID-LINAP

Electronic precision counter with display

MID EUROPEAN TYPE APPROVAL

ADD TO QUOTE
DETAILS
Art. PZA 300-15/80
Zoom

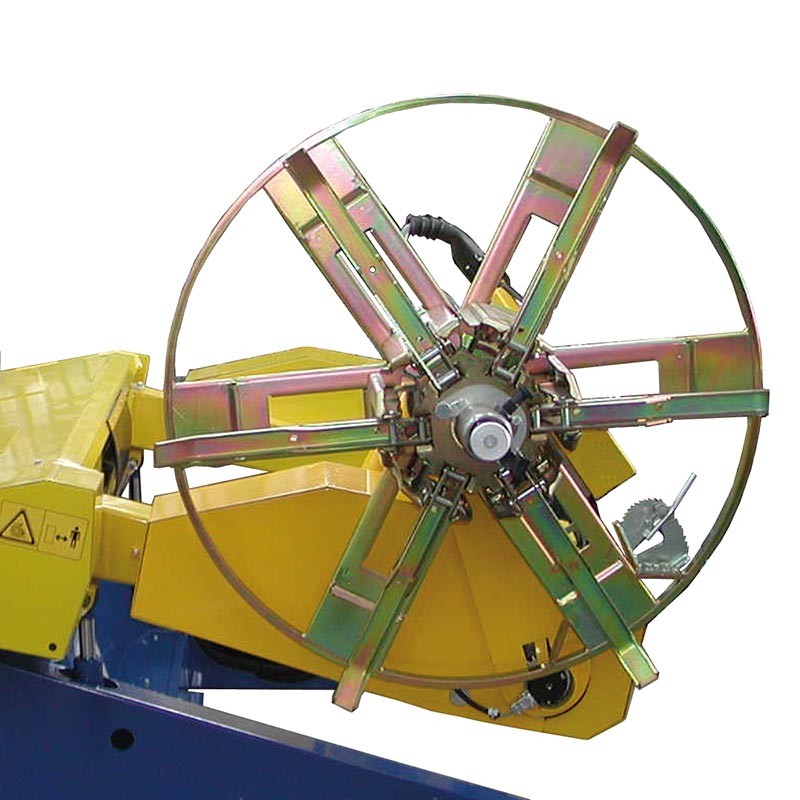

Item no. OE-22/40-B-R-10-LINAP

Coiling head on arm

ADD TO QUOTE
DETAILS
Art. PZA 300-15/80
Zoom
Item no. SW-INT-LINAP

Interfacing software

ADD TO QUOTE
DETAILS
