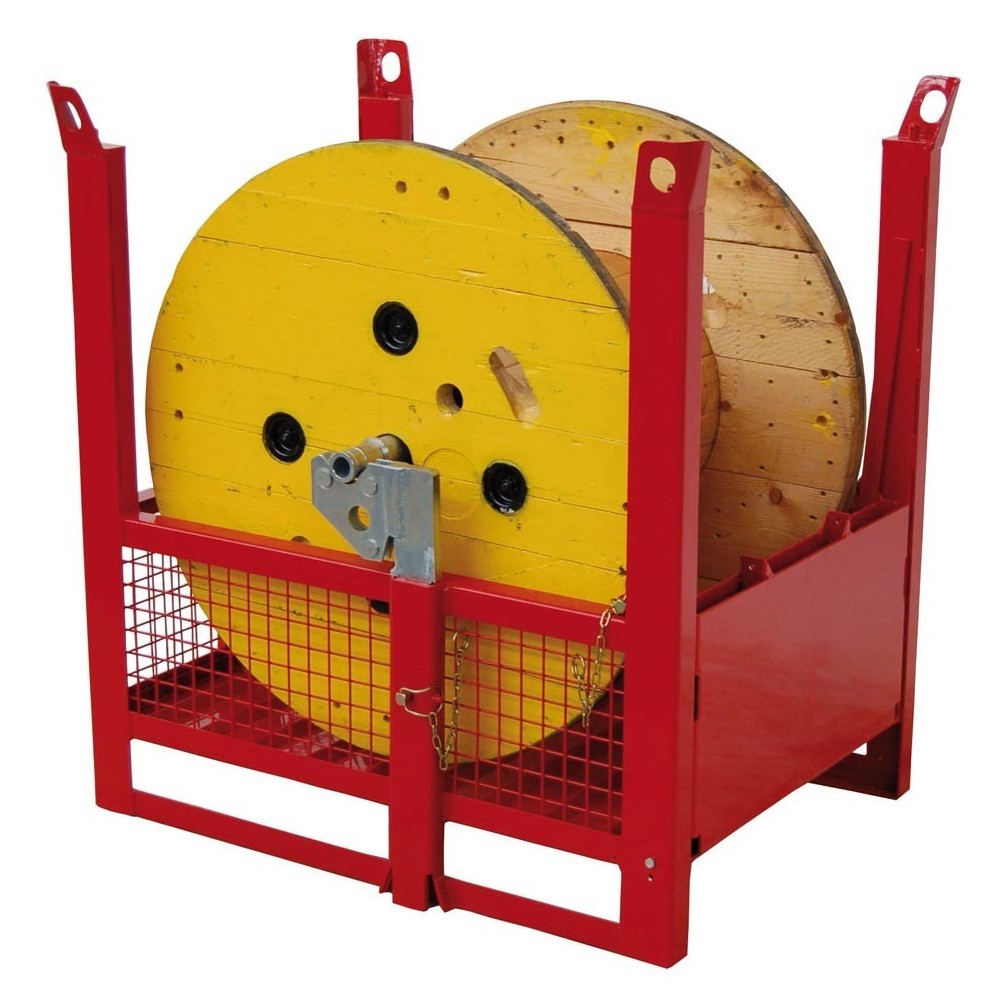

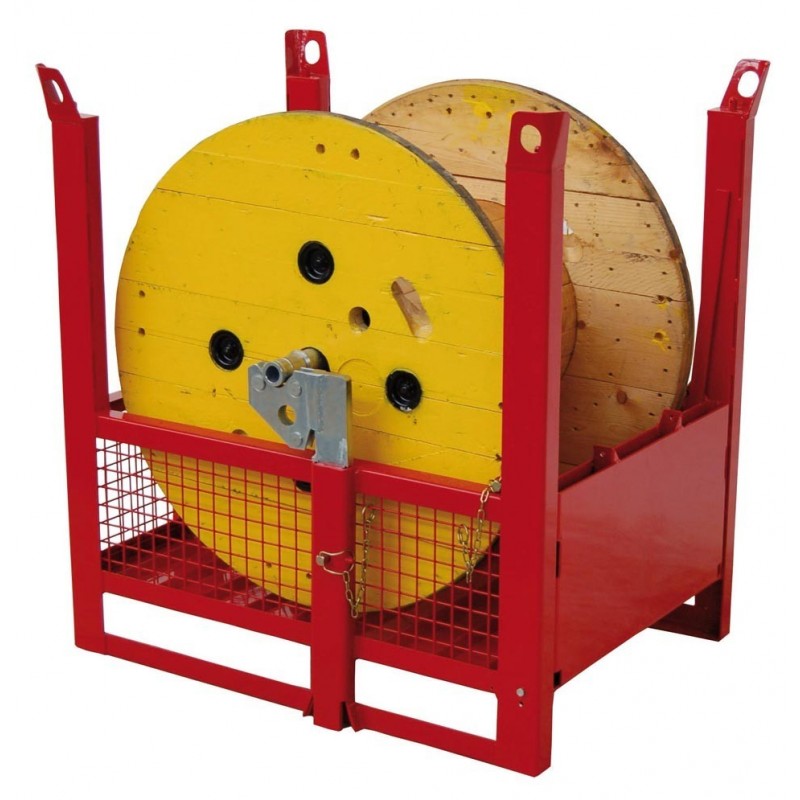

Item no. CONBOB14 - Stackable drum payoff cage Mainly for industrial use and for cable laying

Item no. CONBOB14 - Stackable drum payoff cage
Zoom

CONBOB14

Change performance choice >
Watch video

Features

  • Drum payoff cage.
  • Galvanized steel structure.
  • Handling options:
    • Crane.
    • Lift truck.
    • Pallet truck
  • Designed to be stacked up to four tiers high, always ready for payoff.
  • Can be transported by truck, in two rows unstacked, always ready for payoff, even directly from the truck bed.
  • Runs on radial ball bearings

Technical data sheet

Height (mm) 1770 mm
Width (mm) 1155 mm
Length (mm) 1675 mm
Empty weight (kg) 230 kg
Drums - maximum diameter (mm) 1400 mm
Drums - Maximum width (mm) 930mm
Power 2000 kg
Minimum bore diameter (mm) 82 mm
Request quote

Accessories on request
