| Machine height (mm) | 1800 mm |
| Machine width (mm) | 2990 mm |
| Machine length (mm) | 3500 mm |
| Length with guards on (mm) | 4380 mm |
| Empty weight (kg) | 1700 kg |
| Drums - maximum diameter (mm) | 2600 mm |
| Drums - minimum diameter (mm) | 800 mm |
We inform our customers that our offices will be closed from 21.12.2024 to 06.01.2025. The technical teams for urgent maintenance of the equipments will stay available for you
Product added to your cart
Quantity:
Total:
There are 0 items in your cart.
Your cart contains an item.
Product total
(Tax excluded)
Shipping total (Tax excluded)
To be determined
Total
(Tax excluded)

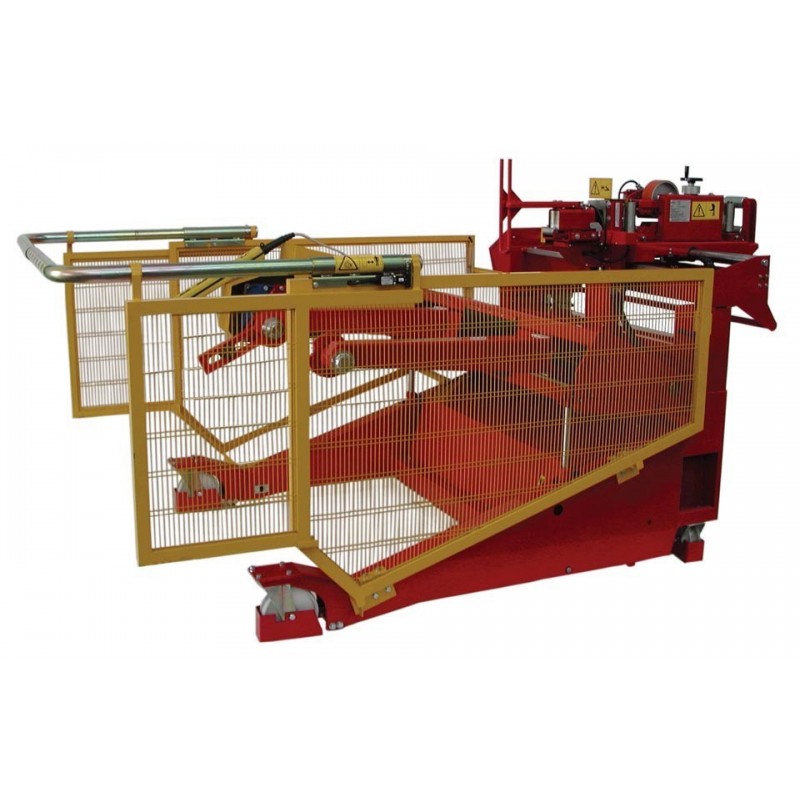

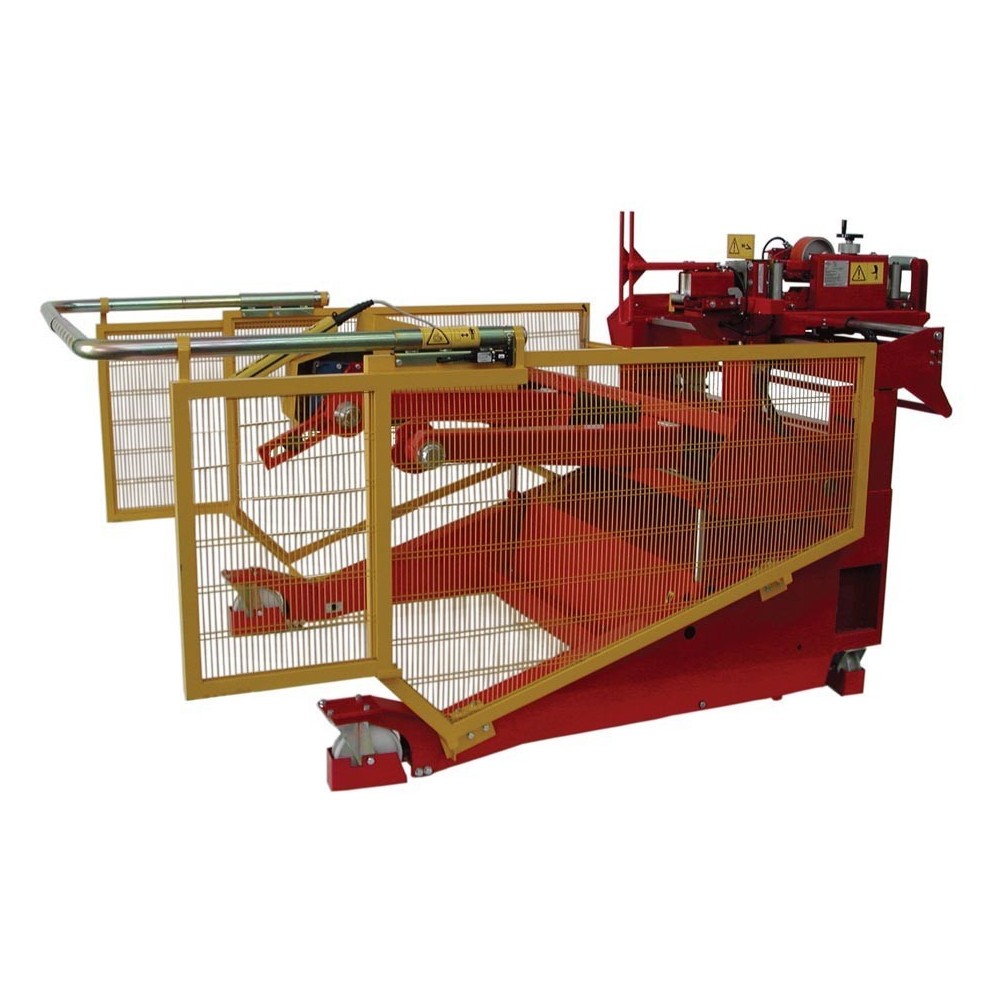

ITEM NO. CD-40/M3/BM - Weight capacity 6000 kg - Drums min. Ø 800mm max. Ø 2600mm MEDIUM PERFORMANCE - 20-30 operations a day on average
CD-40-M3-BM2/SP08-00/SE1/TC1-100/SE-ST/OA10Q100/OE-B
Technical data sheet
| Drums - Maximum width (mm) | 1450 mm |
| Max. arms opening | 1540 mm |
| Drums - Minimum width (mm) | 490 mm |
| Drums- Max. weight capacity (kg) | 6000 kg |
| Total power (kW) | 6.5 KW |
| Torque | 1470 Nm |
| Machine movement speed | 4 km/h |
| Min./max. rpm (rpm at drum) | 0-50 g/min |
Accessories included
Item no. OA/10Q100
Cable measuring device
DETAILS
Item no. SP-08/00
Automatic layering device
DETAILS
Item no. NE-218
Electronic programmer/counter
DETAILS

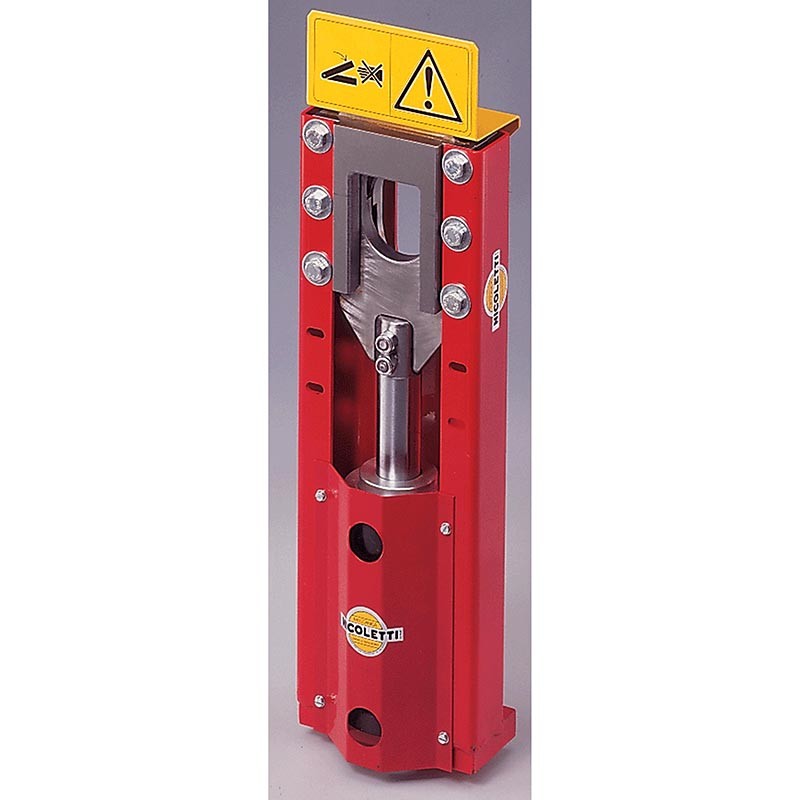

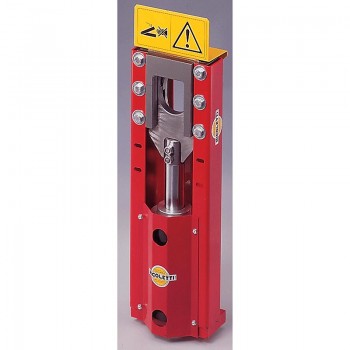

Item no. TC-1-100-SE-ST
Electro-hydraulic shears
DETAILS
Item no. OE-B-40
Coiling head
DETAILS
Accessories on request
Item no. KIT-WI
Kit for wireless data communication
ADD TO QUOTE
DETAILS
Item no. RIL-MOVE-2
Motion detector
ADD TO QUOTE
DETAILS
Item no. SP-08/01-S
Automatic layering device
ADD TO QUOTE
DETAILS

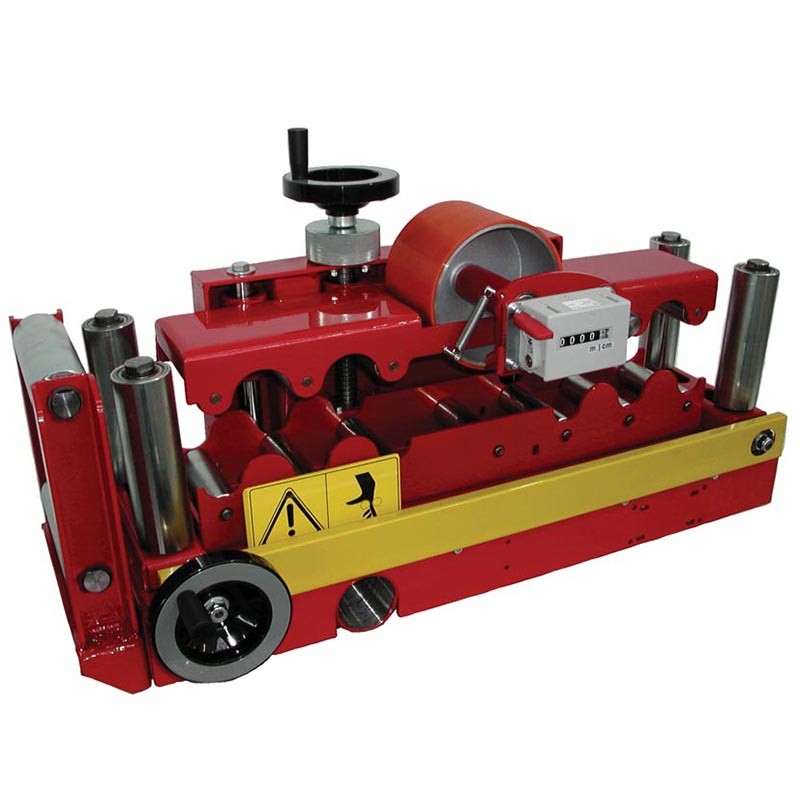

Item no. OA/10Q100/OM/N/I-S
Manual precision counter with display
ADD TO QUOTE
DETAILS

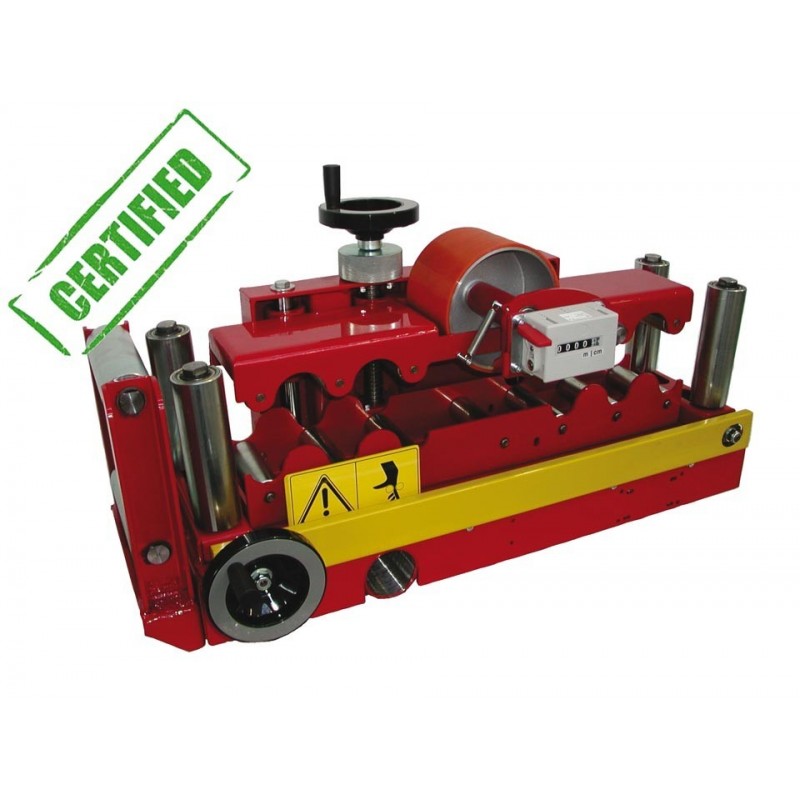

Item no. OA/10Q100/OM/MID-SN
Electronic precision counter with display
MID EUROPEAN TYPE APPROVAL
ADD TO QUOTE
DETAILS
Item: Openable meter counter - OA10Q100OM-APRI
Openable meter counter
ADD TO QUOTE
DETAILS
Item no. VSFC0011/CD40 - Torque control
Torque control
ADD TO QUOTE
DETAILS

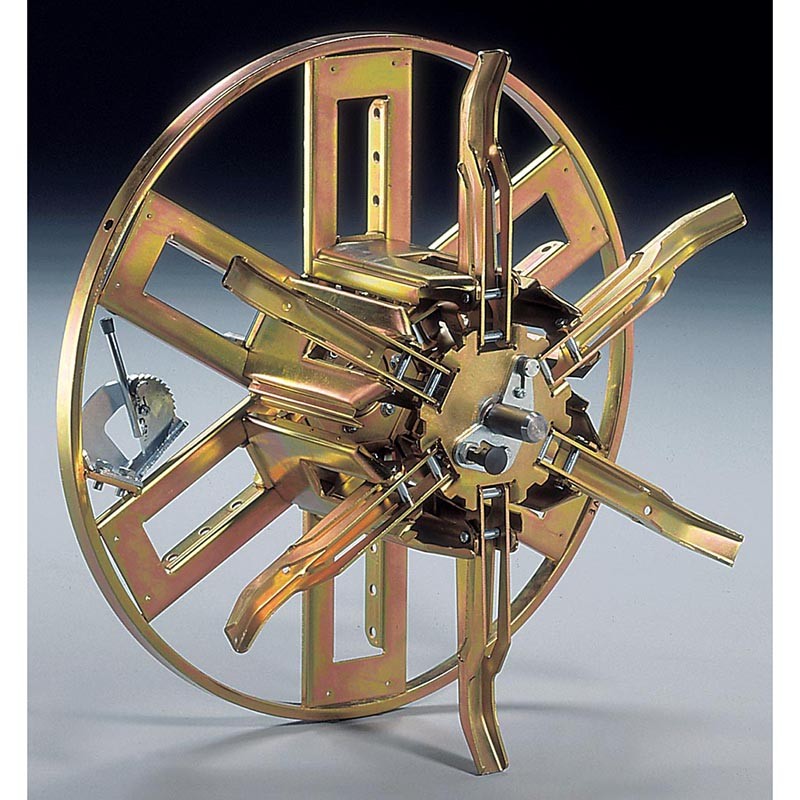

Item no. OE-40-B-R-10
Collapsible coiling head
ADD TO QUOTE
DETAILS
Item no. ERCA-PV
FOR MOVING THE UNIT WHEN EMPTY
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATF-PV-CD22/40
Front fitting for ERCA empty
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PV
ADD TO QUOTE
DETAILS
Item no. ERCA-PC
FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATF-PC-CD22/40
Front fitting for ERCA loaded
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PC
Battery for moving machine independently when loaded
ADD TO QUOTE
DETAILS
Item no. BA-CD22/40/24/250
Battery-powered power supply for running machines fully independent from 220-380V mains
ADD TO QUOTE
DETAILS
Item no. COL-LANE-1
Slip ring overhead cable connection
ADD TO QUOTE
DETAILS
Item no. FUN-TRA
Draw rope for attaching cable
ADD TO QUOTE
DETAILS
Item no. TC-BA-30
Battery-powered cable cutters
ADD TO QUOTE
DETAILS
Item no. CHIOD50-BAT
Battery-powered nail gun
ADD TO QUOTE
DETAILS
