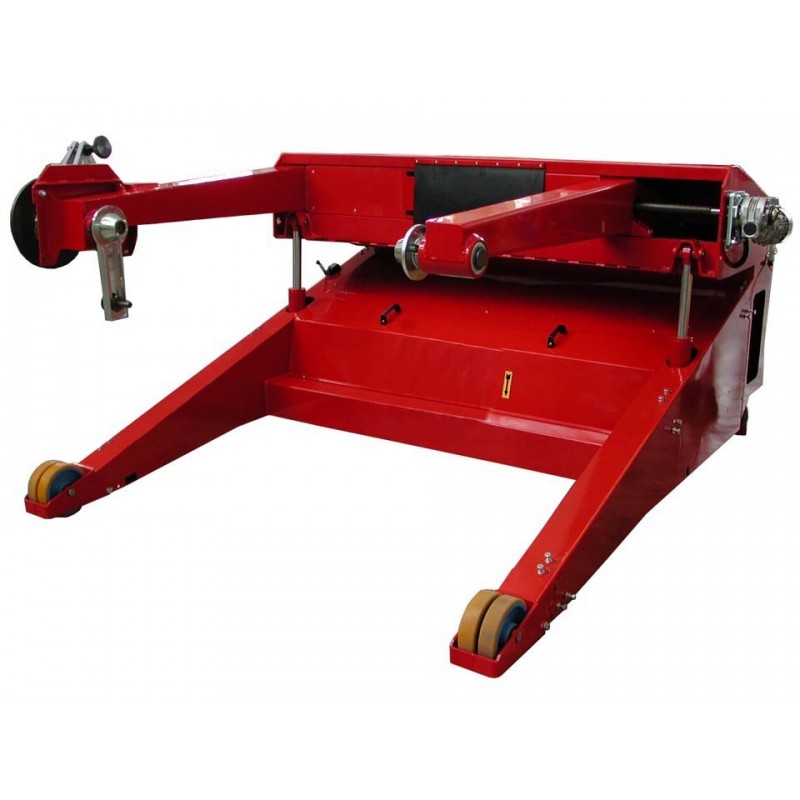

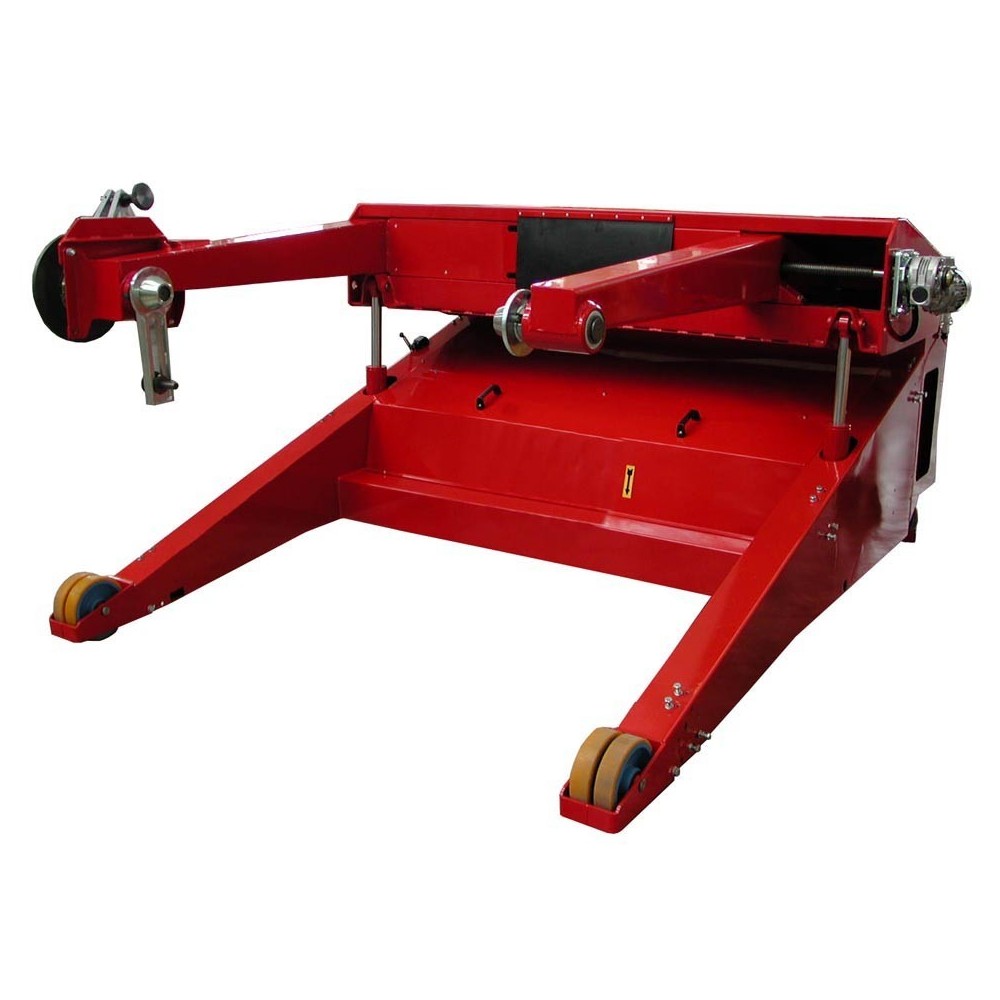

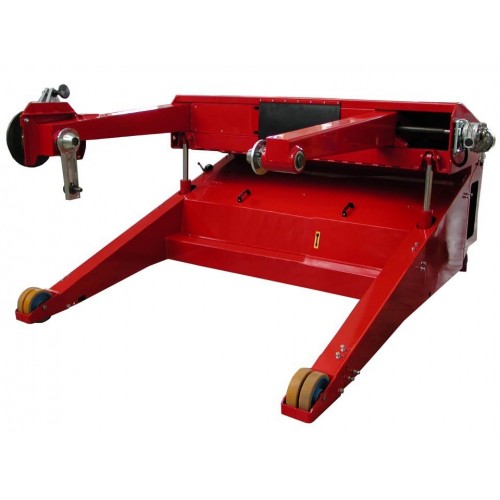

ITEM NO. CD-40/BM - Weight capacity 6000 kg - Drums min. Ø 800mm max. Ø 2600mm MEDIUM PERFORMANCE - 20-30 operations a day on average

ITEM NO. CD-40/BM - Weight capacity 6000 kg - Drums min. Ø 800mm max. Ø 2600mm
Zoom

CD-40-BM2/SE1/ST-EL/BI/FM-1-350

Change performance choice >
Watch video

Features

  • Independent arms with separate opening and closing operation, motor driven.
  • Electro-hydraulic lifting.
  • VULKOLLAN wheels. (two wheels and two castors).
  • Electro-hydraulic front parking jacks.
  • CE-approved safety guards fitted for protection.
  • Supply voltage 380 V (to be confirmed at order stage)

Technical data sheet

Machine height (mm) 1400 mm
Machine width (mm) 2720 mm
Machine length (mm) 3080 mm
Length with guards on (mm) 3700 mm
Empty weight (kg) 1300 kg
Drums - maximum diameter (mm) 2600 mm
Drums - minimum diameter (mm) 800 mm
Drums - Maximum width (mm) 1450 mm
Max. arms opening 1540 mm
Drums - Minimum width (mm) 490 mm
Drums- Max. weight capacity (kg) 6000 kg
Total power (kW) 3.87 KW
Machine movement speed 4 km/h

Accessories included

Zoom
Item no. FM-1-350

Disc brake

DETAILS
Zoom
Item no. BI-40

Independent arms

DETAILS
Zoom
Item no. SE-ST-SV

Lifting power pack jacks

DETAILS
Zoom
Item no. T

380 Volt three-phase power supply

DETAILS
Request quote

Accessories on request

Zoom
Item no. PZA300-22/40/130

Automatic grippers

ADD TO QUOTE
DETAILS
Zoom
Item no. ERCA-PV

FOR MOVING THE UNIT WHEN EMPTY

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Art. ER-CA-22-40
Zoom
Item no. ATF-PV-CD22/40

Front fitting for ERCA empty

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-ERCA-PV
ADD TO QUOTE
DETAILS
Zoom
Item no. ERCA-PC

FOR MOVING THE UNIT WHEN LOADED

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Zoom
Item no. ATF-PC-CD22/40

Front fitting for ERCA loaded

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-ERCA-PC

Battery for moving machine independently when loaded

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-CD22/40/24/250

Battery-powered power supply for running machines fully independent from 220-380V mains

ADD TO QUOTE
DETAILS
Zoom
Item no. TC-BA-30

Battery-powered cable cutters

ADD TO QUOTE
DETAILS
Request quote
