| Machine height (mm) | 1700 mm |
| Machine width (mm) | 2990 mm |
| Length with guards on (mm) | 4200 mm |
| Empty weight (kg) | 1600 kg |
| Drums - maximum diameter (mm) | 2200 mm |
| Drums - minimum diameter (mm) | 800 mm |
| Max. arms opening | 1540 mm |
We inform our customers that our offices will be closed from 21.12.2024 to 06.01.2025. The technical teams for urgent maintenance of the equipments will stay available for you
Product added to your cart
Quantity:
Total:
There are 0 items in your cart.
Your cart contains an item.
Product total
(Tax excluded)
Shipping total (Tax excluded)
To be determined
Total
(Tax excluded)

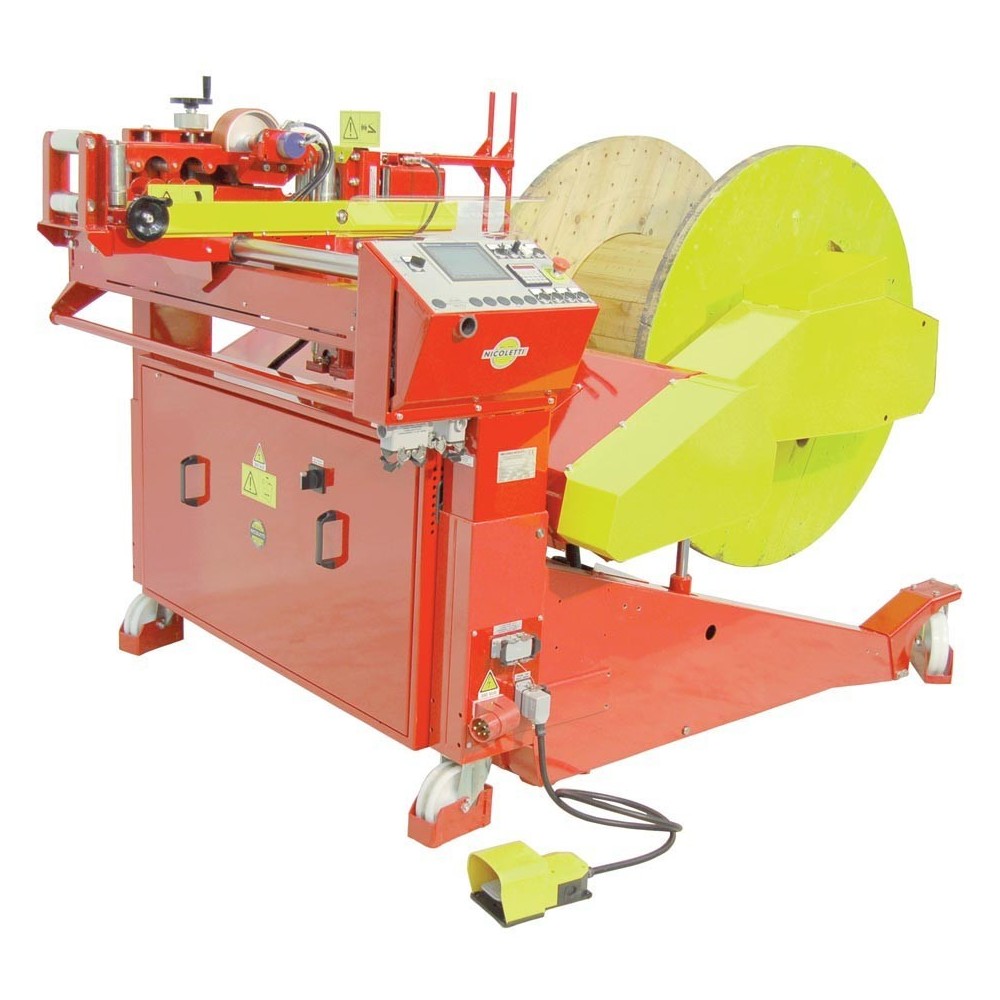

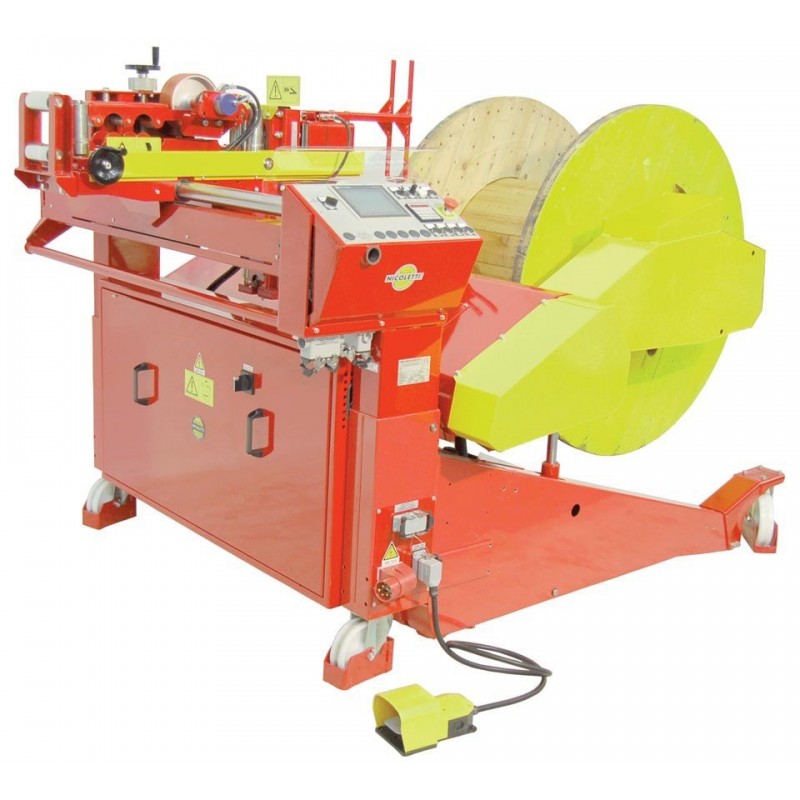

CD-22/M3/BM - Weight capacity 4000 kg - Drums min. Ø 800mm max. Ø 2200mm HIGH PERFORMANCE - More than 30-40 operations a day on average
CD-22-M3-BM2/PLC/SE1/TC1-60/SE-ST/OA10Q60-OM/OE-B/RIL-MOVE
Technical data sheet
| Drums - Maximum width (mm) | 1450 mm |
| Drums - Minimum width (mm) | 490 mm |
| Drums- Max. weight capacity (kg) | 4000 kg |
| Total power (kW) | 6.5 KW |
| Torque | 843 Nm |
| Machine movement speed | 4 km/h |
| Min./max. rpm (rpm at drum) | 0-70 g/min |
Accessories included
Item no. PLC-CD
Personal computer for industrial applications
DETAILS
Item no. RIL-MOVE-2
Motion detector
DETAILS
Item no. OA/10Q/60/OM/N/I
Mechanical precision counter with display
DETAILS
Item no. TC-1-60-SE-ST
Shears for cables max. Ø 60mm
DETAILS
Item no. OE-B-22
Coiling head
DETAILS
Accessories on request
Item no. KIT-WI-241
Kit for wireless data communication
ADD TO QUOTE
DETAILS
Item no. PZA300-22/40/130
Automatic grippers
ADD TO QUOTE
DETAILS
Item no. MA
Automatic cable diameter measuring
ADD TO QUOTE
DETAILS
Item no. OE-22-B-R-10
Collapsible coiling head
ADD TO QUOTE
DETAILS
Item no. OA/10Q60/OM/MID-SO
Electronic precision counter with display
MID EUROPEAN TYPE APPROVAL
ADD TO QUOTE
DETAILS
Item: Openable meter counter - OA10Q60OM-APRI
Openable meter counter
ADD TO QUOTE
DETAILS
Item no. VSFC0011/CD22 - Torque control
Torque control
ADD TO QUOTE
DETAILS
Item no. ERCA-PV
FOR MOVING THE UNIT WHEN EMPTY
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATF-PV-CD22/40
Front fitting for ERCA empty
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PV
ADD TO QUOTE
DETAILS
Item no. ERCA-PC
FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATF-PC-CD22/40
Front fitting for ERCA loaded
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PC
Battery for moving machine independently when loaded
ADD TO QUOTE
DETAILS
Item no. BA-CD22/40/24/250
Battery-powered power supply for running machines fully independent from 220-380V mains
ADD TO QUOTE
DETAILS
Item no. TELEA-ET
Remote support via Ethernet
ADD TO QUOTE
DETAILS
Item no. COL-LANE-1
Slip ring overhead cable connection
ADD TO QUOTE
DETAILS
Item no. FUN-TRA
Draw rope for attaching cable
ADD TO QUOTE
DETAILS
Item no. TC-BA-30
Battery-powered cable cutters
ADD TO QUOTE
DETAILS
Item no. CHIOD50-BAT
Battery-powered nail gun
ADD TO QUOTE
DETAILS
