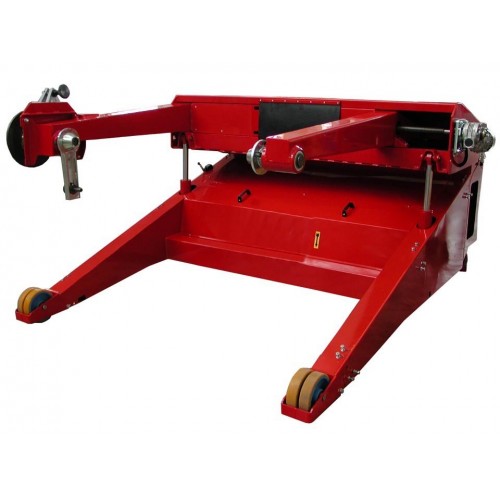

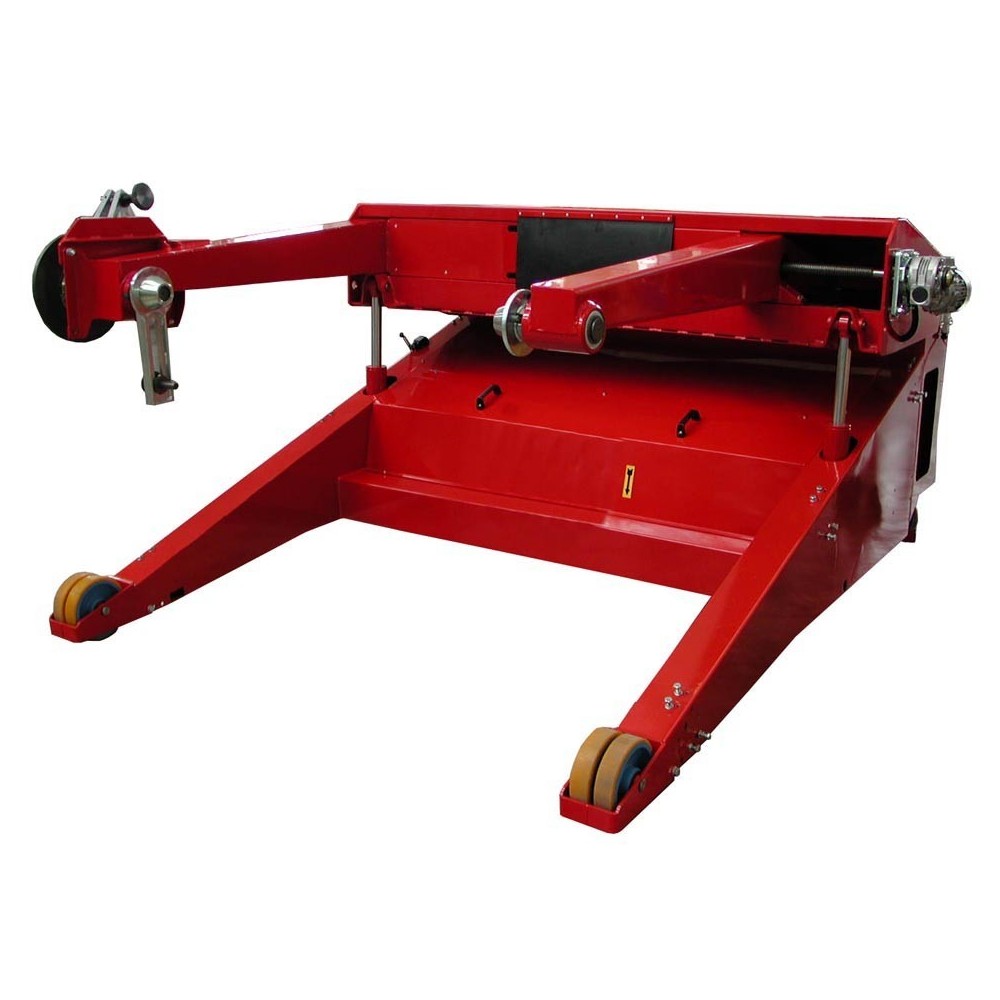

ITEM NO. CD-22/BM - Weight capacity 4000 kg - Drums min. Ø 800mm max. Ø 2200mm HIGH PERFORMANCE - More than 30-40 operations a day on average

CD-22-BM2/SE1/ST-EL/BI/FR-350-OL/RC

Features

  • Independent arms with separate opening and closing operation, motor driven.
  • Electro-hydraulic lifting.
  • VULKOLLAN wheels. (two wheels and two castors).
  • Electro-hydraulic front parking jacks.
  • CE-approved safety guards fitted for protection.
  • Supply voltage 380 V (to be confirmed at order stage)

Technical data sheet

Machine height (mm) 1400 mm
Machine width (mm) 2720 mm
Length with guards on (mm) 3300 mm
Empty weight (kg) 1200 kg
Drums - maximum diameter (mm) 2200 mm
Drums - minimum diameter (mm) 800 mm
Drums - Maximum width (mm) 1450 mm
Max. arms opening 1540 mm
Drums - Minimum width (mm) 490 mm
Drums- Max. weight capacity (kg) 4000 kg
Total power (kW) 3.87 KW
Machine movement speed 4 km/h

Accessories included

Item no. FR-350-OL

Hydraulic tensioning control brake

DETAILS
Item no. RC

Motor-gearbox unit

DETAILS

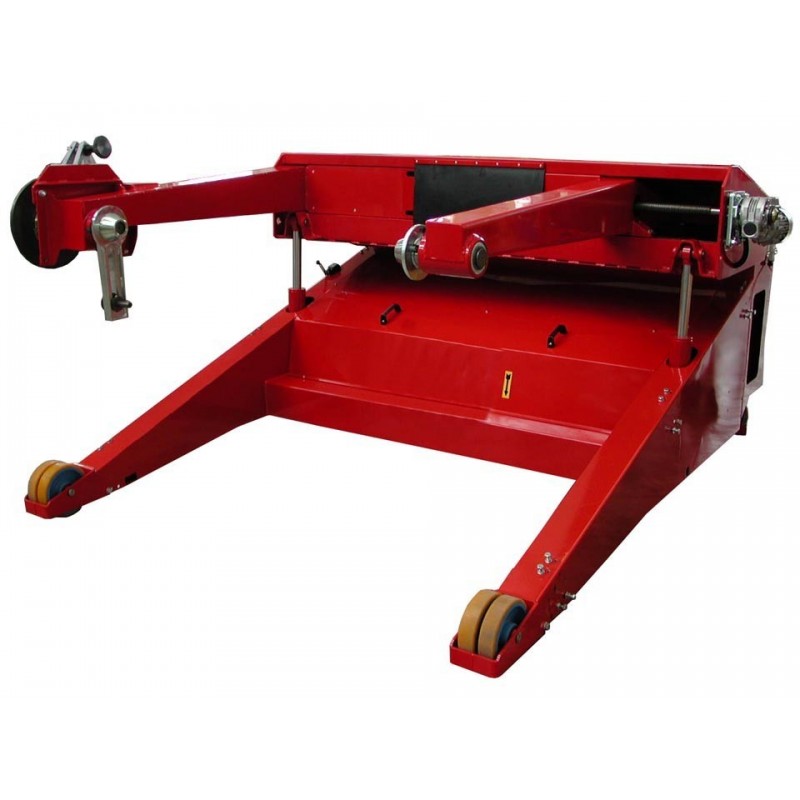

Item no. BI-22

Independent arms

DETAILS
Item no. SE-ST-SV

Lifting power pack jacks

DETAILS
Item no. T

380 Volt three-phase power supply

DETAILS

Accessories on request

Item no. PZA300-22/40/130

Automatic grippers

ADD TO QUOTE
DETAILS
Item no. ERCA-PV

FOR MOVING THE UNIT WHEN EMPTY

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Item no. ATF-PV-CD22/40

Front fitting for ERCA empty

ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PV
ADD TO QUOTE
DETAILS
Item no. ERCA-PC

FOR MOVING THE UNIT WHEN LOADED

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Item no. ATF-PC-CD22/40

Front fitting for ERCA loaded

ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PC

Battery for moving machine independently when loaded

ADD TO QUOTE
DETAILS
Item no. BA-CD22/40/24/250

Battery-powered power supply for running machines fully independent from 220-380V mains

ADD TO QUOTE
DETAILS
Item no. TC-BA-30

Battery-powered cable cutters

ADD TO QUOTE
DETAILS
