| Machine height (mm) | 1400 mm |
| Machine width (mm) | 2720 mm |
| Length with guards on (mm) | 3300 mm |
| Empty weight (kg) | 1200 kg |
| Drums - maximum diameter (mm) | 2200 mm |
| Drums - minimum diameter (mm) | 800 mm |
We inform our customers that our offices will be closed from 21.12.2024 to 06.01.2025. The technical teams for urgent maintenance of the equipments will stay available for you
Product added to your cart
Quantity:
Total:
There are 0 items in your cart.
Your cart contains an item.
Product total
(Tax excluded)
Shipping total (Tax excluded)
To be determined
Total
(Tax excluded)

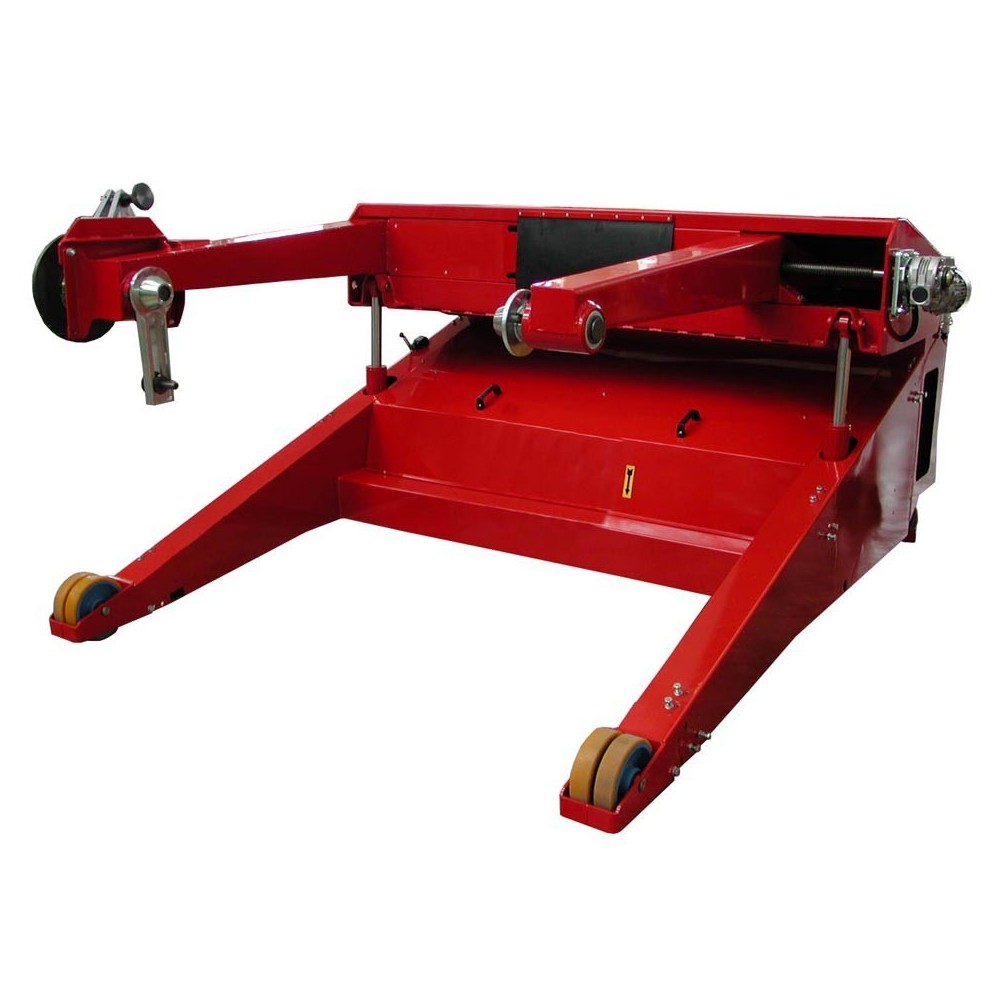

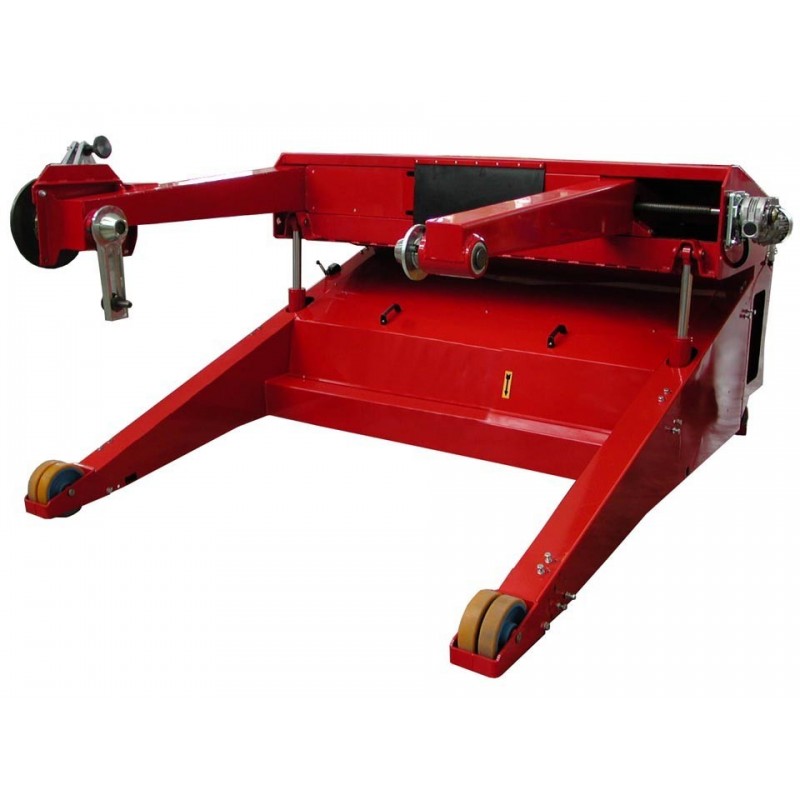

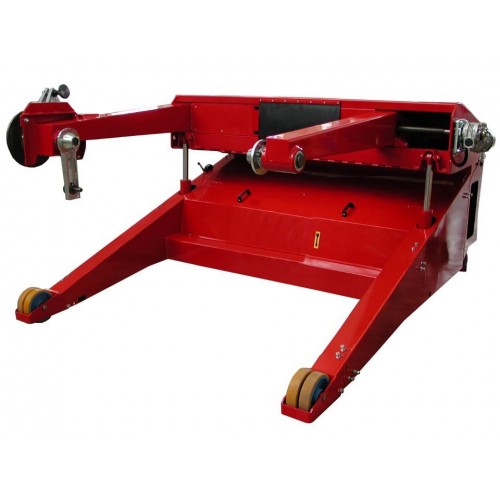

ITEM NO. CD-22/BM - Weight capacity 4000 kg - Drums min. Ø 800mm max. Ø 2200mm MEDIUM PERFORMANCE - 20-30 operations a day on average
CD-22-BM2/SE1/ST-EL/BI/FM-1-350
Technical data sheet
| Drums - Maximum width (mm) | 1450 mm |
| Max. arms opening | 1540 mm |
| Drums - Minimum width (mm) | 490 mm |
| Drums- Max. weight capacity (kg) | 4000 kg |
| Total power (kW) | 3.87 KW |
| Machine movement speed | 4 km/h |
Accessories included
Item no. FM-1-350
Disc brake
DETAILS
Item no. BI-22
Independent arms
DETAILS
Item no. SE-ST-SV
Lifting power pack jacks
DETAILS
Item no. T
380 Volt three-phase power supply
DETAILS
Accessories on request
Item no. PZA300-22/40/130
Automatic grippers
ADD TO QUOTE
DETAILS
Item no. ERCA-PV
FOR MOVING THE UNIT WHEN EMPTY
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATF-PV-CD22/40
Front fitting for ERCA empty
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PV
ADD TO QUOTE
DETAILS
Item no. ERCA-PC
FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATF-PC-CD22/40
Front fitting for ERCA loaded
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PC
Battery for moving machine independently when loaded
ADD TO QUOTE
DETAILS
Item no. BA-CD22/40/24/250
Battery-powered power supply for running machines fully independent from 220-380V mains
ADD TO QUOTE
DETAILS
Item no. TC-BA-30
Battery-powered cable cutters
ADD TO QUOTE
DETAILS
