Machine height (mm) | 1600 mm |
Machine width (mm) | 2200 mm |
Length with guards on (mm) | 2850 mm |
Empty weight (kg) | 740 kg |
Drums - maximum diameter (mm) | 1600 mm |
Drums - minimum diameter (mm) | 600 mm |
Drums - Maximum width (mm) | 1130 mm |
CALL US NOW: +39 049 96.20.454

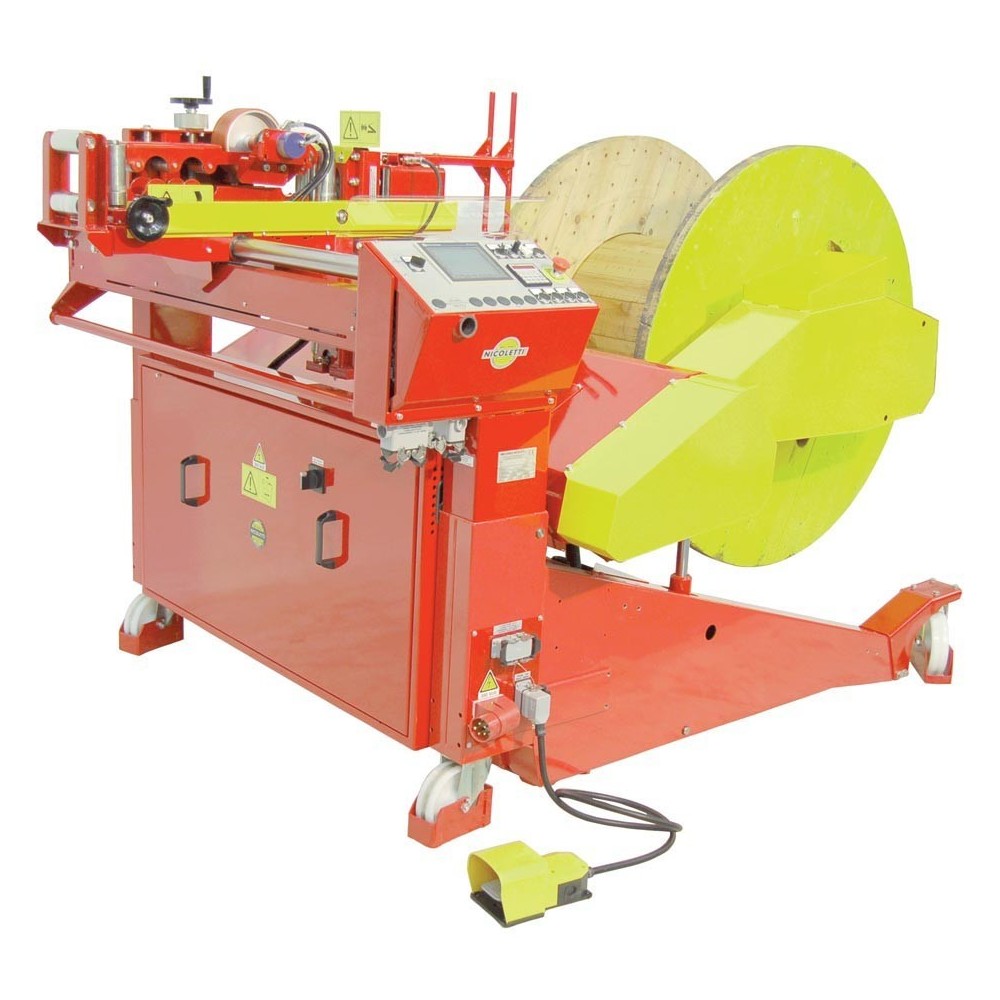

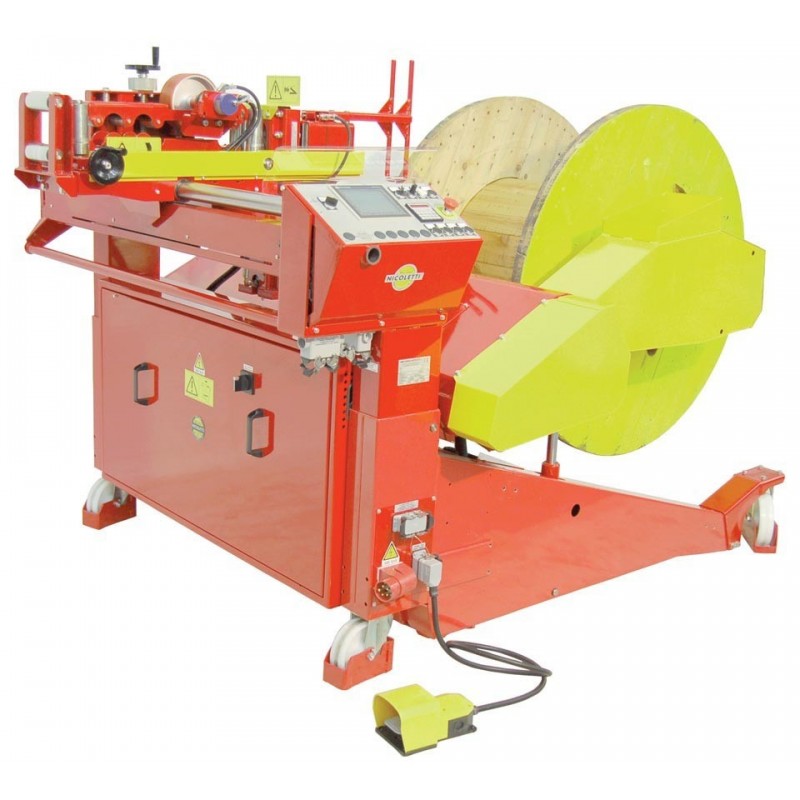

CD-15-M3-BM2/PLC/SE1/TC-1-60/ST-EL/OA10Q60-OM/OE-B/RIL-MOVE
Warning: last items in stock!
Availability date:
Machine height (mm) | 1600 mm |
Machine width (mm) | 2200 mm |
Length with guards on (mm) | 2850 mm |
Empty weight (kg) | 740 kg |
Drums - maximum diameter (mm) | 1600 mm |
Drums - minimum diameter (mm) | 600 mm |
Drums - Maximum width (mm) | 1130 mm |
Drums - Minimum width (mm) | 390 mm |
Drums- Max. weight capacity (kg) | 3000 kg |
Total power (kW) | 3.7 KW |
Torque | 421 Nm |
Machine movement speed | 4 km/h |
Min./max. rpm (rpm at drum) | 0-70 g/min |
Motion detector
Electromechanical machine movement detector
In case of troubles, such as cable twisting, which interrupts the correct unwinding of the reel, causing tearing or cable stoppage (mechanical blockage) and which could cause accidents or damage to machine and racking, this accessory may interrupt the operation of the machine.
Essential accessory to be able to wind the cable without operator’s control and to work safely even at high speeds.
Personal computer for industrial applications
Personal computer for industrial applications (Schneider).
Machine funtions:
Mechanical precision counter with display
Measuring meter with in-house type approval with counter
Tolerance for cable diameters 5-60 mm ±0.5% (coated round cables).
NB: option of fitting measuring meter for cable diameters from min. 5mm to
max. 100 mm
Height (mm) | 450 mm |
Width (mm) | 370 mm |
Length (mm) | 640 mm |
Weight (kg) | 60 kg |
Cable min./max. diameter (mm) | 5-60 mm |
Measuring accuracy | ± 0,5 % |
Shears for cables max. Ø 60mm
Electro-hydraulic cutter for cutting cables up to diameter 60mm.
Up to diameter 22-23mm for steel wire ropes with special knives.
The kit includes electro-hydraulic lifting and electro-hydraulic jacks.
NB: option of fitting shears that cut cable diameters up to 100mm
To specify cable type, click here to fill out the data request sheet.

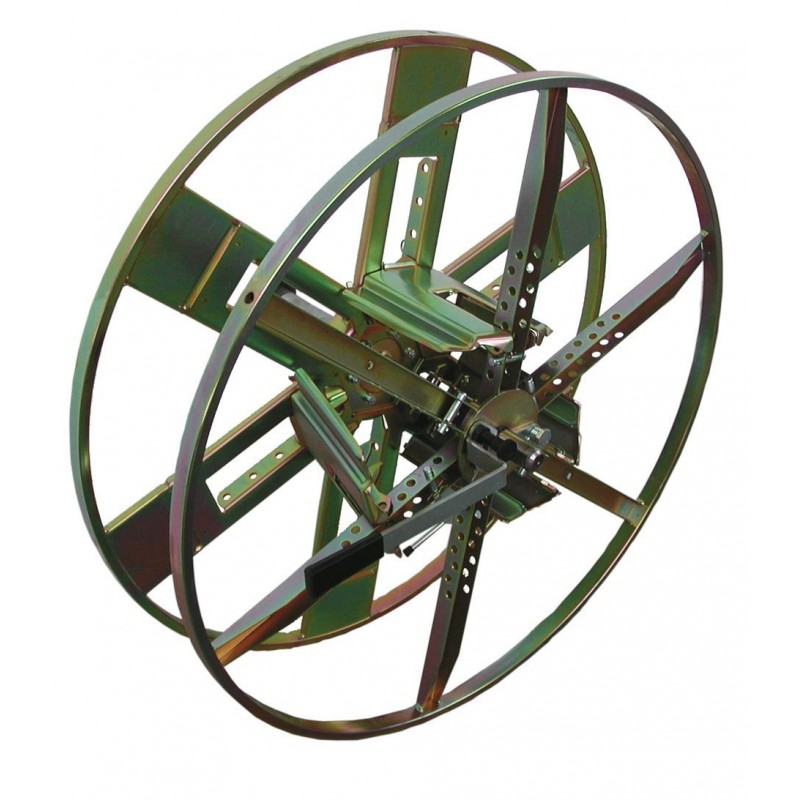

Coiling head
Coiling head, vers. with removable flange for CD-15/BM2.
Cylindrical core during winding and tapered during removal to make the coil easier to take off.
Core Ø can be adjusted from 320 to 620mm in 50mm increments
Overall dimensions: Ø 1000mm width 500mm
Weight: 40 kg
Coil Ø max. 950, fixed widths min. 115mm max. 220mm weight 250 kg
NB: coilers can be ordered with different Ø and cores on request.
Height (mm) | 1000 mm |
Width (mm) | 500 mm |
Length (mm) | 1000 mm |
Weight (kg) | 40 kg |
Core - max. diameter (mm) | 620 mm |
Core - min. diameter (mm) | 320 mm |
Coil - max. width (mm) | 220 mm |
Coil - min. width (mm) | 115 mm |
Coils - max. diameter (mm) | 950 mm |
Max. coil weight | 250 kg |
Kit for wireless data communication
KIT FOR WIRELESS DATA COMMUNICATION
COMPONENTS:
N. 1 Art. KI-WI:
N. 1 Art. ST-BA:
N. 1 Art. IRD-WI:
Example for data exchange between ERP and the machine:
Return data for ERP:
Electronic precision counter with display
MID EUROPEAN TYPE APPROVAL
Replaces OA/10Q60/OM
Measuring meter with MID type approval (certification for cable measuring sale) with electronic programmer for cable diameters 5-60mm
Tolerance for cable diameters 5-60mm ±0.5% (coated round cables).
Height (mm) | 450 mm |
Width (mm) | 370 mm |
Length (mm) | 640 mm |
Weight (kg) | 60 kg |
Cable min./max. diameter (mm) | 60 mm |
Measuring accuracy | ± 0,5 % |
Openable meter counter

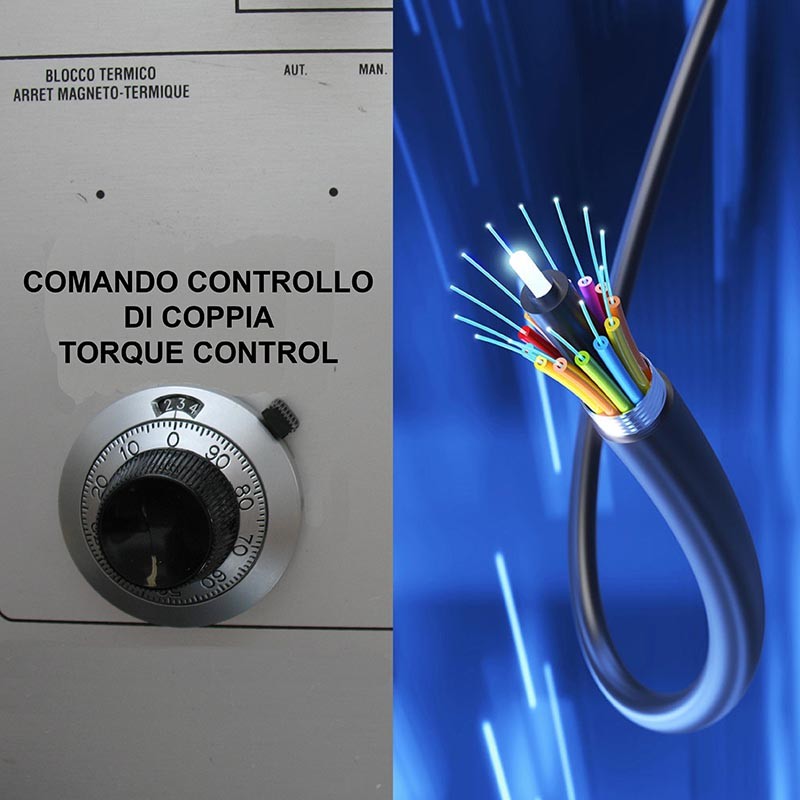

Torque control

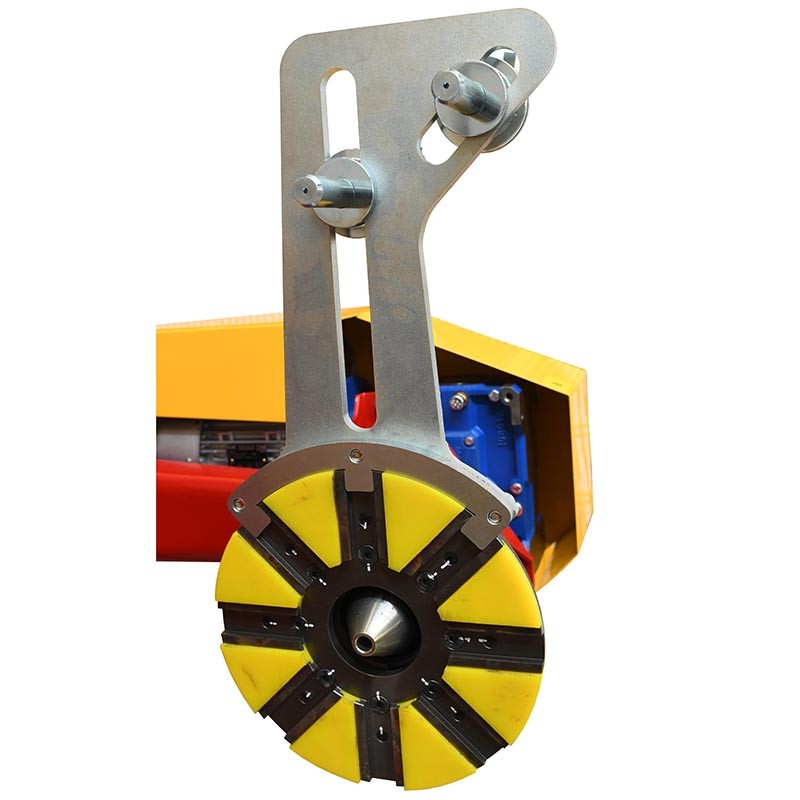

Automatic grippers
Automatic grippers with dual motors for driving the drums.
Automatic cable diameter measuring
Automatic measuring of cable's outside diameter: this system does away with the need to measure the cable manually, with a gauge. (Manual measuring is susceptible to reading errors, which leads to incorrect layering)

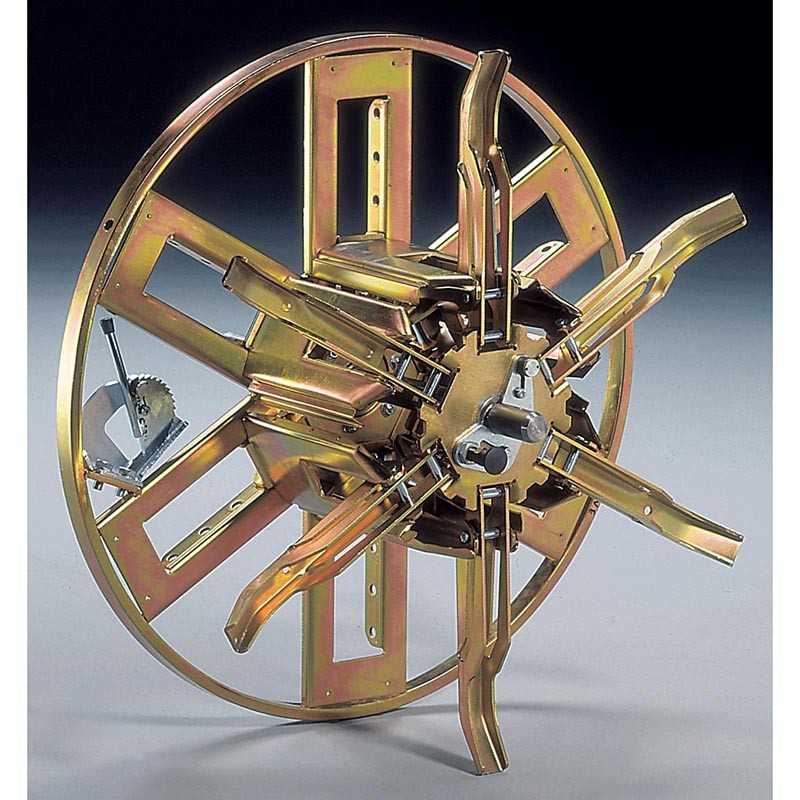

Collapsible coiling head
Coiling head in collapsible version for CD-15/BM2, replacing OE-B-15
Expanding cylindrical winding core to make the
coil easier to take off.
Diameter of fixed core: 320mm OR 520mm
Overall dimensions: diameter 1000mm width 500mm
Weight: 40 kg
Coil Ø max. 950, fixed widths 90 or 200mm weight capacity 250 kg
NB: coilers can be ordered with different diameters and cores on request
Height (mm) | 1000 mm |
Width (mm) | 500 mm |
Length (mm) | 1000 mm |
Weight (kg) | 40 kg |
Core - max. diameter (mm) | 520 mm |
Core - min. diameter (mm) | 320 mm |
Coils - maximum width (mm) | 200 mm |
Coil - min. width (mm) | 90 mm |
Coils - max. diameter (mm) | 950 mm |
Max. coil weight | 250 kg |

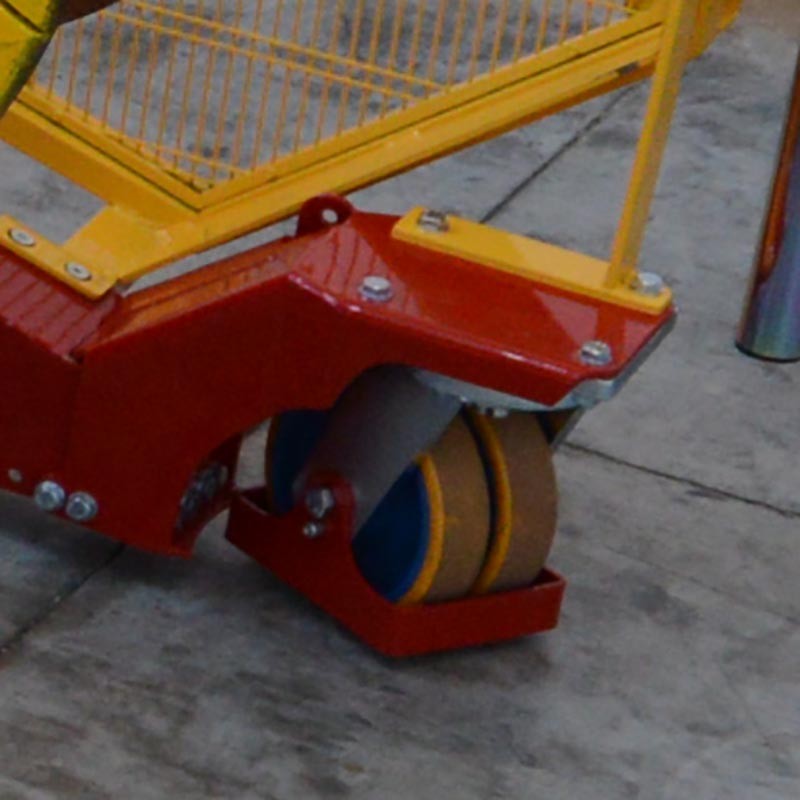

Rear castors
Pair of rear castors for moving the machine across.
This optional extra is required in the event you have selected item no. ER-CA-B-O-15.
FOR MOVING THE UNIT WHEN EMPTY
Select front or side fitting (see accessories)
Side fitting for ERCA empty
Front fitting for ERCA empty
Battery for moving machine independently when empty

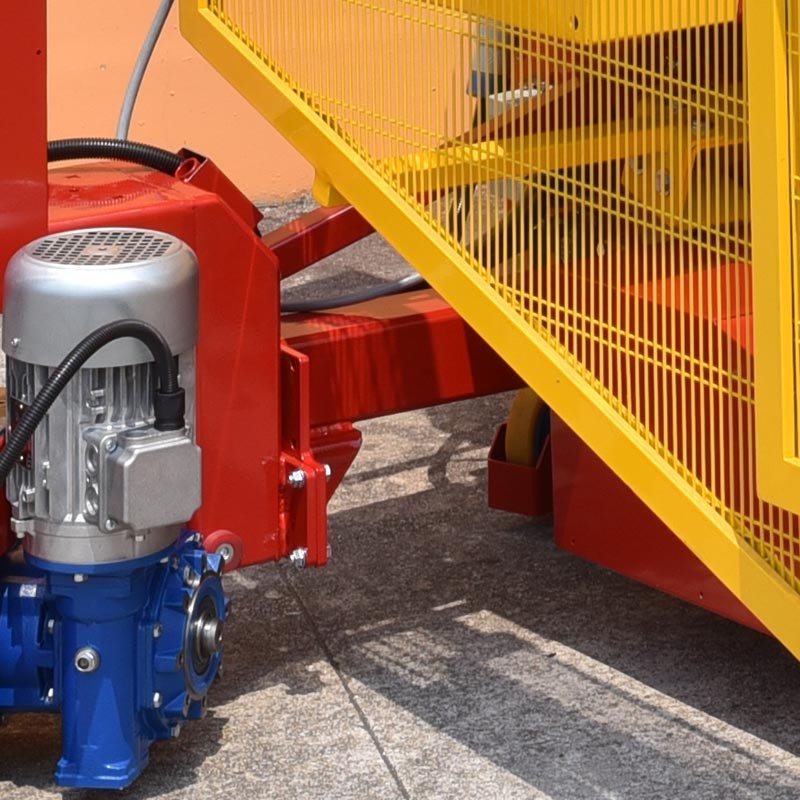

FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)

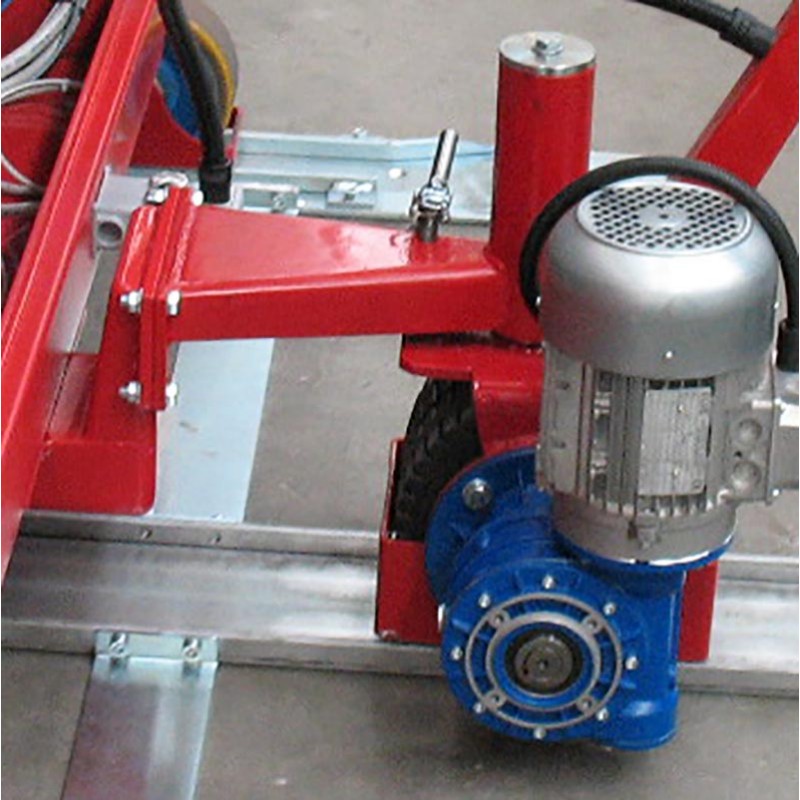

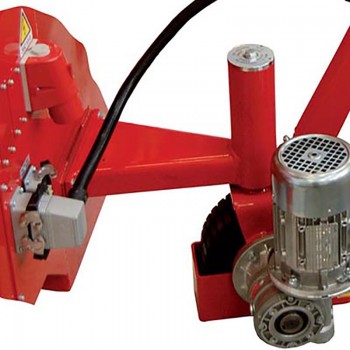

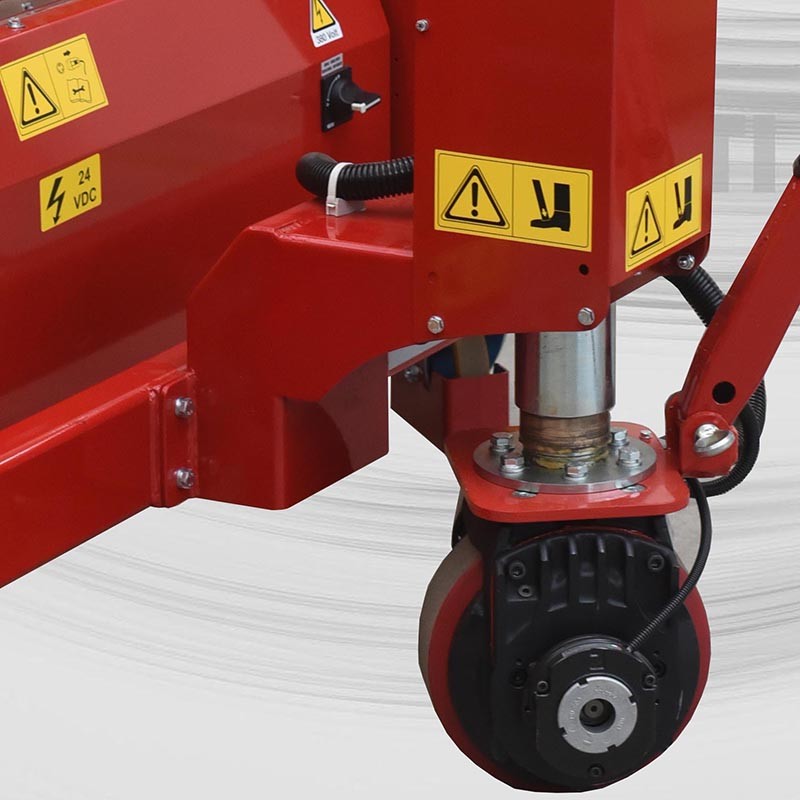

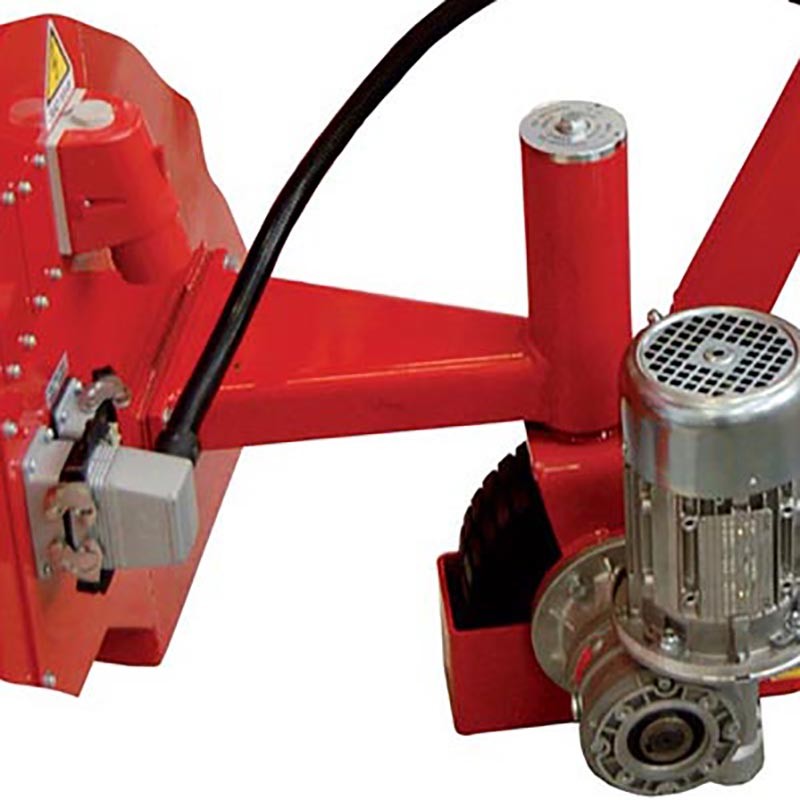

AC motor-driven wheel for moving the machine when loaded.
Power 0.55 kW
Variable movement speed 0-27m/min
Forward/reverse
NB If you select this optional extra, it must be used in conjunction with castors for moving the machine across
Side fitting for ERCA loaded
Front fitting for ERCA loaded

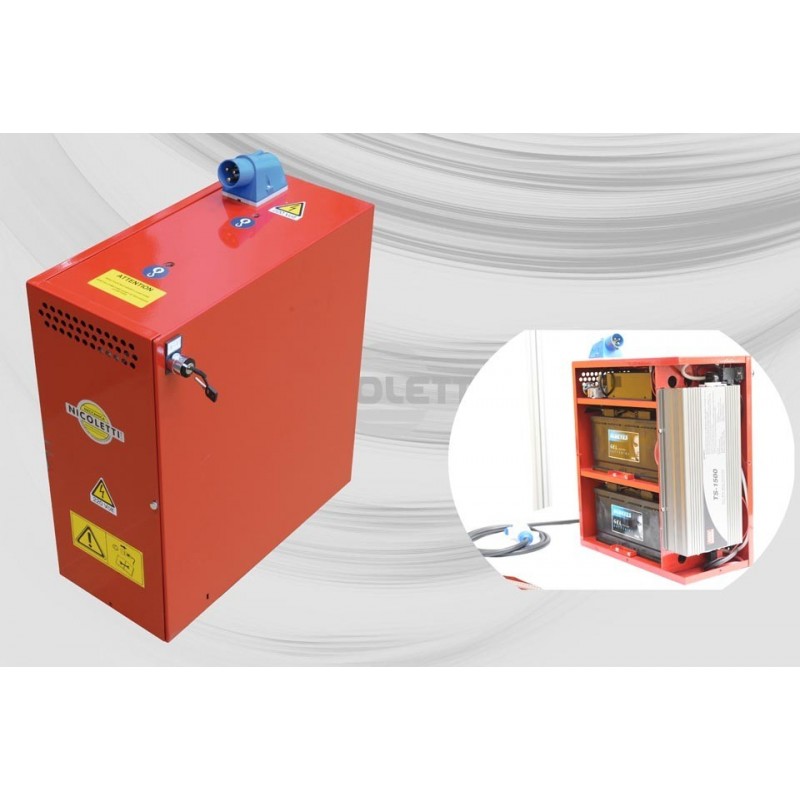

Battery for moving machine independently when loaded
Battery-powered power supply for running machines fully independent from 220-380V mains
Remote support via Ethernet
Direct connection via ETHERNET (internet cable), which we recommend in the event your company has an ethernet
Draw rope for attaching cable
Cable draw rope for attaching on take-up comprising:
Slip ring overhead cable connection
Slip ring for supplying power to the machine from above
Battery-powered cable cutters
Battery-powered nail gun
