| Machine height (mm) | 1600 mm |
| Machine width (mm) | 2200 mm |
| Length with guards on (mm) | 2850 mm |
| Empty weight (kg) | 740 kg |
| Drums - maximum diameter (mm) | 1600 mm |
| Drums - minimum diameter (mm) | 600 mm |
| Drums - Maximum width (mm) | 1130 mm |
We inform our customers that our offices will be closed from 21.12.2024 to 06.01.2025. The technical teams for urgent maintenance of the equipments will stay available for you
Product added to your cart
Quantity:
Total:
There are 0 items in your cart.
Your cart contains an item.
Product total
(Tax excluded)
Shipping total (Tax excluded)
To be determined
Total
(Tax excluded)

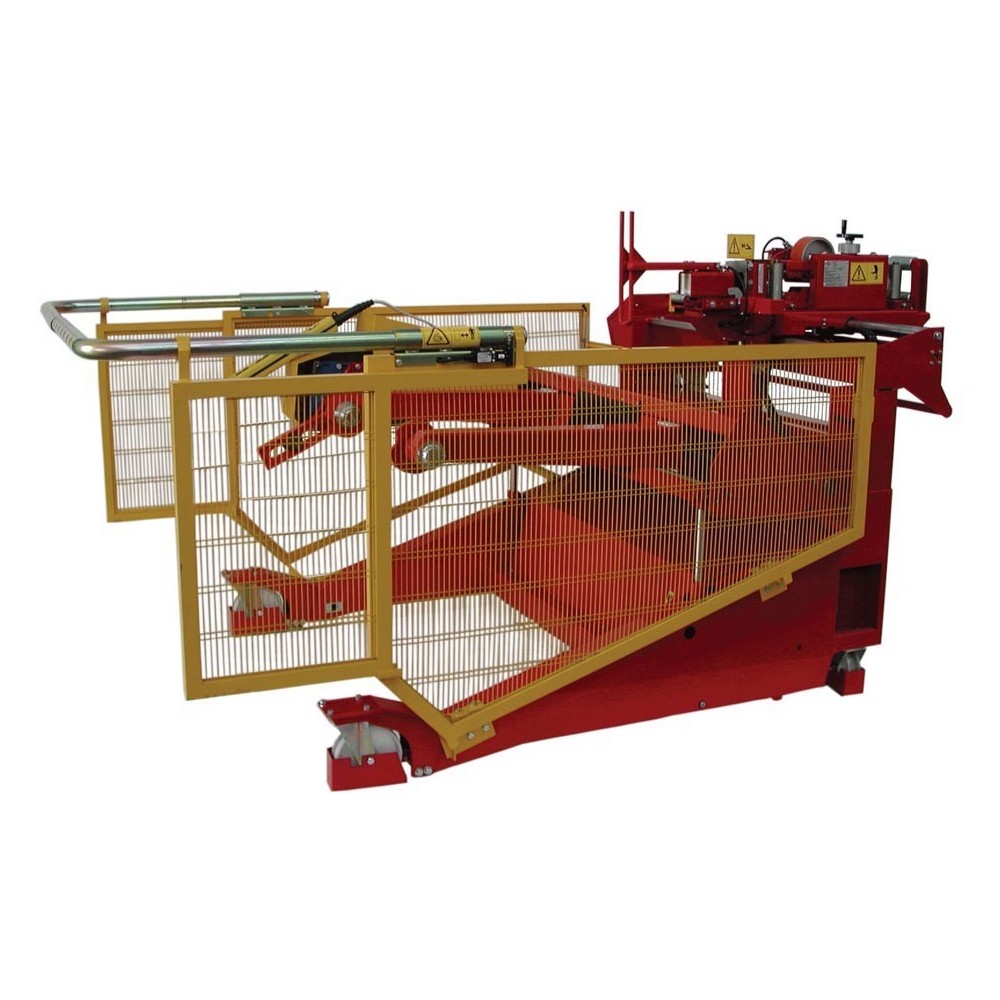

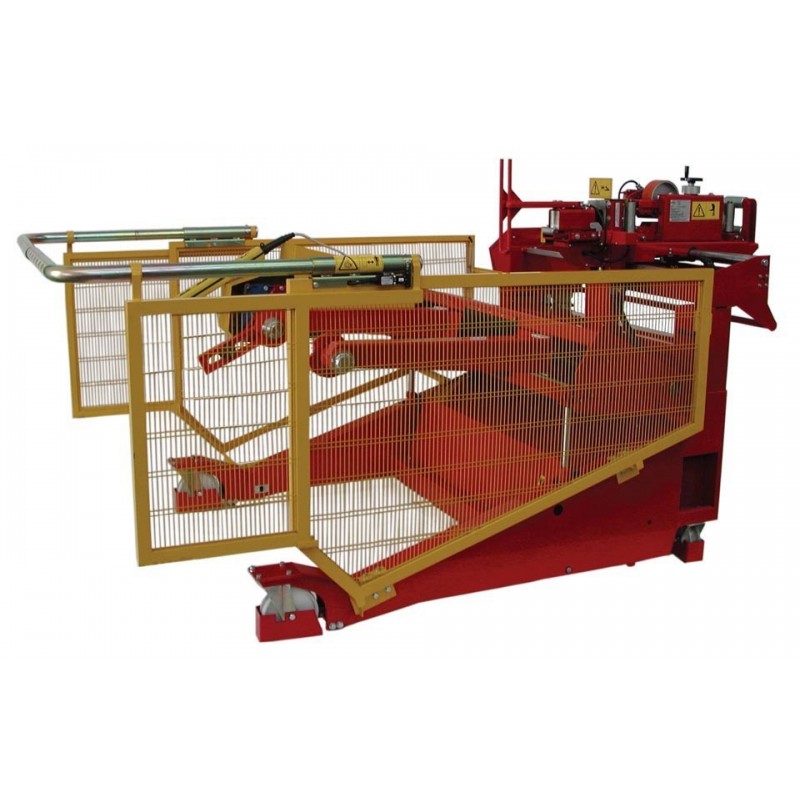

ITEM NO. CD-15/M3/BM - Weight capacity 3000 kg - Drums min. Ø 600mm max. Ø 1600mm LOW PERFORMANCE - max. 20 operations a day on average
CD-15-M3-BM2/SE-1/SE-ST/OA10Q60
Technical data sheet
| Drums - Minimum width (mm) | 390 mm |
| Drums- Max. weight capacity (kg) | 3000 kg |
| Total power (kW) | 3.7 KW |
| Torque | 421 Nm |
| Machine movement speed | 4 kmh |
| Min./max. rpm (rpm at drum) | 0-70 g/min |
Accessories included
Item no. OA/10Q60
Cable measuring device
DETAILS
Item no. SE-ST
Lifting power pack and jacks
DETAILS
Accessories on request
Item no. KIT-WI
Kit for wireless data communication
ADD TO QUOTE
DETAILS
Item no. RIL-MOVE-2
Motion detector
ADD TO QUOTE
DETAILS
Item no. OE-B-15
Coiling head
ADD TO QUOTE
DETAILS
Item no. RG-15
Rear castors
ADD TO QUOTE
DETAILS
Item: Openable meter counter - OA10Q60OM-APRI
Openable meter counter
ADD TO QUOTE
DETAILS
Item no. VSFC0011/CD15 - Torque control
Torque control
ADD TO QUOTE
DETAILS
Item no. ERCA-LV
FOR MOVING THE UNIT WHEN EMPTY
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATF-LV-CD15
Front fitting for ERCA empty
ADD TO QUOTE
DETAILS
Item no. ATL-LV-CD15
Side fitting for ERCA empty
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-LV
Battery for moving machine independently when empty
ADD TO QUOTE
DETAILS
Item no. ERCA-PC
FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATL-PC-CD15
Side fitting for ERCA loaded
ADD TO QUOTE
DETAILS
Item no. ATF-PC-CD15
Front fitting for ERCA loaded
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PC
Battery for moving machine independently when loaded
ADD TO QUOTE
DETAILS
Item no. FUN-TRA
Draw rope for attaching cable
ADD TO QUOTE
DETAILS
Item no. TC-BA-30
Battery-powered cable cutters
ADD TO QUOTE
DETAILS
Item no. CHIOD50-BAT
Battery-powered nail gun
ADD TO QUOTE
DETAILS
