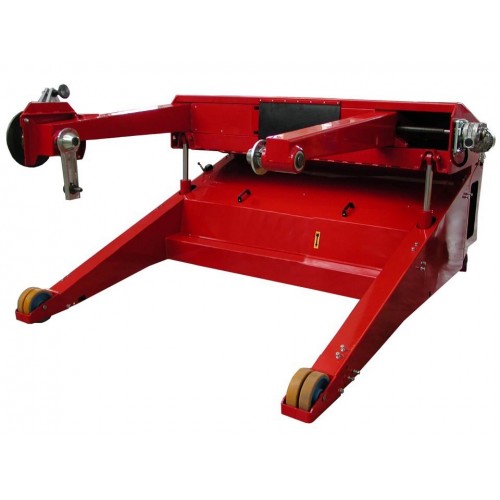

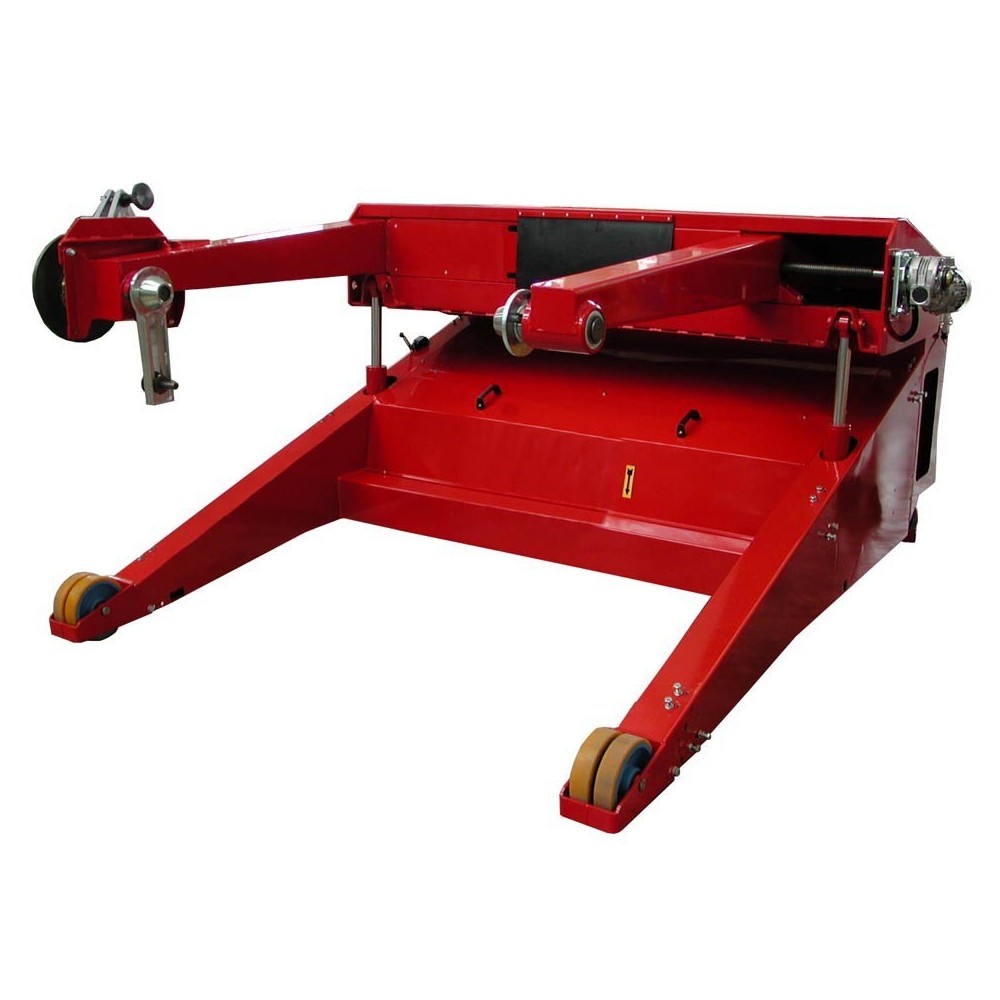

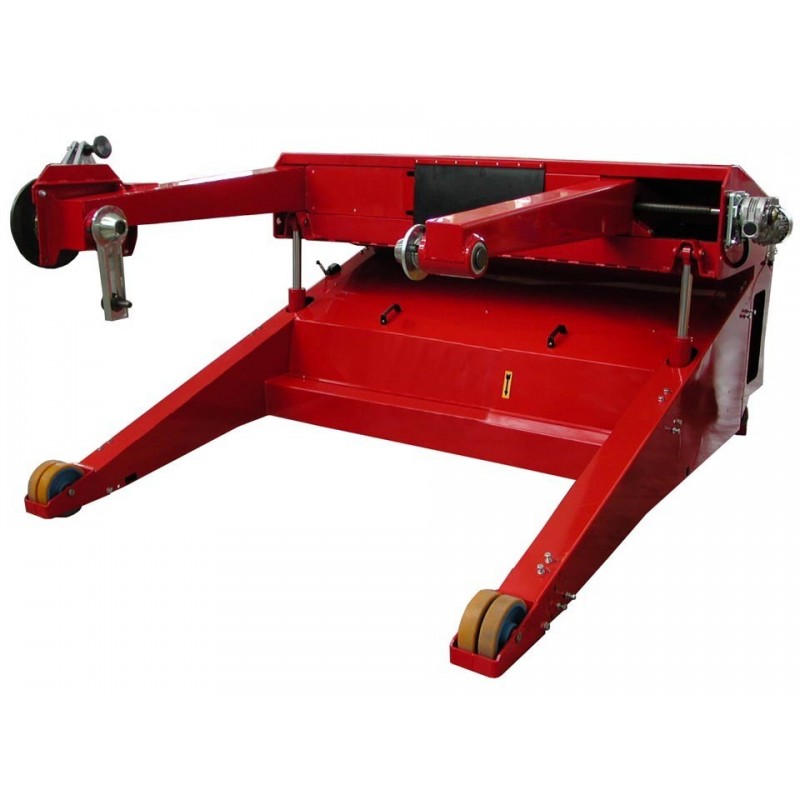

ITEM NO. CD-15/BM - Weight capacity 3000 kg - Drums min. Ø 600mm max. Ø 1600mm HIGH PERFORMANCE - More than 30-40 operations a day on average

ITEM NO. CD-15/BM - Weight capacity 3000 kg - Drums min. Ø 600mm max. Ø 1600mm
Zoom

CD-15-BM2/SE1/ST-EL/BI/FR-250-OL/RC

Change performance choice >
Watch video

Features

  • Independent arms with separate opening and closing operation, motor driven.
  • Electro-hydraulic lifting.
  • NYLON wheels. (two wheels and two castors).
  • Electro-hydraulic front parking jacks.
  • CE-approved safety guards fitted for protection.
  • Supply voltage 380 V (to be confirmed at order stage)

Technical data sheet

Machine height (mm) 850 mm
Machine width (mm) 1850 mm
Machine length (mm) 1925 mm
Empty weight (kg) 600 kg
Drums - maximum diameter (mm) 1600 mm
Drums - minimum diameter (mm) 600 mm
Drums - Maximum width (mm) 1130 mm
Drums - Minimum width (mm) 390 mm
Drums- Max. weight capacity (kg) 3000 kg
Total power (kW) 1.5 KW
Machine movement speed 4 km/h

Accessories included

Zoom

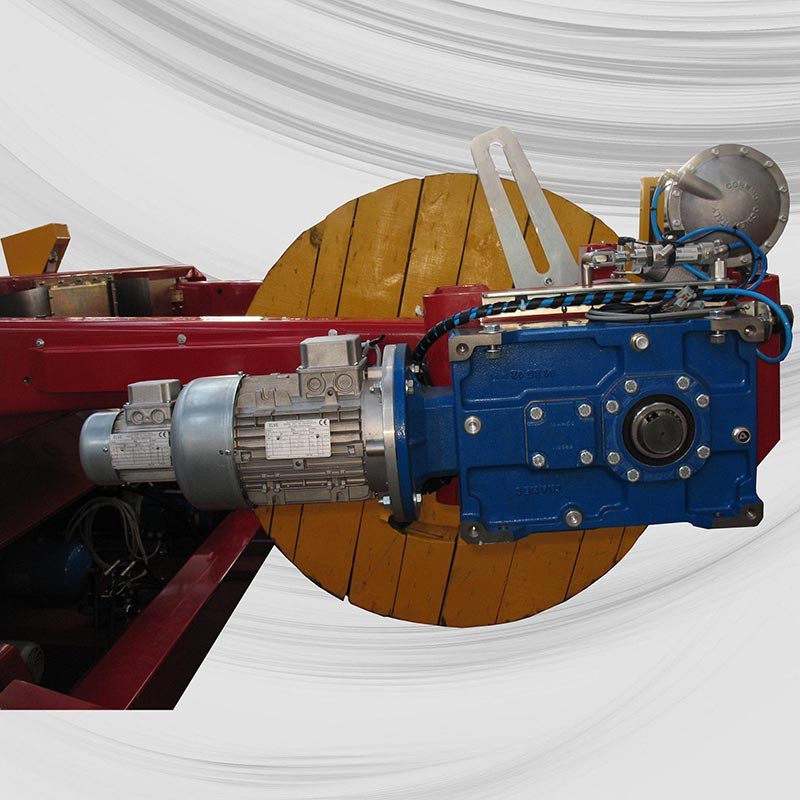

Item no. FR-250-PN

Hydraulic tensioning control brake

DETAILS
Zoom
Item no. RC

Motor-gearbox unit

DETAILS
Zoom
Item no. BI-15

Independent arms

DETAILS
Zoom
Item no. SE-ST-SV

Lifting power pack jacks

DETAILS
Zoom
Item no. T

380 Volt three-phase power supply

DETAILS
Request quote

Accessories on request

Zoom
Item no. PZA300-15/80

Automatic grippers

ADD TO QUOTE
DETAILS
Zoom
Item no. RG-15

Rear castors

ADD TO QUOTE
DETAILS
Zoom
Item no. ERCA-LV

FOR MOVING THE UNIT WHEN EMPTY

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Zoom
Item no. ATL-LV-CD15

Side fitting for ERCA empty

ADD TO QUOTE
DETAILS
Zoom
Item no. ATF-LV-CD15

Front fitting for ERCA empty

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-ERCA-LV

Battery for moving machine independently when empty

ADD TO QUOTE
DETAILS
Zoom
Item no. ERCA-PC

FOR MOVING THE UNIT WHEN LOADED

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Zoom
Item no. ATL-PC-CD15

Side fitting for ERCA loaded

ADD TO QUOTE
DETAILS
Zoom
Item no. ATF-PC-CD15

Front fitting for ERCA loaded

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-ERCA-PC

Battery for moving machine independently when loaded

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-CD15/24/180

Battery-powered power supply for running machines fully independent from 220-380V mains

ADD TO QUOTE
DETAILS
Zoom
Item no. TC-BA-30

Battery-powered cable cutters

ADD TO QUOTE
DETAILS
