Machine height (mm) | 1400 mm |
Machine width (mm) | 2720 mm |
Machine length (mm) | 3080 mm |
Length with guards on (mm) | 3700 mm |
Empty weight (kg) | 2000 kg |
Drums - maximum diameter (mm) | 3000 mm |
CALL US NOW: +39 049 96.20.454

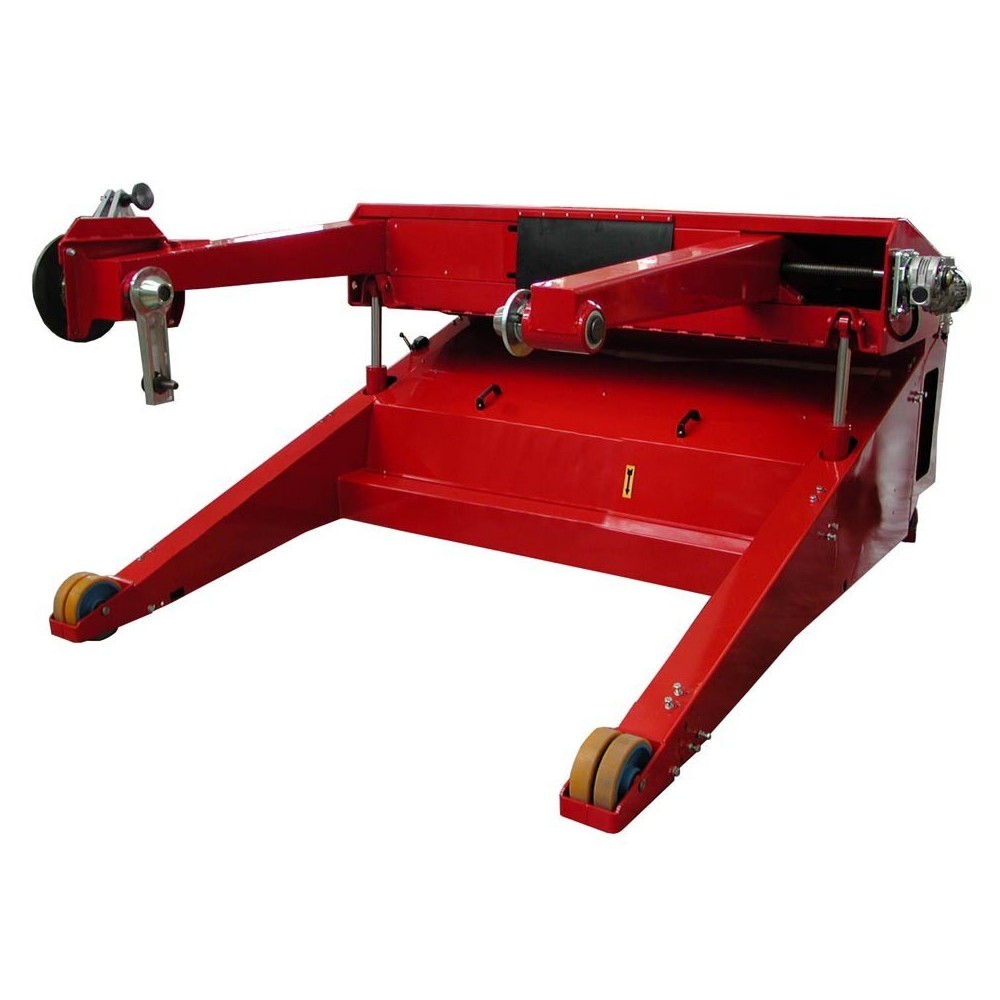

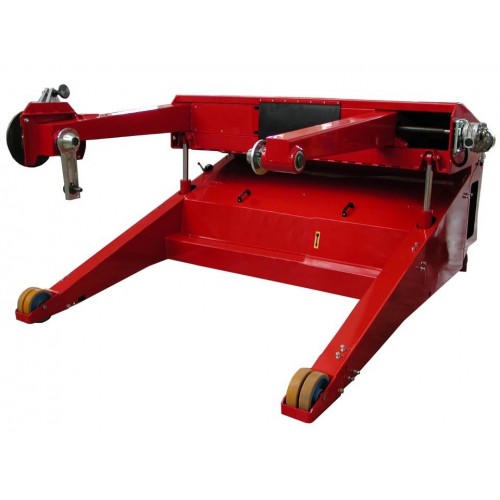

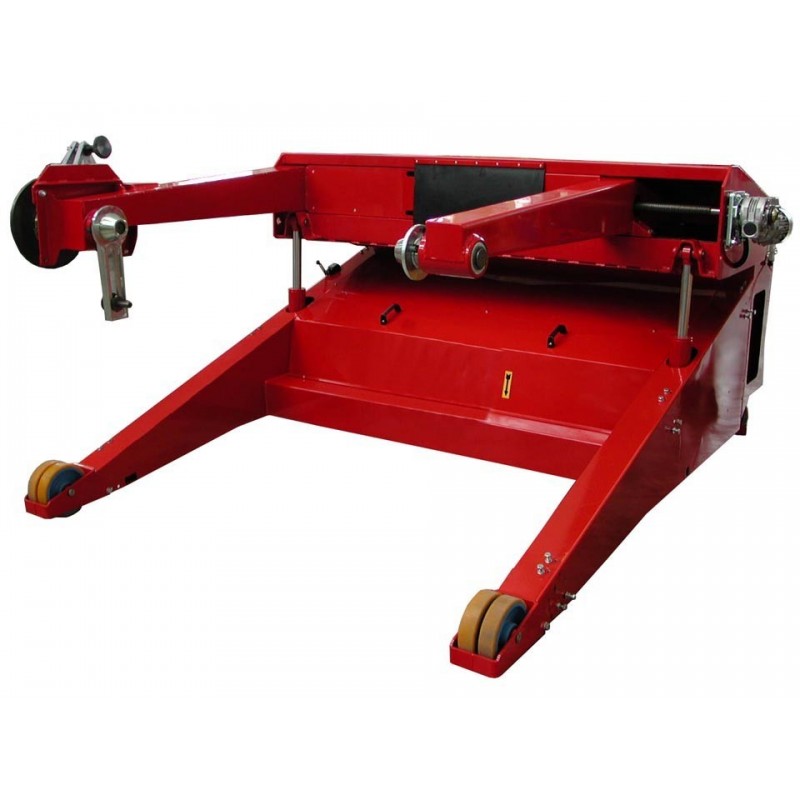

CD-100-BM2/SE1/ST-EL/BI/FM-1-350
Warning: last items in stock!
Availability date:
Machine height (mm) | 1400 mm |
Machine width (mm) | 2720 mm |
Machine length (mm) | 3080 mm |
Length with guards on (mm) | 3700 mm |
Empty weight (kg) | 2000 kg |
Drums - maximum diameter (mm) | 3000 mm |
Drums - minimum diameter (mm) | 800 mm |
Drums - Maximum width (mm) | 2000 mm |
Drums - Minimum width (mm) | 490 mm |
Drums- Max. weight capacity (kg) | 10000 kg |
Total power (kW) | 4 KW |
Machine movement speed | 4 km/h |
Disc brake
Disc brake for tensioning control during payoff.
Complete with manually adjustable braking calipers
Independent arms
Independent arms with separate motorized opening and closing operation.
For CD100-series machines
Lifting power pack jacks
Lifting driven by electro-hydraulic power pack. Complete with electro-hydraulic jacks.
Automatic grippers
Automatic grippers with dual motors for driving the drums.
Complete for CD-22/CD-40 machines without automatic gripping process, including adapter bushes for Ø130mm bore.
Come with drive bar on left side for use on drums with very smooth surfaces and no support lug. Gripper replacement time 2 minutes.
FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)
AC motor-driven wheel for moving the machine when loaded.
Power 0.55 kW
Variable movement speed 0-27m/min
Forward/reverse
NB If you select this optional extra, it must be used in conjunction with castors for moving the machine across
Front fitting for ERCA loaded
Battery for moving machine independently when loaded
Battery-powered cable cutters
