| Machine height (mm) | 1400 mm |
| Machine width (mm) | 2720 mm |
| Machine length (mm) | 3080 mm |
| Length with guards on (mm) | 3700 mm |
| Empty weight (kg) | 2000 kg |
| Drums - maximum diameter (mm) | 3000 mm |
We inform our customers that our offices will be closed from 21.12.2024 to 06.01.2025. The technical teams for urgent maintenance of the equipments will stay available for you
Product added to your cart
Quantity:
Total:
There are 0 items in your cart.
Your cart contains an item.
Product total
(Tax excluded)
Shipping total (Tax excluded)
To be determined
Total
(Tax excluded)

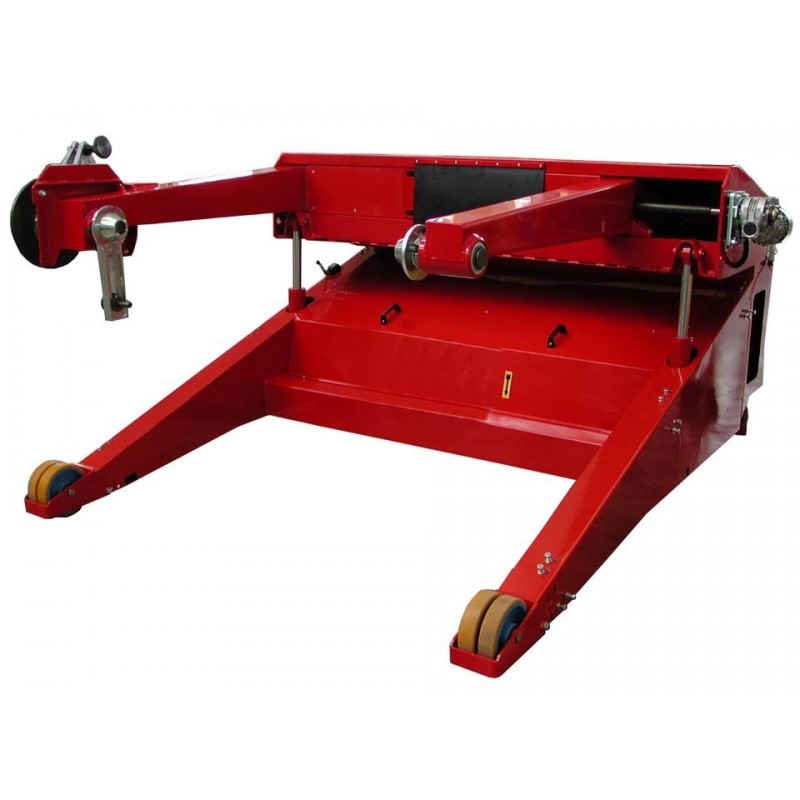

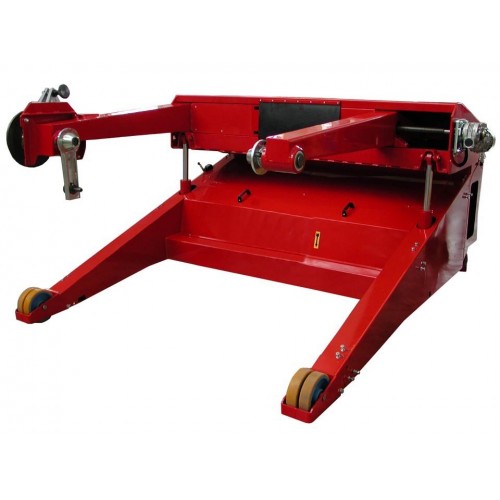

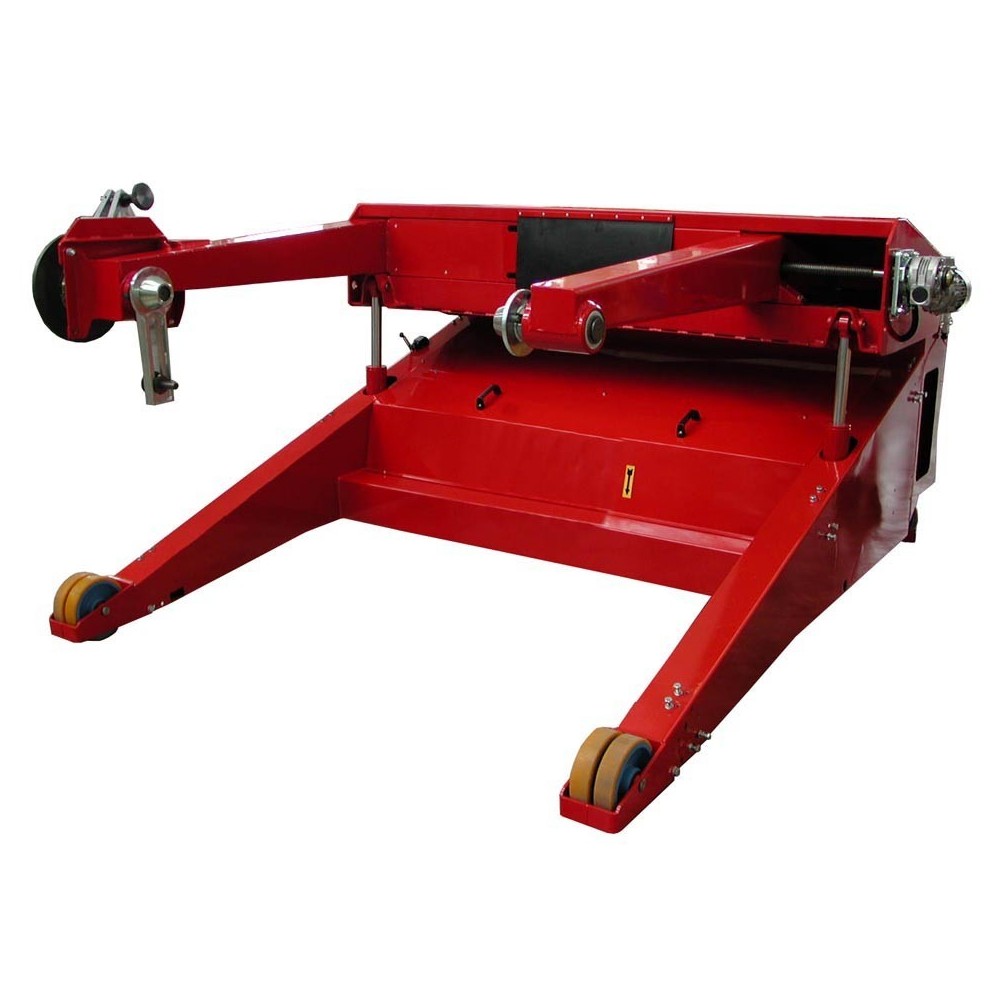

ITEM NO. CD-100/BM - Weight capacity 10000 kg - Drums min. Ø 800mm max. Ø 3000mm HIGH PERFORMANCE - 20-30 operations a day on average
CD-100-BM2/SE1/ST-EL/BI/FR-350-OL/RC
Technical data sheet
| Drums - minimum diameter (mm) | 800 mm |
| Drums - Maximum width (mm) | 2000 mm |
| Drums - Minimum width (mm) | 490 mm |
| Drums- Max. weight capacity (kg) | 10000 kg |
| Total power (kW) | 4.0 KW |
| Machine movement speed | 4 km/h |
Accessories included
Item no. FR-350-OL
Hydraulic tensioning control brake
DETAILS
Item no. RC
Motor-gearbox unit
DETAILS
Item no. PZA300-100/130
Automatic grippers
DETAILS
Item no. BI-100
Independent arms
DETAILS
Item no. SE-ST-SV
Lifting power pack jacks
DETAILS
Item no. T
380 Volt three-phase power supply
DETAILS
Accessories on request

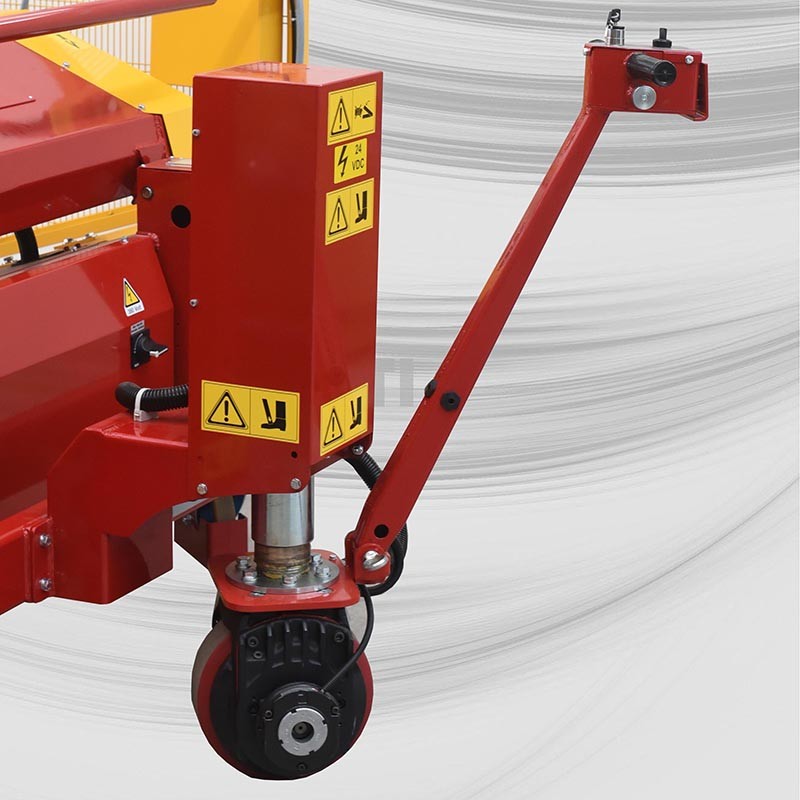

Item no. ERCA-PC
FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS
Item no. ATF-PC-CD100
Front fitting for ERCA loaded
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PC
Battery for moving machine independently when loaded
ADD TO QUOTE
DETAILS
Item no. TC-BA-30
Battery-powered cable cutters
ADD TO QUOTE
DETAILS
