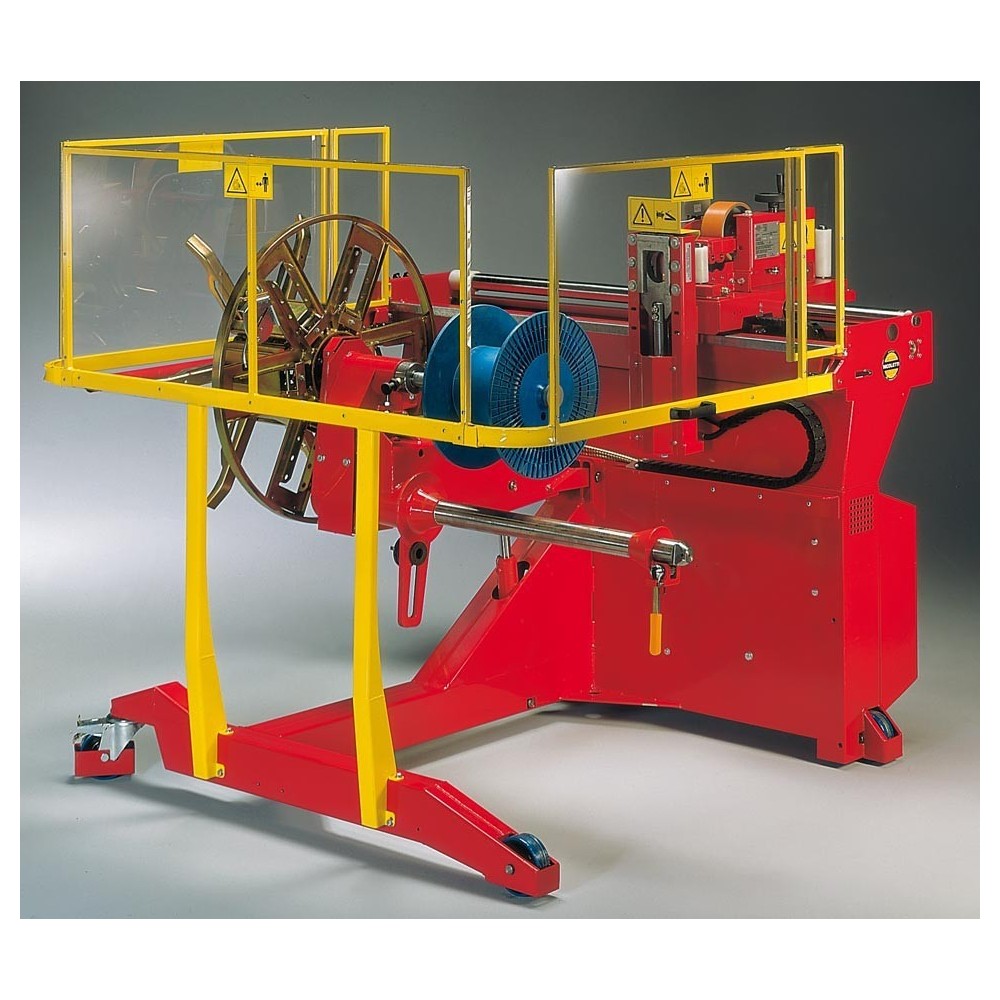

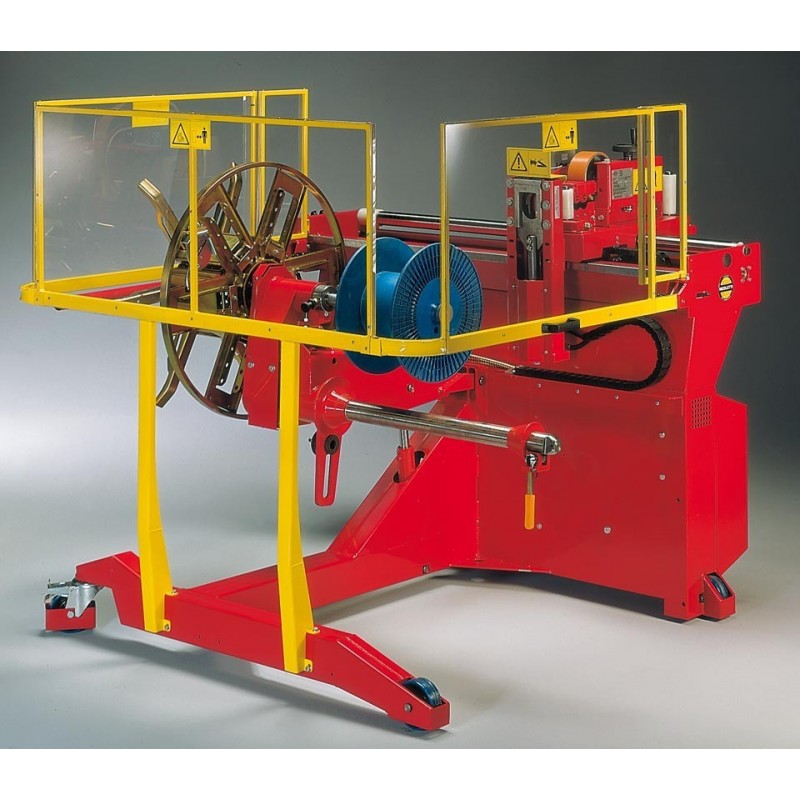

Item no. BOB-MAT-MF-U12-AP HIGH PERFORMANCE - More than 30-40 operations a day on average

Item no. BOB-MAT-MF-U12-AP
Zoom

BOB-MAT-MF-U12/PLC/SE1/TC60/ST-EL/OA10Q60-OM/OE-B-R-10/RIL-MOVE

Change performance choice >
Watch video

Features

  1. Electro-hydraulic lifting
  2. Vulkollan wheels. (two wheels and two castors)
  3. Fixed toothed drum shaft,  drum locking with rack-operated moveable cone
  4. Coiling head permanently attached
  5. Pushbutton-operated electronically controlled variable speed 0/70 rpm (without manual potentiometer) with automatic return to minimum speed
  6. Dual controls (coiling head side and drum side).
  7. Machine capable of operating unattended
  8. Supply voltage 380 V three phase (to be confirmed at order stage).
  9. Built-in coiling head Ø 1000mm
  10. Electro-hydraulic shears
  11. CE-approved safety guards fitted for protection.

Technical data sheet

Machine height (mm) 1500 mm
Machine width (mm) 2100 mm
Machine length (mm) 2300 mm
Empty weight (kg) 600 kg
Drums - maximum diameter (mm) 1250 mm
Drums - minimum diameter (mm) 600 mm
Drums - Maximum width (mm) 810 mm
Drums - Minimum width (mm) 300 mm
Drums- Max. weight capacity (kg) 1300 Kg
Coils - max. internal core diameter (mm) 520 mm
Coils - min. internal core diameter (mm) 320 mm
Coils - maximum width (mm) 200 mm
Coils - minimum width (mm) 90 mm
Coils - max. diameter (mm) 950 mm
Max. coil weight 250 kg
Total power (kW) 2 KW
Torque 274 Nm
Machine movement speed 4 km/h
Min./max. rpm (rpm at drum) 0-70 g/min

Accessories included

Zoom
Item no. PLC-BOB

Personal computer for industrial applications

DETAILS
Zoom
Item no. RIL-MOVE-2-MF

Motion detector

DETAILS
Zoom
Item no. OA/10Q/60/OM/N/I

Mechanical precision counter with display

DETAILS
Zoom
Item no. OE-B-R-10

Collapsible coiling head

DETAILS
Zoom
Item no. TC-1-60-SE-ST

Shears for cables max. Ø 60mm

DETAILS
Zoom
Item no. BP-10-50

Shaft for spools max. Ø 500mm min. Ø 100mm

DETAILS
Request quote

Accessories on request

Zoom
Item no. KIT-WI-241

Kit for wireless data communication

ADD TO QUOTE
DETAILS
Zoom
Item no. RIP-MOB-MF

Moveable guard

ADD TO QUOTE
DETAILS
Zoom
Item no. OA/10Q60/OM/MID-SO

Electronic precision counter with display

MID EUROPEAN TYPE APPROVAL

ADD TO QUOTE
DETAILS
Zoom
Item: Openable meter counter - OA10Q60OM-APRI

Openable meter counter

ADD TO QUOTE
DETAILS
Zoom

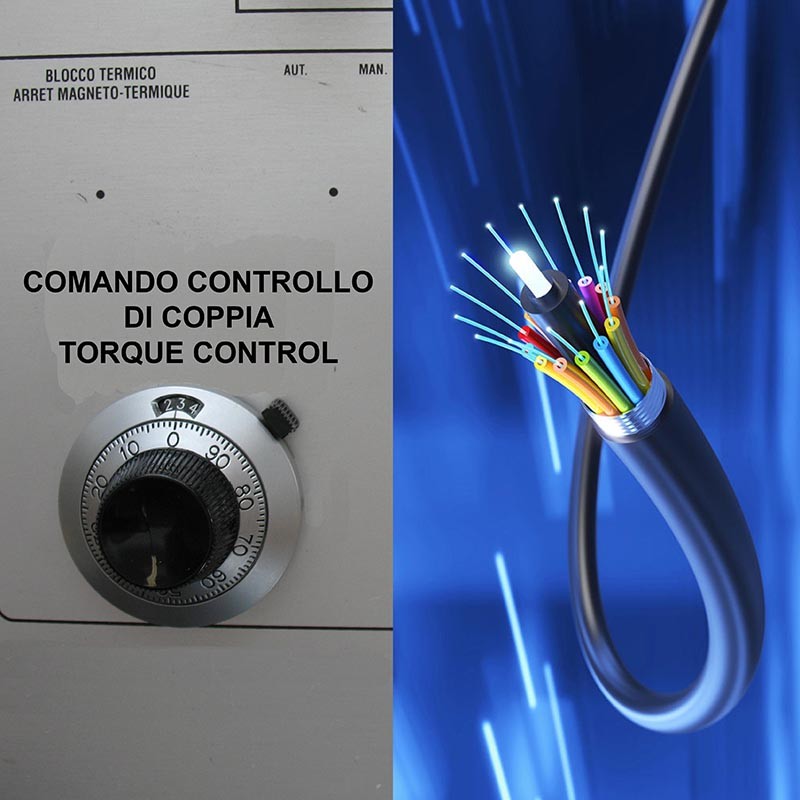

Item no. VSFC0011/BOB-U12 - Torque control

Torque control

ADD TO QUOTE
DETAILS
Art. MA
Zoom
Item no. MA

Automatic cable diameter measuring

ADD TO QUOTE
DETAILS
Zoom
Item no.OE-400

Quick-release coiling head

ADD TO QUOTE
DETAILS
Zoom
Item no. ERCA-LV

FOR MOVING THE UNIT WHEN EMPTY

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Zoom
Item no. ATF-LV-BOB

Front fitting for ERCA empty

ADD TO QUOTE
DETAILS
Zoom
Item no. ATL-LV-BOB

Side fitting for ERCA empty

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-ERCA-LV

Battery for moving machine independently when empty

ADD TO QUOTE
DETAILS
Zoom
Item no. ERCA-PC

FOR MOVING THE UNIT WHEN LOADED

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Zoom
Item no. ATL-PC-BOB

Side fitting for ERCA heavy and loaded

ADD TO QUOTE
DETAILS
Zoom
Item no. ATF-PC-BOB

Front fitting for ERCA loaded

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-ERCA-PC

Battery for moving machine independently when loaded

ADD TO QUOTE
DETAILS
Zoom
Item no. BA-BOB/24/180

Battery-powered power supply for running machines fully independent from 220-380V mains

ADD TO QUOTE
DETAILS
Zoom
Item no. COL-LANE-1

Slip ring overhead cable connection

ADD TO QUOTE
DETAILS
Zoom
Item no. TELEA-ET

Remote support via Ethernet

ADD TO QUOTE
DETAILS
Zoom
Item no. TC-BA-30

Battery-powered cable cutters

ADD TO QUOTE
DETAILS
Zoom
Item no. CHIOD50-BAT

Battery-powered nail gun

ADD TO QUOTE
DETAILS
Request quote
