| Machine height (mm) | 1500 mm |
| Machine width (mm) | 2100 mm |
| Machine length (mm) | 2300 mm |
| Empty weight (kg) | 600 kg |
| Drums - maximum diameter (mm) | 1250 mm |
| Drums - minimum diameter (mm) | 600 mm |
| Drums - Maximum width (mm) | 810 mm |
| Drums - Minimum width (mm) | 300 mm |
| Drums- Max. weight capacity (kg) | 1300 Kg |
| Coils - max. internal core diameter (mm) | 620 mm |
We inform our customers that our offices will be closed from 21.12.2024 to 06.01.2025. The technical teams for urgent maintenance of the equipments will stay available for you
Product added to your cart
Quantity:
Total:
There are 0 items in your cart.
Your cart contains an item.
Product total
(Tax excluded)
Shipping total (Tax excluded)
To be determined
Total
(Tax excluded)

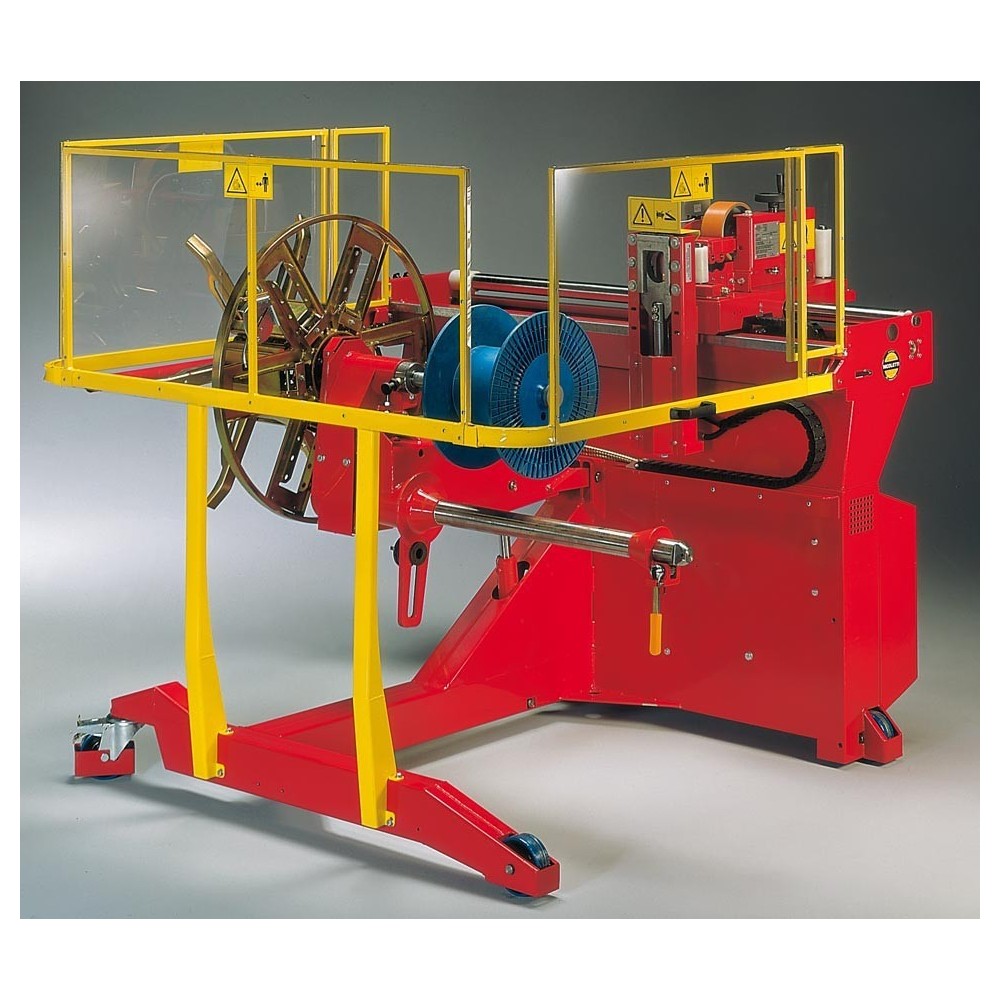

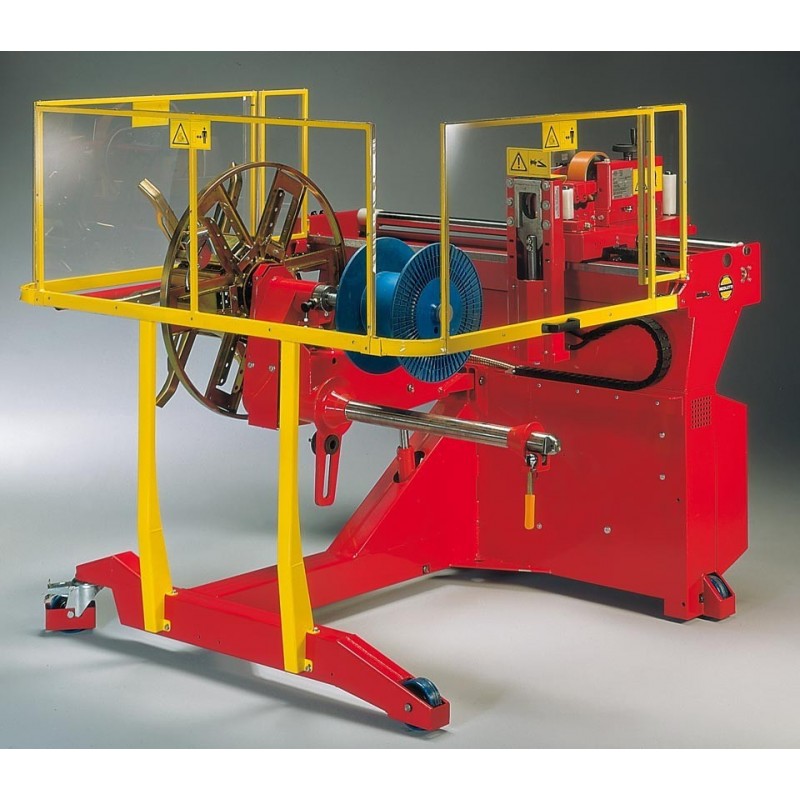

BOB-MAT-MF-U12-BA LOW PERFORMANCE - max. 20 operations a day on average
BOB-MAT-MF-U12/OA10Q60/NE-218/OE-B-10
Technical data sheet
| Coils - min. internal core diameter (mm) | 320 mm |
| Coils - maximum width (mm) | 220 mm |
| Coils - minimum width (mm) | 115 mm |
| Coils - max. diameter (mm) | 950 mm |
| Max. coil weight | 250 kg |
| Total power (kW) | 1,1 KW |
| Torque | 274 Nm |
| Machine movement speed | 4 Km/h |
| Min./max. rpm (rpm at drum) | 0-70 g/min |
Accessories included
Item no. OA/10Q60
Cable measuring device
DETAILS
Item no. OE-B-10
Coiling head
DETAILS
Item no. STRAT-MAN
Layering device
DETAILS
Item no. NE-218
Electronic programmer/counter
DETAILS
Item no. BP-10-50
Shaft for spools max. Ø 500mm min. Ø 100mm
DETAILS
Accessories on request
Item no. RIL-MOVE-2-MF
Motion detector
ADD TO QUOTE
DETAILS
Item no. KIT-WI
Kit for wireless data communication
ADD TO QUOTE
DETAILS
Item no. RIP-MOB-MF
Moveable guard
ADD TO QUOTE
DETAILS
Item: Openable meter counter - OA10Q60OM-APRI
Openable meter counter
ADD TO QUOTE
DETAILS
Item no. VSFC0011/BOB-U12 - Torque control
Torque control
ADD TO QUOTE
DETAILS
Item no. TC-BA-30
Battery-powered cable cutters
ADD TO QUOTE
DETAILS
Item no. CHIOD50-BAT
Battery-powered nail gun
ADD TO QUOTE
DETAILS
