| Machine height (mm) | 1500 mm |
| Machine width (mm) | 2000 mm |
| Machine length (mm) | 1800 mm |
| Empty weight (kg) | 400 kg |
| Drums - maximum diameter (mm) | 1000 mm |
| Drums - minimum diameter (mm) | 600 mm |
| Drums - Maximum width (mm) | 710 mm |
| Drums - Minimum width (mm) | 300 mm |
| Drums- Max. weight capacity (kg) | 700 Kg |
| Coils - max. internal core diameter (mm) | 520 mm |
We inform our customers that our offices will be closed from 21.12.2024 to 06.01.2025. The technical teams for urgent maintenance of the equipments will stay available for you
Product added to your cart
Quantity:
Total:
There are 0 items in your cart.
Your cart contains an item.
Product total
(Tax excluded)
Shipping total (Tax excluded)
To be determined
Total
(Tax excluded)

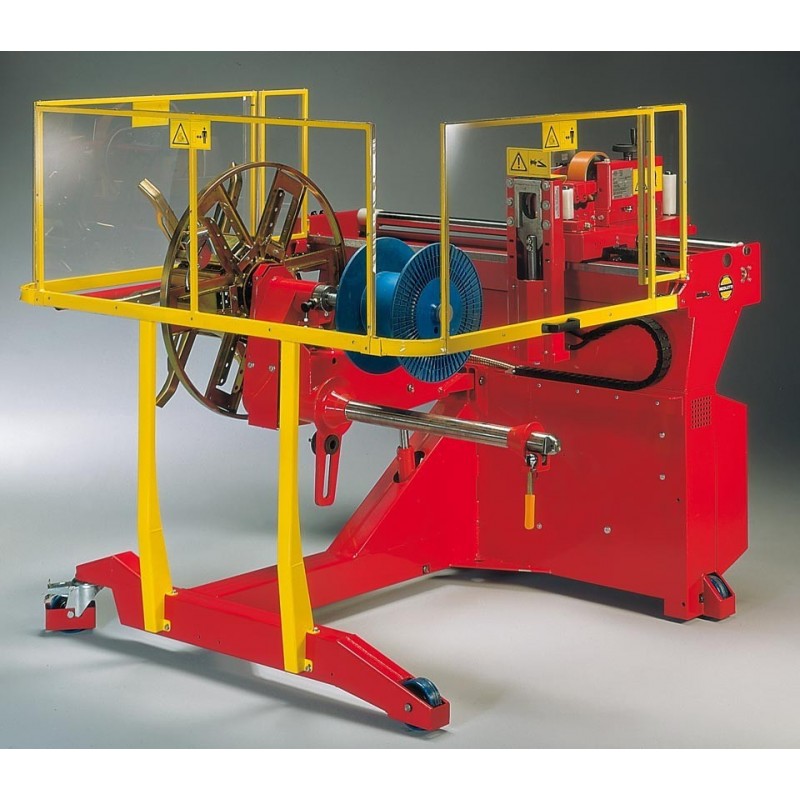

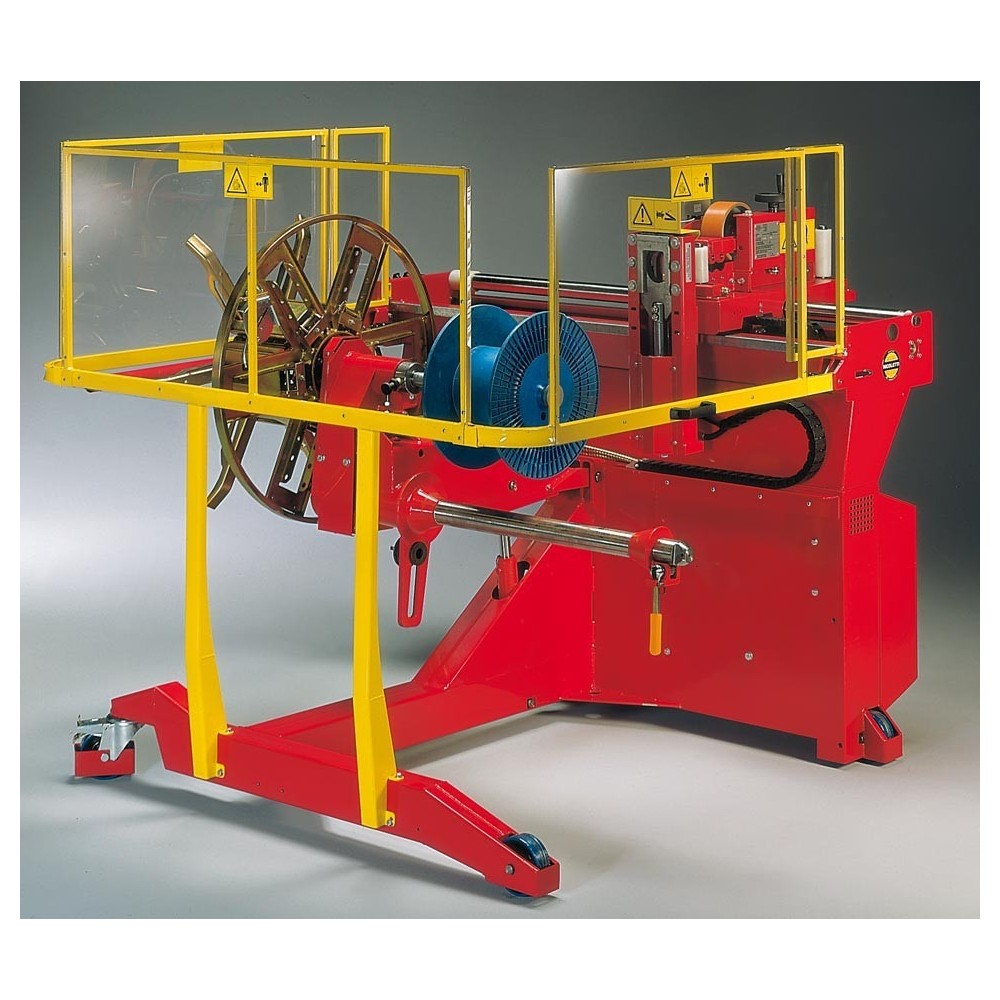

Item no. BOB-MAT-MF-AP HIGH PERFORMANCE - More than 30-40 operations a day on average
BOB-MAT-MF/PLC/SE1/TC60/ST-EL/OA10Q60-OM/OE-B-R-10/RIL-MOVE
Technical data sheet
| Coils - min. internal core diameter (mm) | 320 mm |
| Coils - maximum width (mm) | 200 mm |
| Coils - minimum width (mm) | 90 mm |
| Coils - max. diameter (mm) | 950 mm |
| Max. coil weight | 250 kg |
| Total power (kW) | 2 KW |
| Torque | 274 Nm |
| Machine movement speed | 4 km/h |
| Min./max. rpm (rpm at drum) | 0-70 g/min |
Accessories included

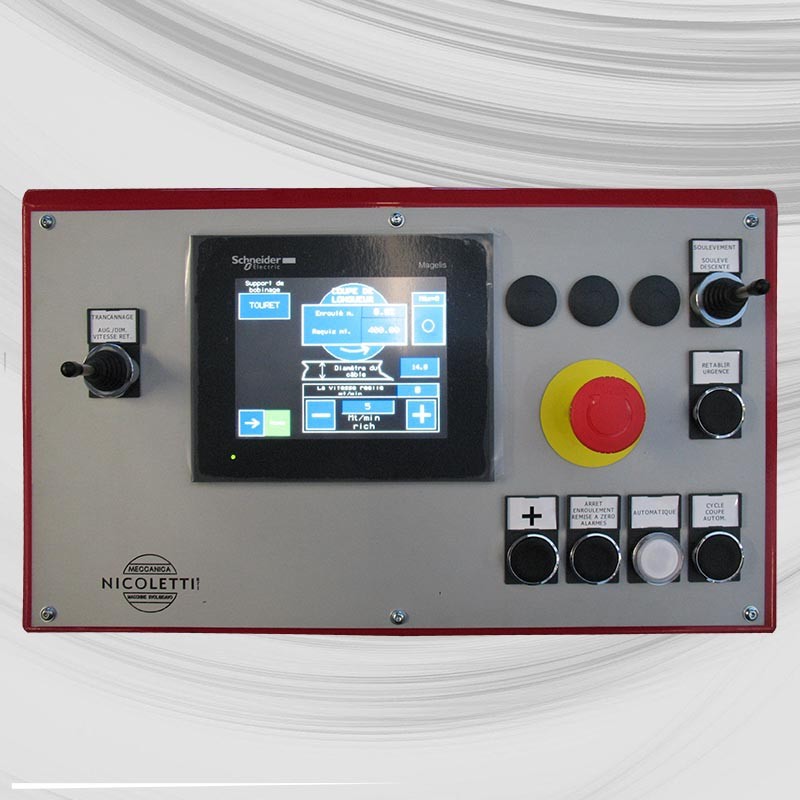

Item no. PLC-BOB
Personal computer for industrial applications
DETAILS

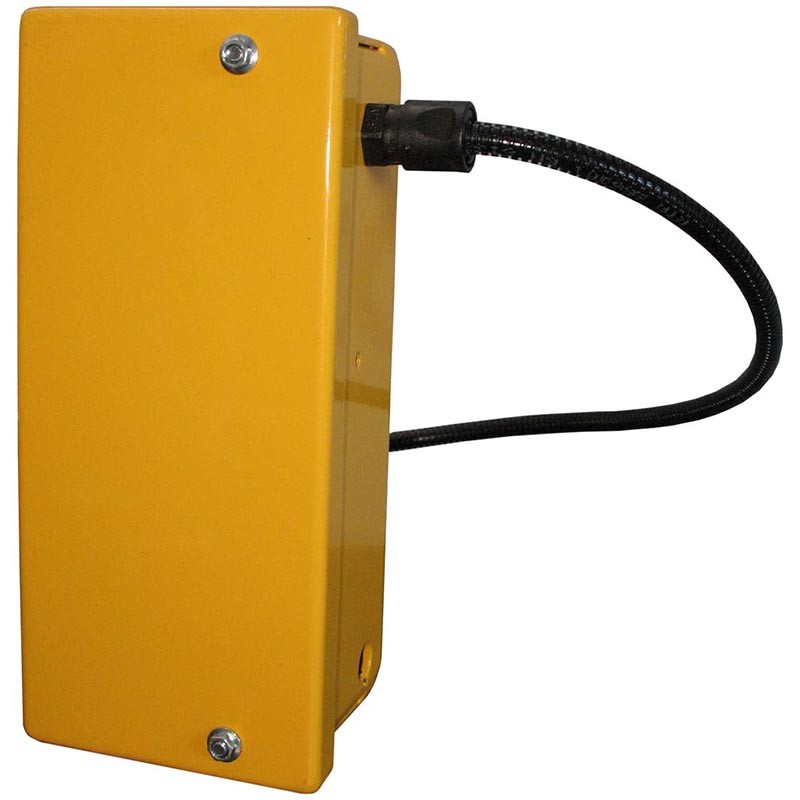

Item no. RIL-MOVE-2-MF
Motion detector
DETAILS

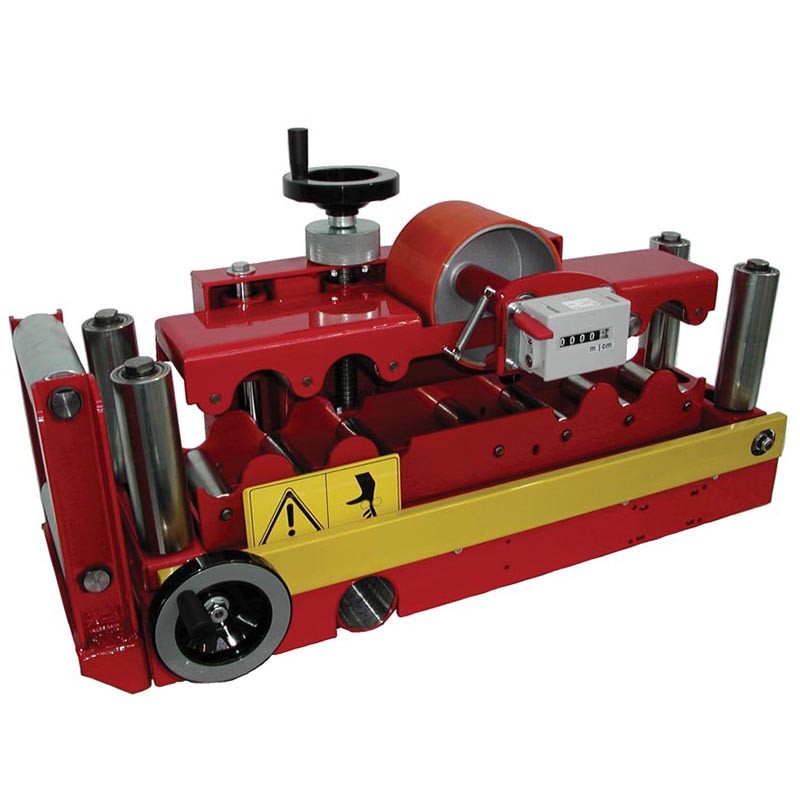

Item no. OA/10Q/60/OM/N/I
Mechanical precision counter with display
DETAILS

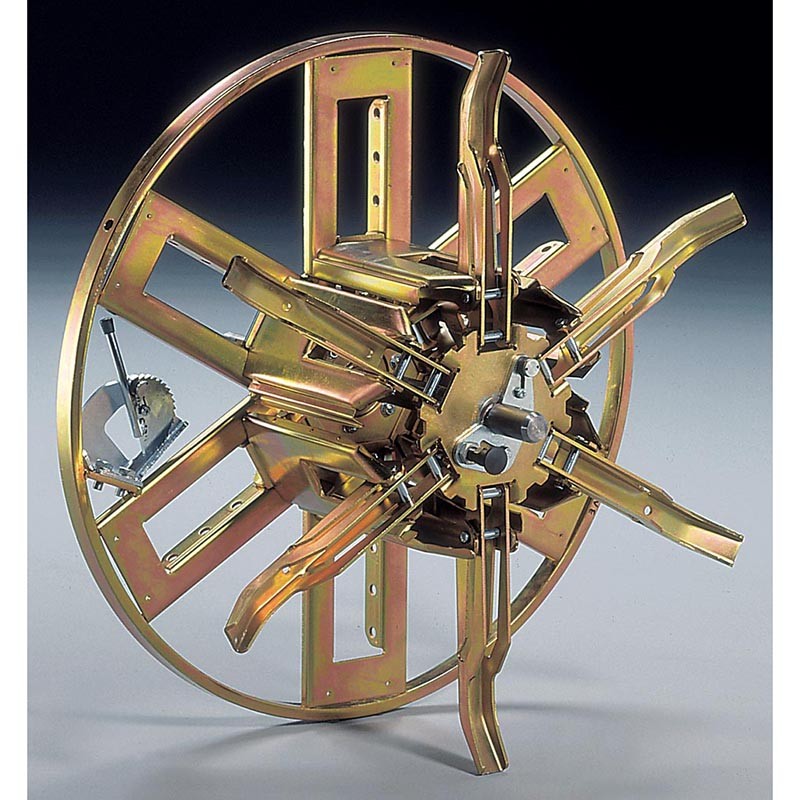

Item no. OE-B-R-10
Collapsible coiling head
DETAILS

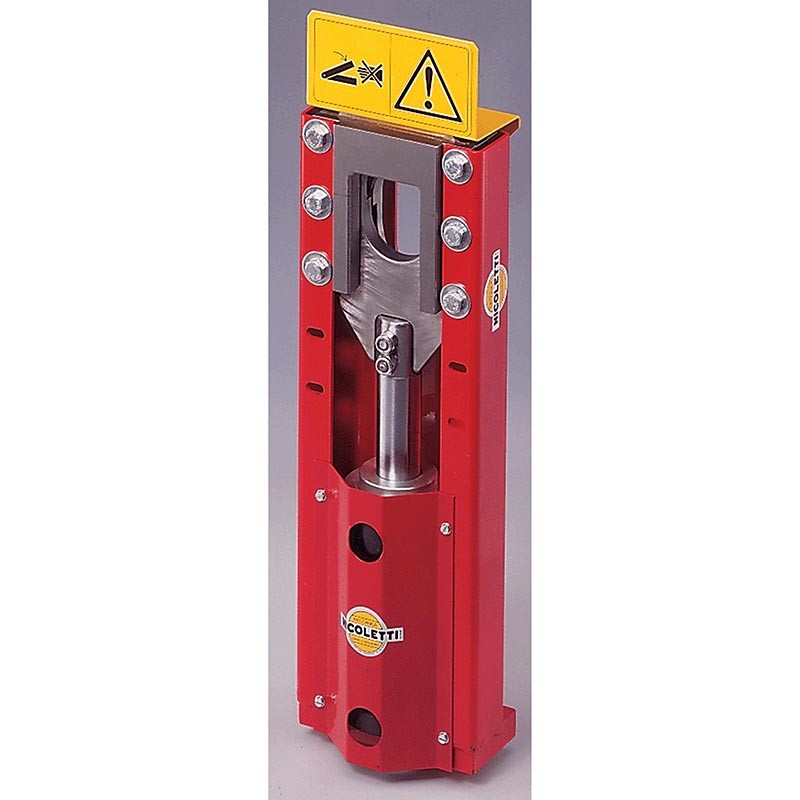

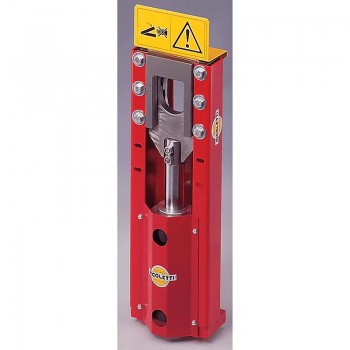

Item no. TC-1-60-SE-ST
Shears for cables max. Ø 60mm
DETAILS

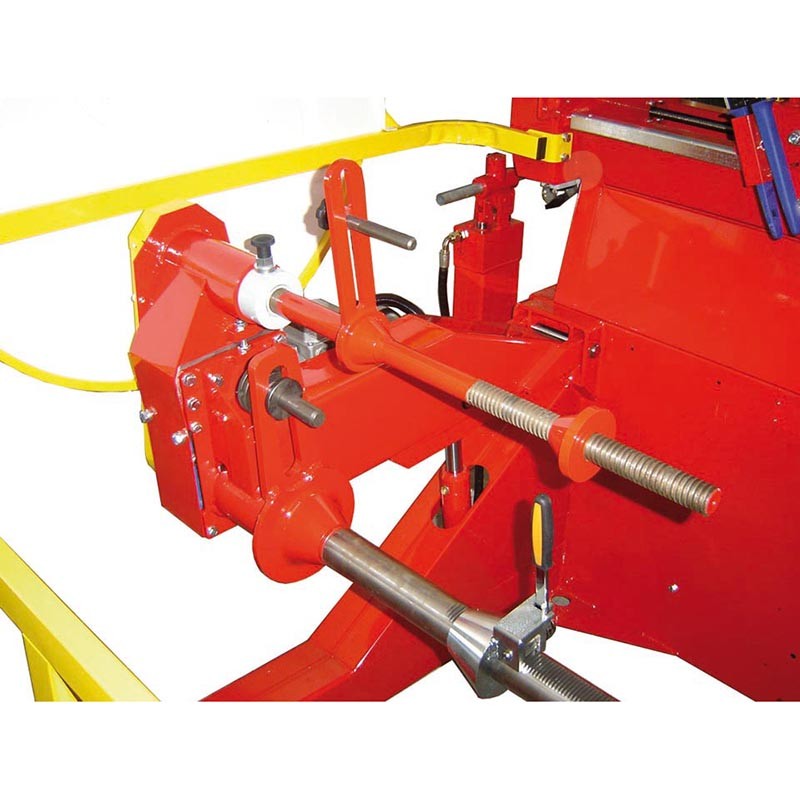

Item no. BP-10-50
Shaft for spools max. Ø 500mm min. Ø 100mm
DETAILS
Accessories on request

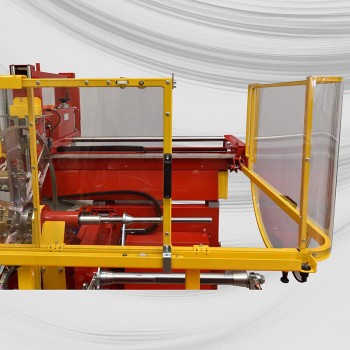

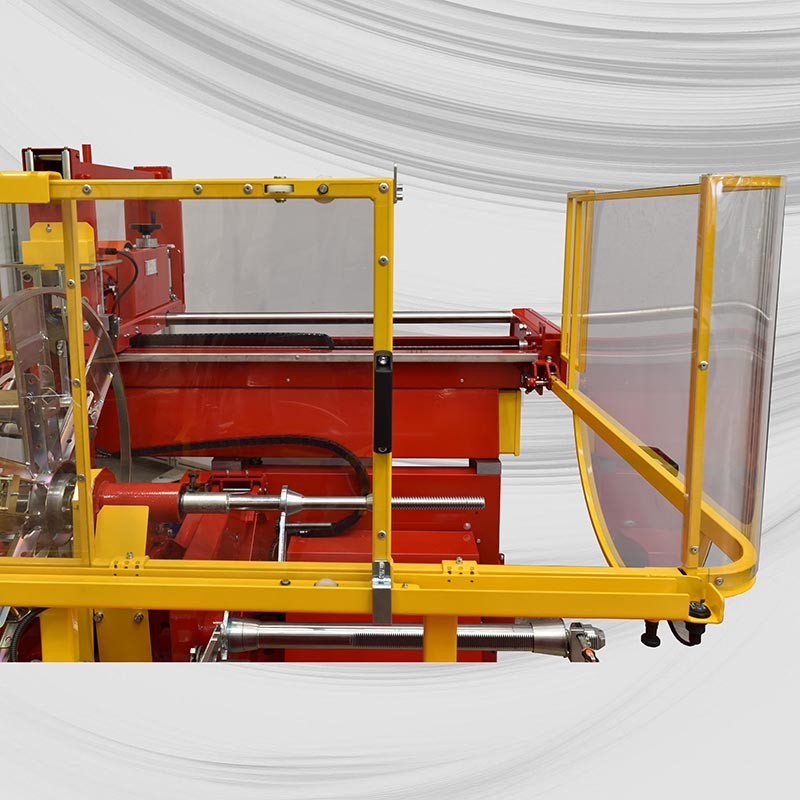

Item no. RIP-MOB-MF
Moveable guard
ADD TO QUOTE
DETAILS

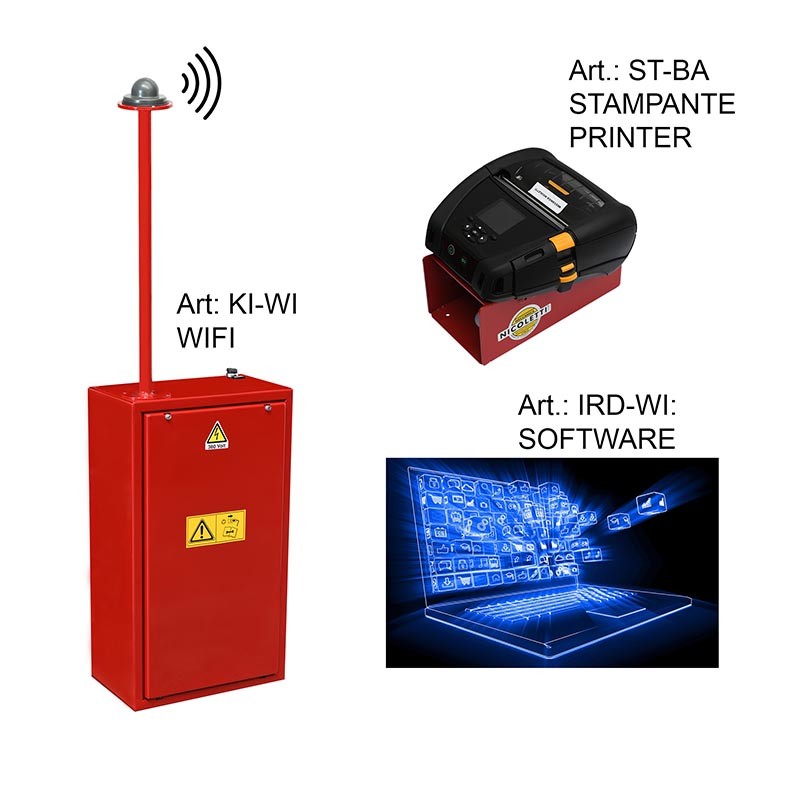

Item no. KIT-WI-241
Kit for wireless data communication
ADD TO QUOTE
DETAILS

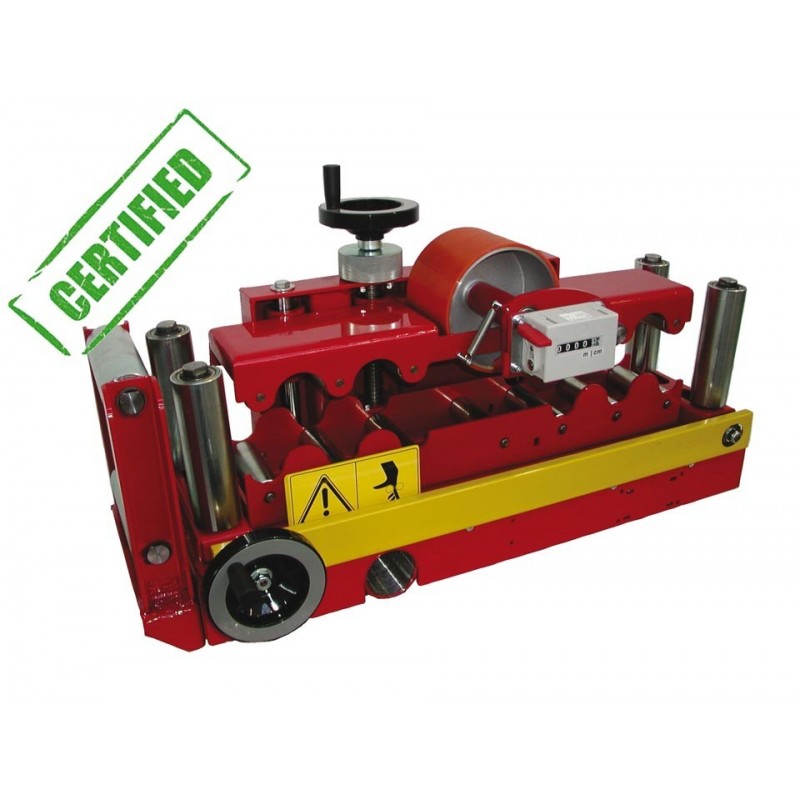

Item no. OA/10Q60/OM/MID-SO
Electronic precision counter with display
MID EUROPEAN TYPE APPROVAL
ADD TO QUOTE
DETAILS

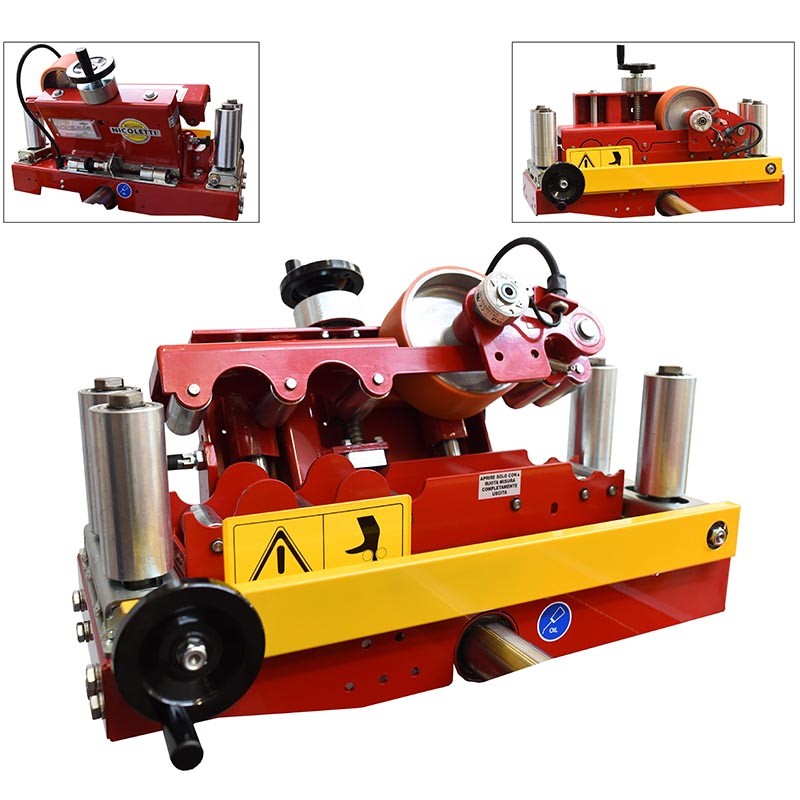

Item: Openable meter counter - OA10Q60OM-APRI
Openable meter counter
ADD TO QUOTE
DETAILS

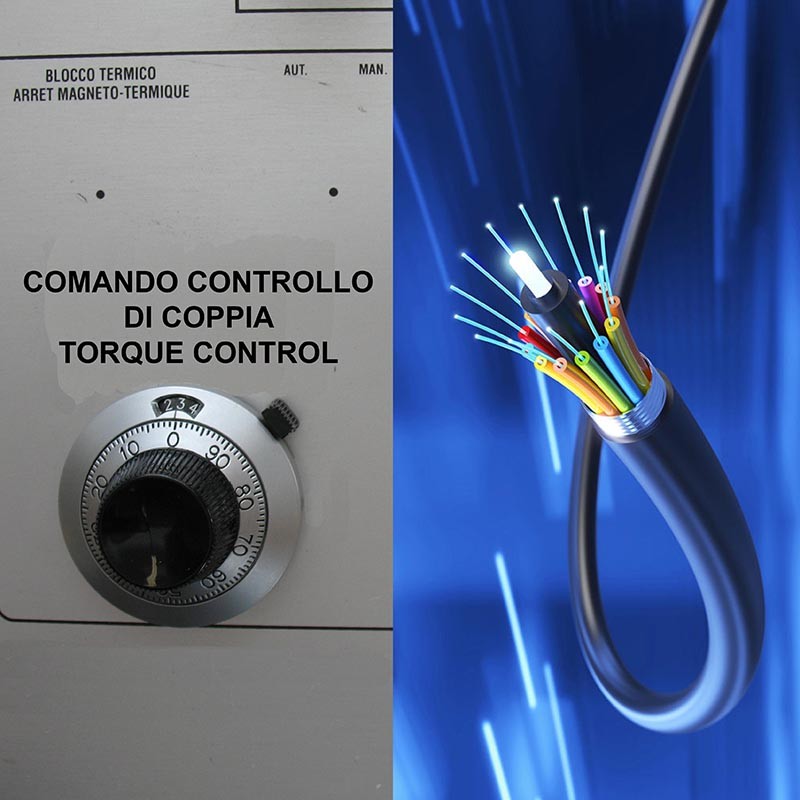

Item no. VSFC0011/BOB - Torque control
Torque control
ADD TO QUOTE
DETAILS

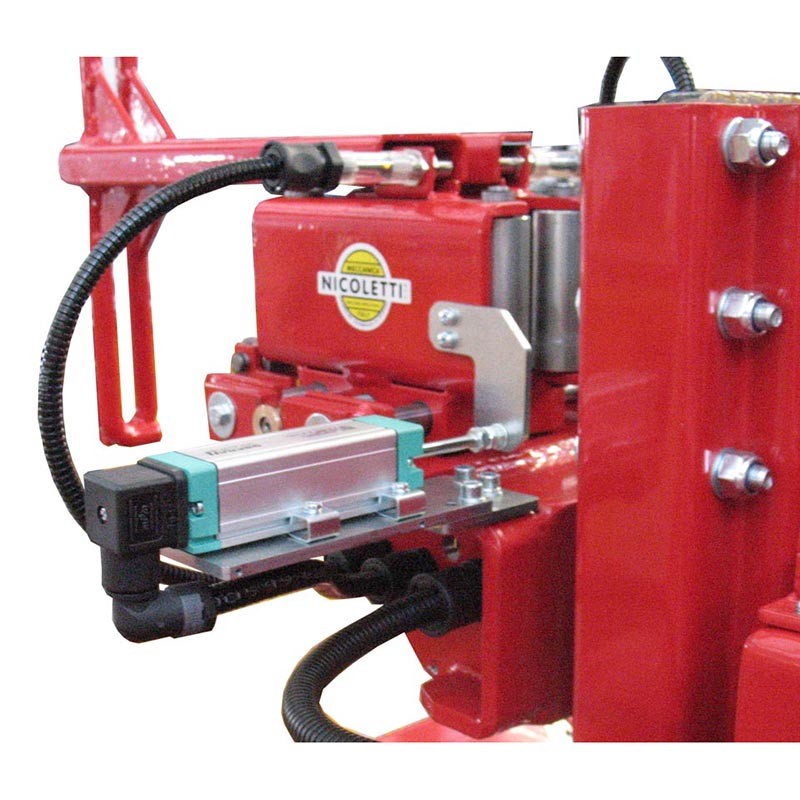

Item no. MA
Automatic cable diameter measuring
ADD TO QUOTE
DETAILS

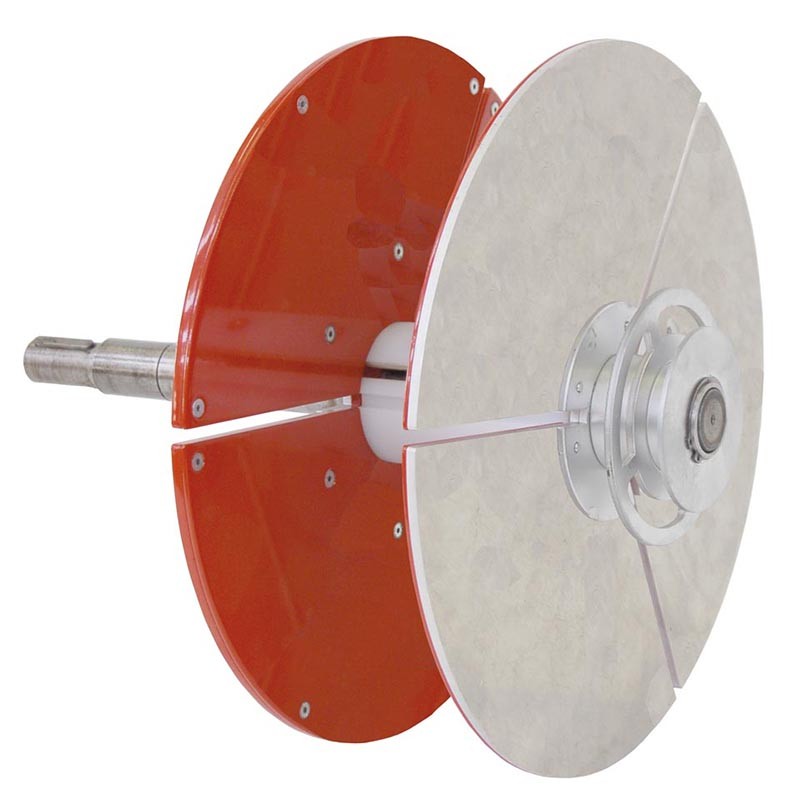

Item no.OE-400
Quick-release coiling head
ADD TO QUOTE
DETAILS

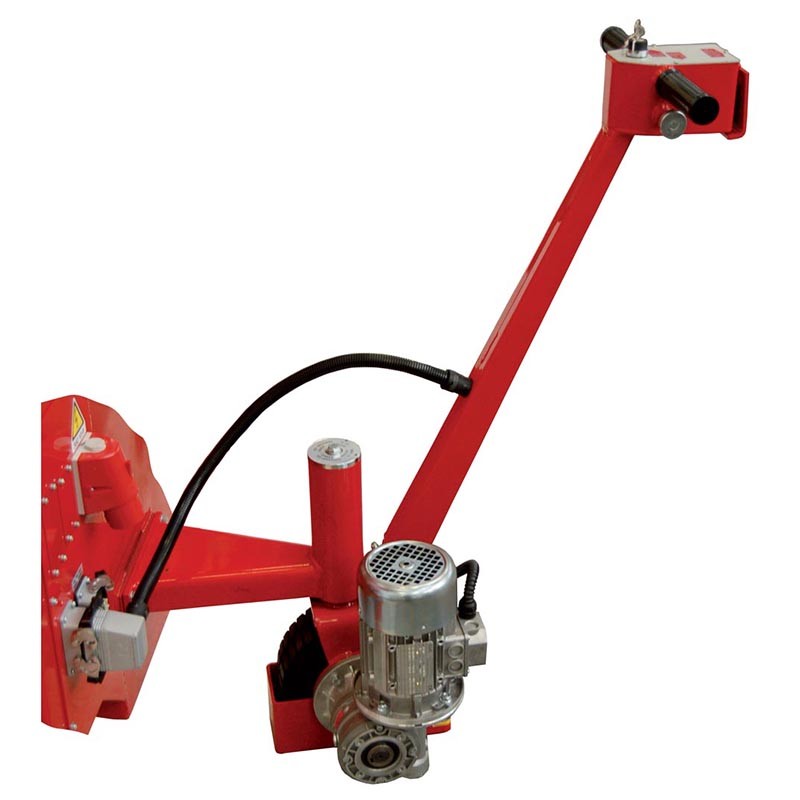

Item no. ERCA-LV
FOR MOVING THE UNIT WHEN EMPTY
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS

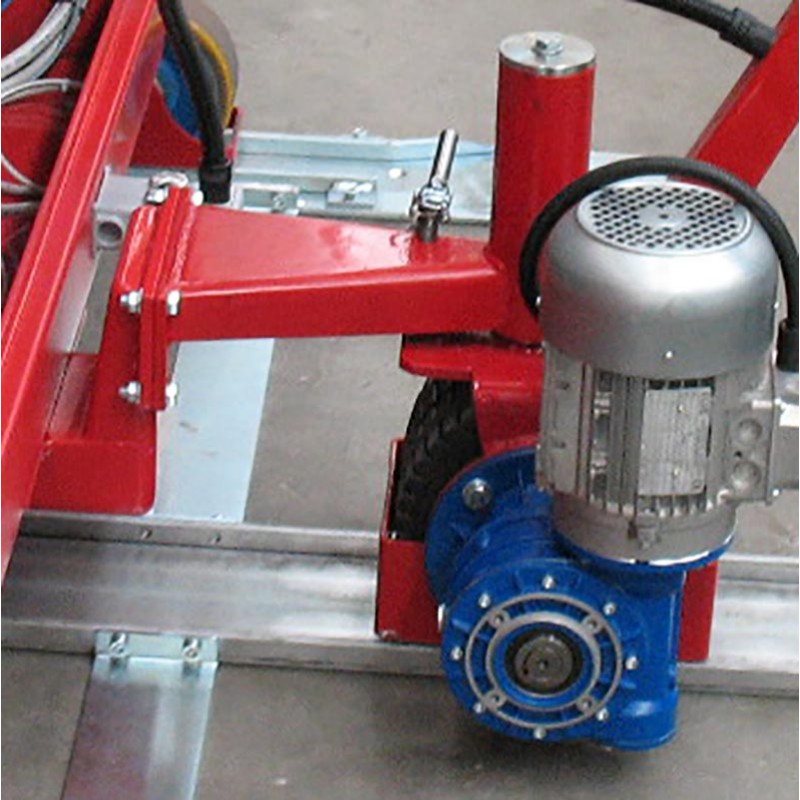

Item no. ATF-LV-BOB
Front fitting for ERCA empty
ADD TO QUOTE
DETAILS

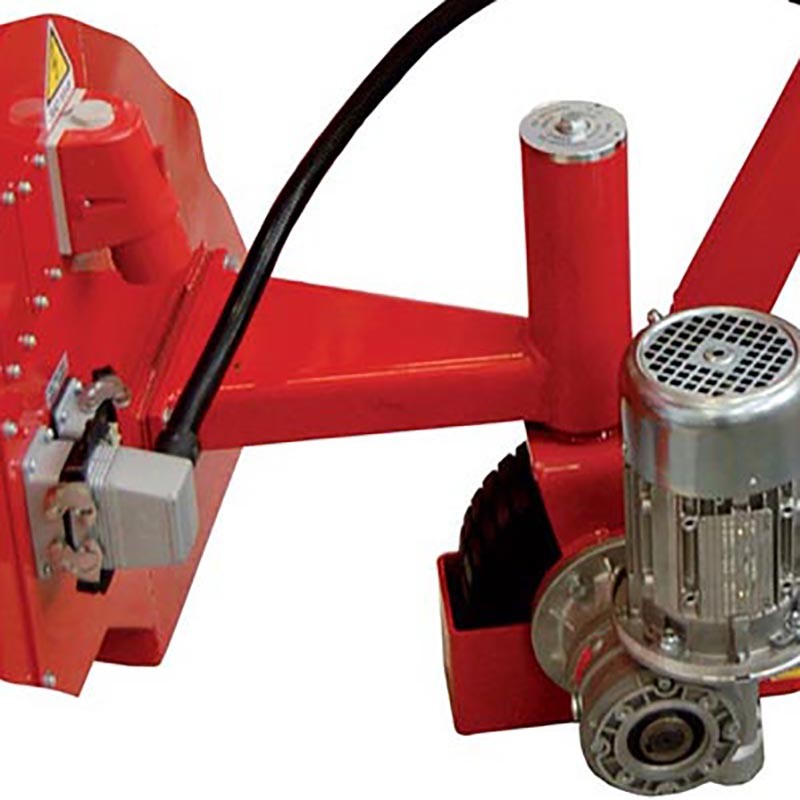

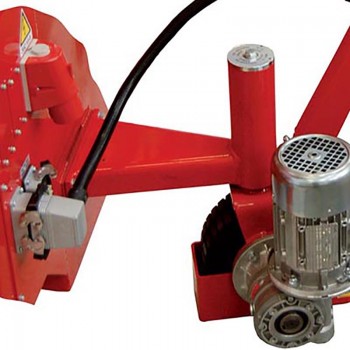

Item no. ATL-LV-BOB
Side fitting for ERCA empty
ADD TO QUOTE
DETAILS
Item no. BA-ERCA-LV
Battery for moving machine independently when empty
ADD TO QUOTE
DETAILS

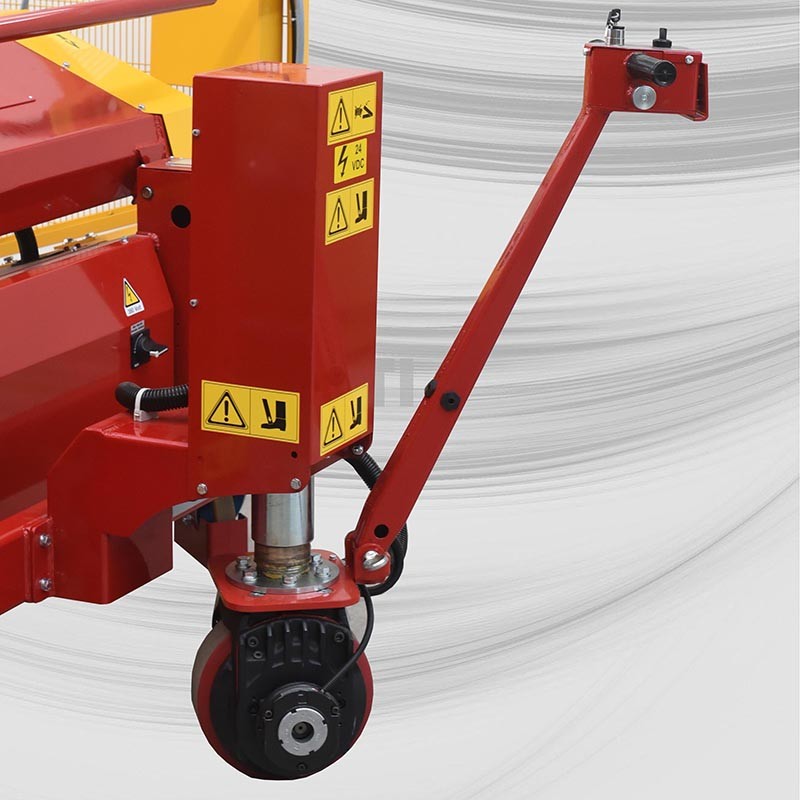

Item no. ERCA-PC
FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)
ADD TO QUOTE
DETAILS

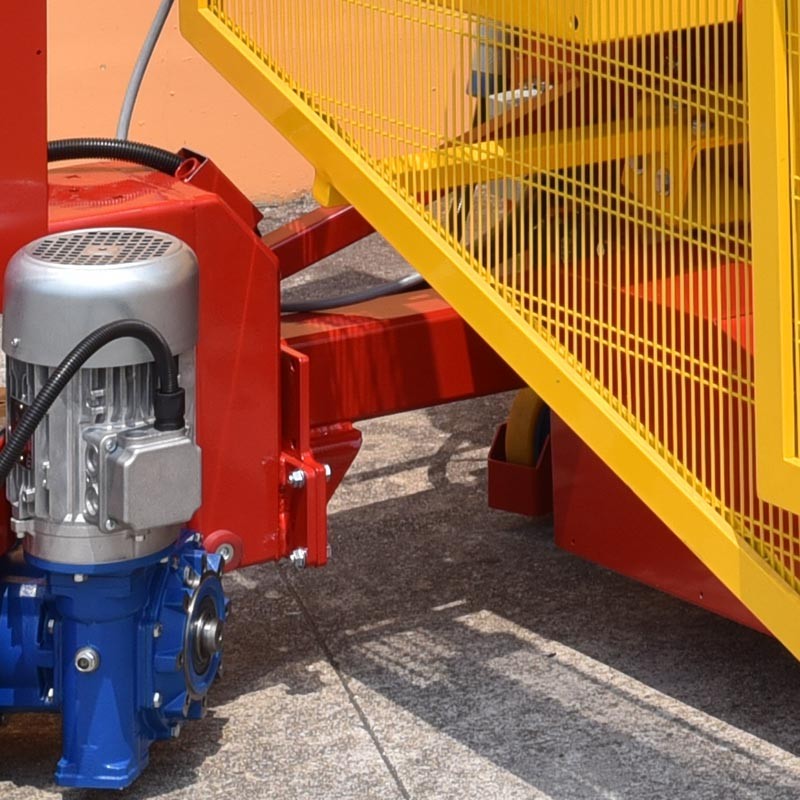

Item no. ATL-PC-BOB
Side fitting for ERCA heavy and loaded
ADD TO QUOTE
DETAILS

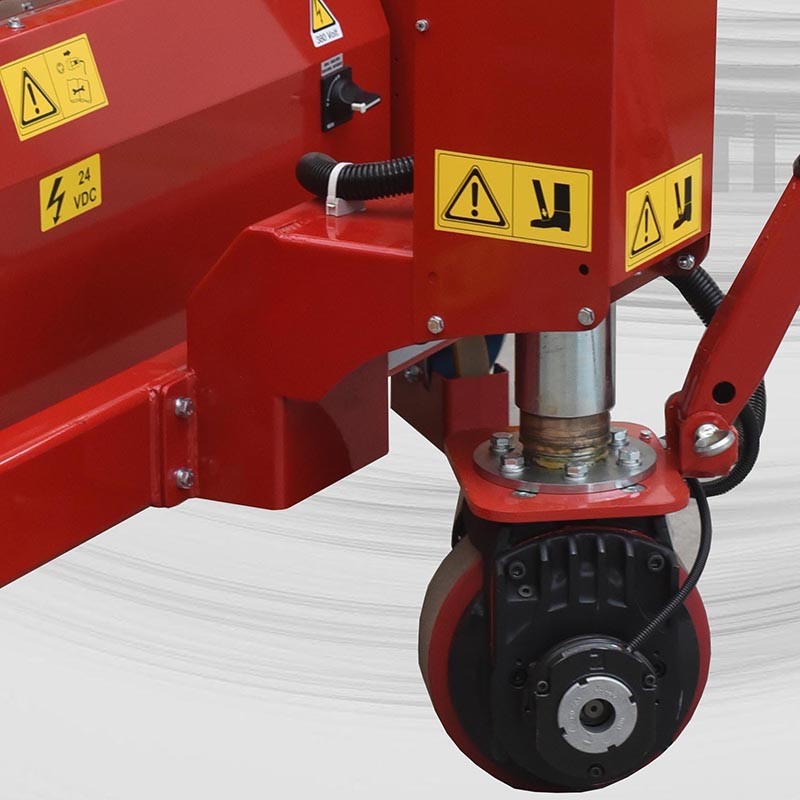

Item no. ATF-PC-BOB
Front fitting for ERCA loaded
ADD TO QUOTE
DETAILS

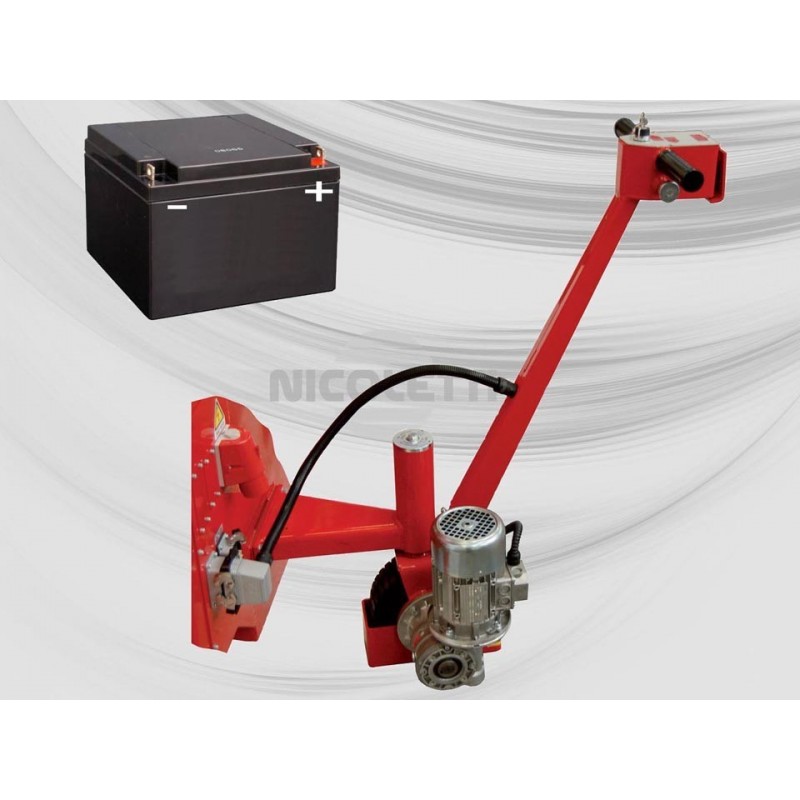

Item no. BA-ERCA-PC
Battery for moving machine independently when loaded
ADD TO QUOTE
DETAILS

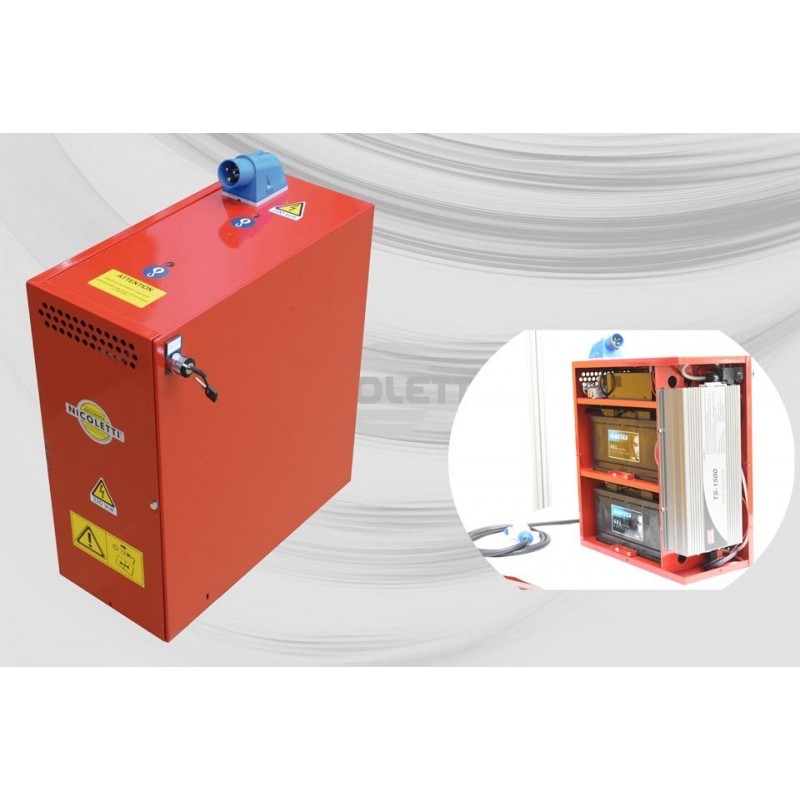

Item no. BA-BOB/24/180
Battery-powered power supply for running machines fully independent from 220-380V mains
ADD TO QUOTE
DETAILS

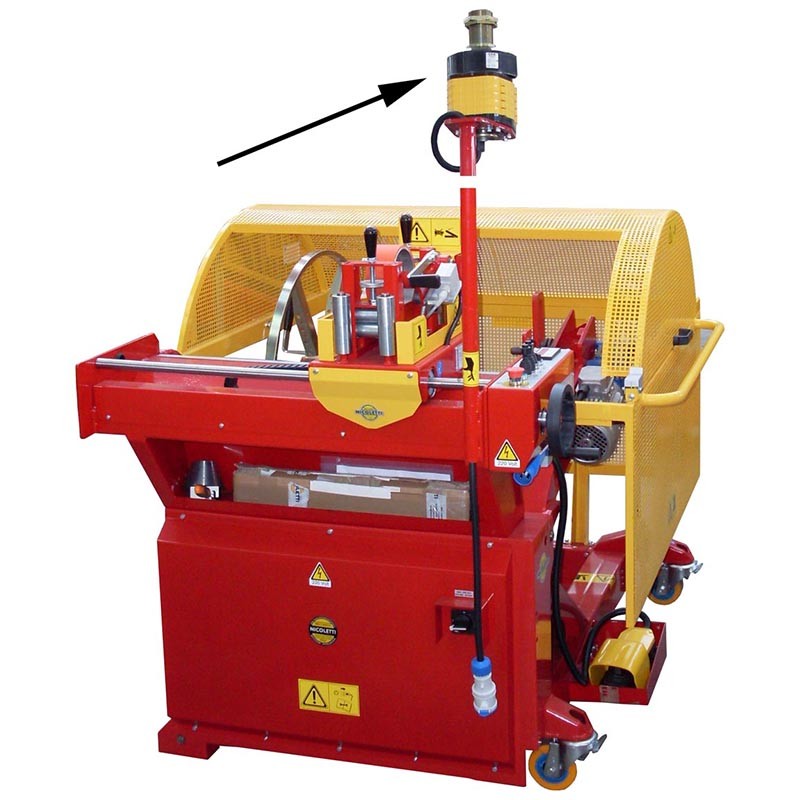

Item no. COL-LANE-1
Slip ring overhead cable connection
ADD TO QUOTE
DETAILS

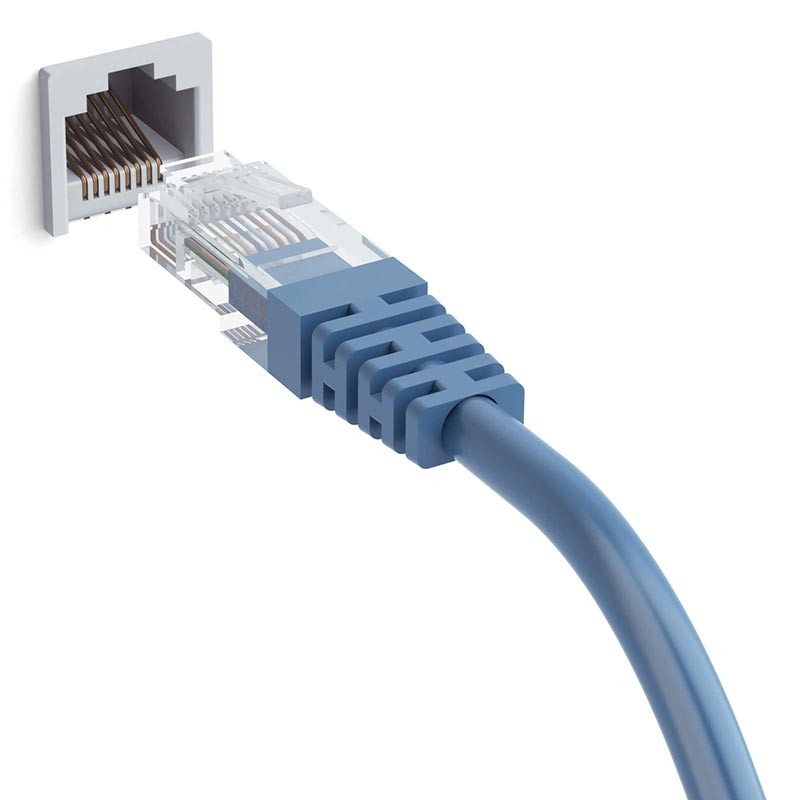

Item no. TELEA-ET
Remote support via Ethernet
ADD TO QUOTE
DETAILS
Item no. TC-BA-30
Battery-powered cable cutters
ADD TO QUOTE
DETAILS

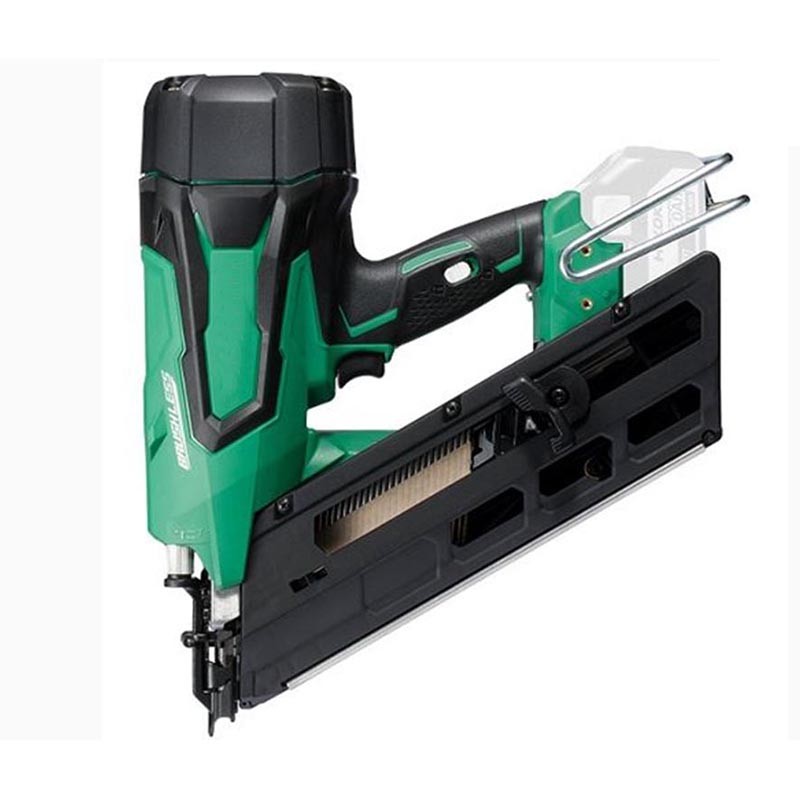

Item no. CHIOD50-BAT
Battery-powered nail gun
ADD TO QUOTE
DETAILS
