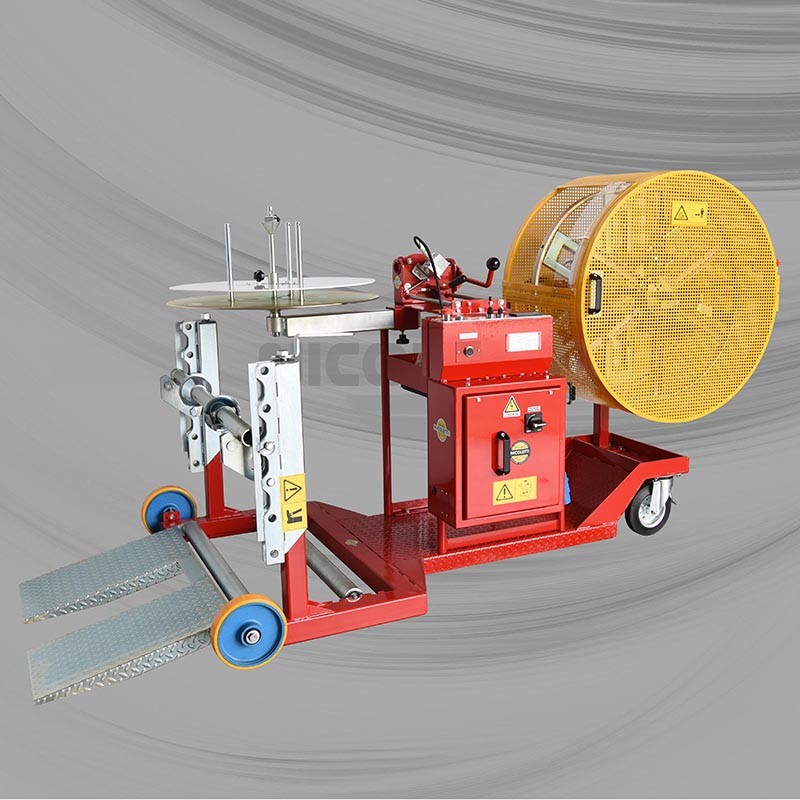

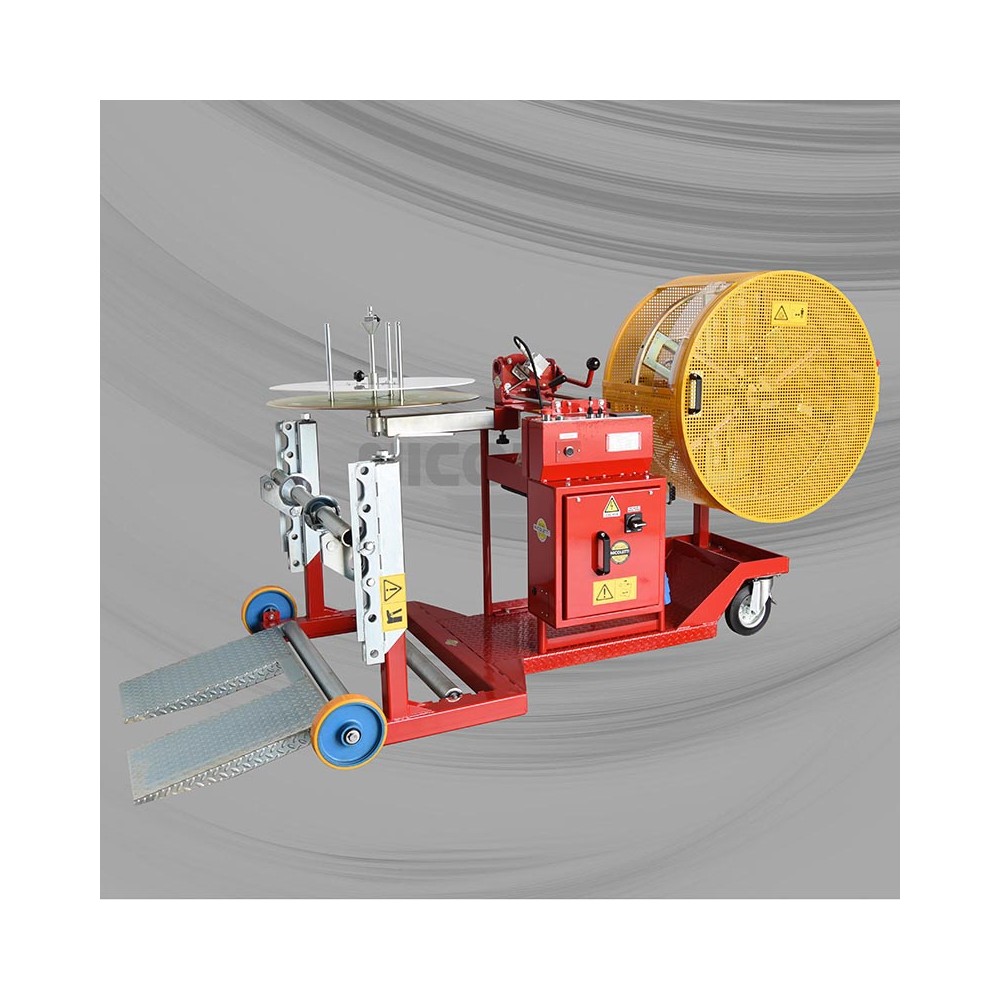

Item no. ASB1-M - Motorized drum-to-coil and coil-to-coil rewinder HIGH PERFORMANCE - For low workloads

Item no. ASB1-M - Motorized drum-to-coil and coil-to-coil rewinder
Zoom

ASB1-M/VEL-VAR/CM-15/NE-218/OE-800-R-AN

Change performance choice >
Watch video

Features

  • Coiling head Ø800
  • Payoff from drum max. Ø1200mm 1600kg and coil
  • Self-locking wheels (two wheels and two castors).
  • Cable measuring device max. Ø 35mm.
  • Manual cutter max. Ø 15mm.
  • Measuring accuracy ±1.5% on coated round cables.
  • Supply voltage 220 V single phase.
  • CE-approved safety guards fitted for protection.
  • Motorized variable-speed machine.
  • Electronic length preset counter
  • Collapsible coiling head

Technical data sheet

Machine height (mm) 1114 mm
Machine width (mm) 1160 mm
Machine length (mm) 2163 mm
Weight (kg) 250 kg
Total power (kW) 0.37 KW
Min./max. rpm (rpm at coil) 0-70 g/min
Coiling head - max. coil core diameter (mm) 620 mm
Coiling head - min. coil core diameter (mm) 320 mm
Coiling head - max. coil width (mm) 220 mm
Coiling head - min. coil width (mm) 115 mm
Payoff - Max. drum diameter (mm) 1200 mm
Payoff - Min. drum diameter (mm) 600 mm
Payoff - Max. drum capacity 1600 kg
Uncoiler - Plate diameter (mm) 700 mm
Uncoiler - Max. coil core diameter (mm) 320 mm
Uncoiler - Min. coil core diameter (mm) 80 mm
Uncoiler - Coil height (mm) 250 mm
Load capacity (kg) 250 kg

Accessories included

Zoom

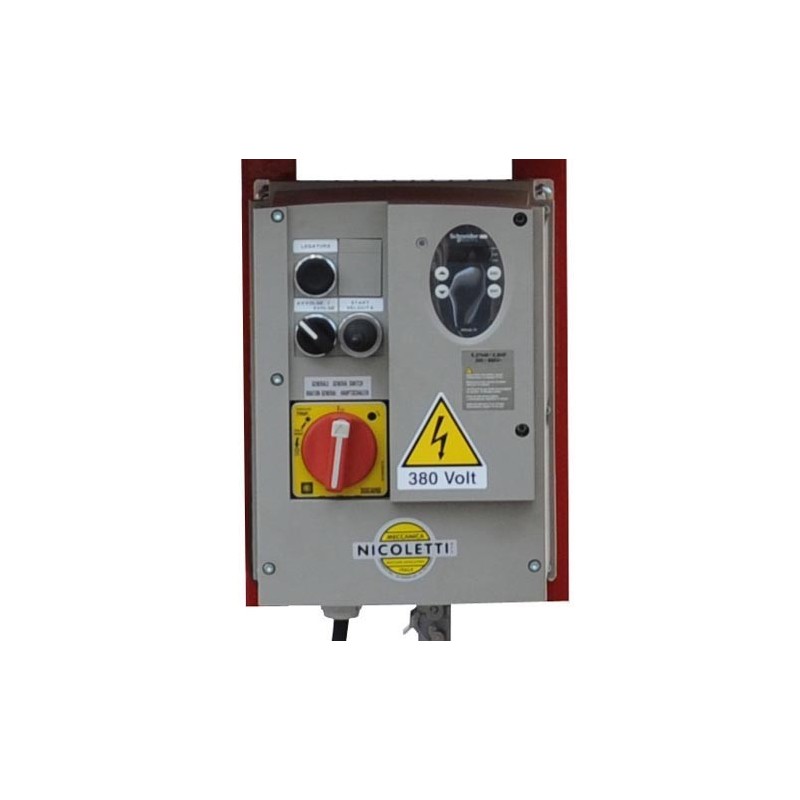

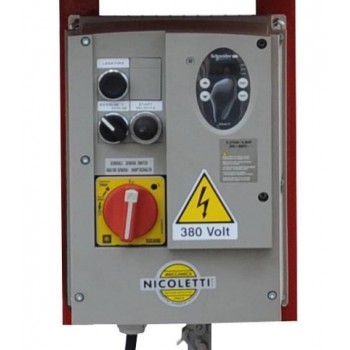

Item no. VEL-VAR

Variable speed

DETAILS
Zoom
Item no. CM-15

Cable measuring device

DETAILS
Zoom
Item no. OE-800-R-AN

Coiling head

DETAILS
Zoom
Item no. NE-218

Electronic programmer/counter

DETAILS
Request quote

Accessories on request

Zoom
Item no. KIT-WI

Kit for wireless data communication

ADD TO QUOTE
DETAILS
Zoom

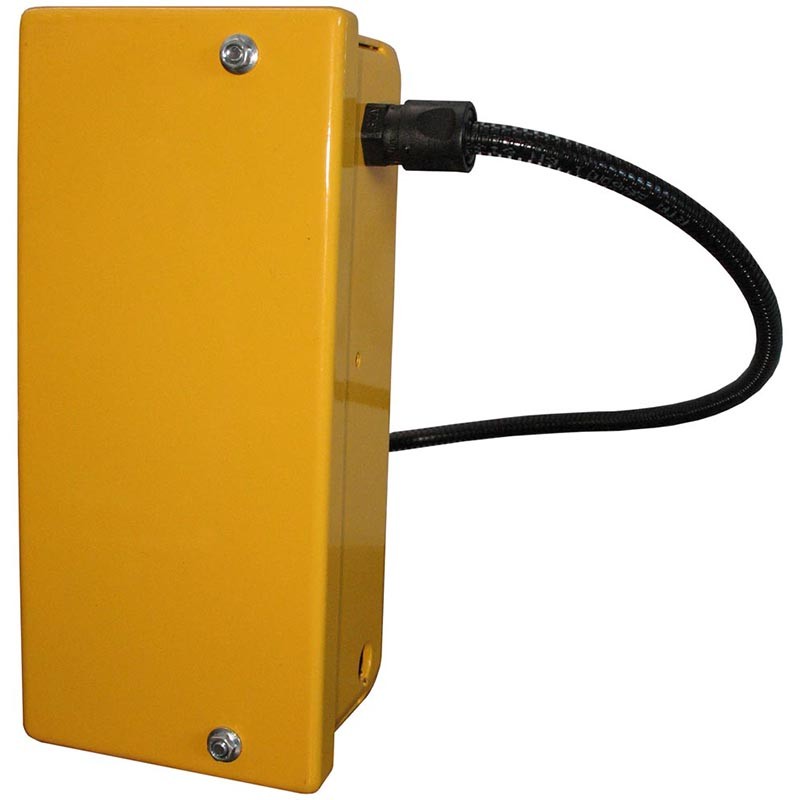

Item no. RIL-MOVE-2

Motion detector

ADD TO QUOTE
DETAILS
Zoom

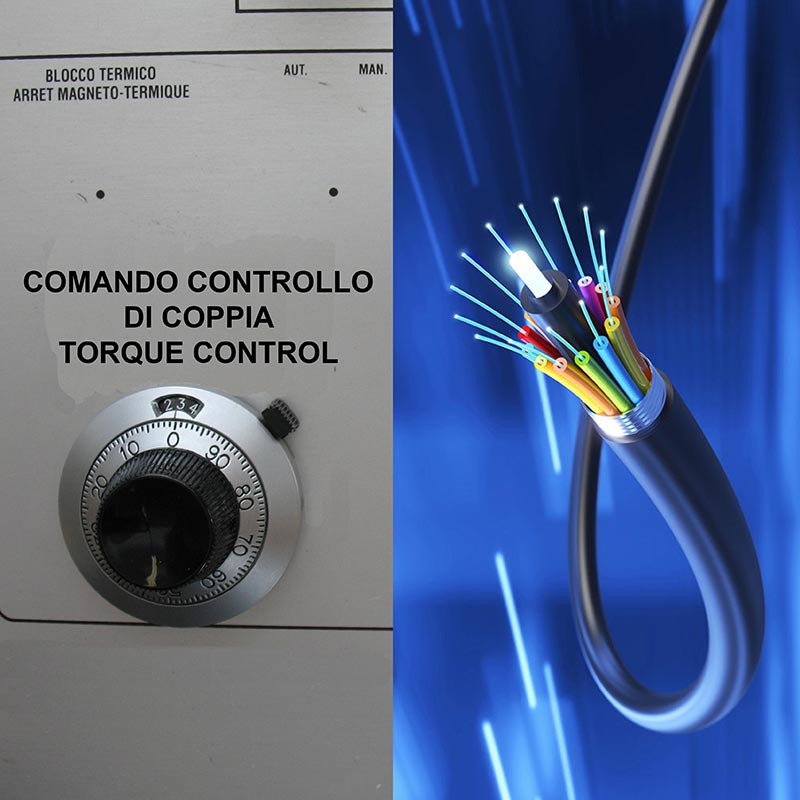

Item no. VSFC0011/OEVE - Torque control

Torque control

ADD TO QUOTE
DETAILS
Art. BP-10-50
Zoom

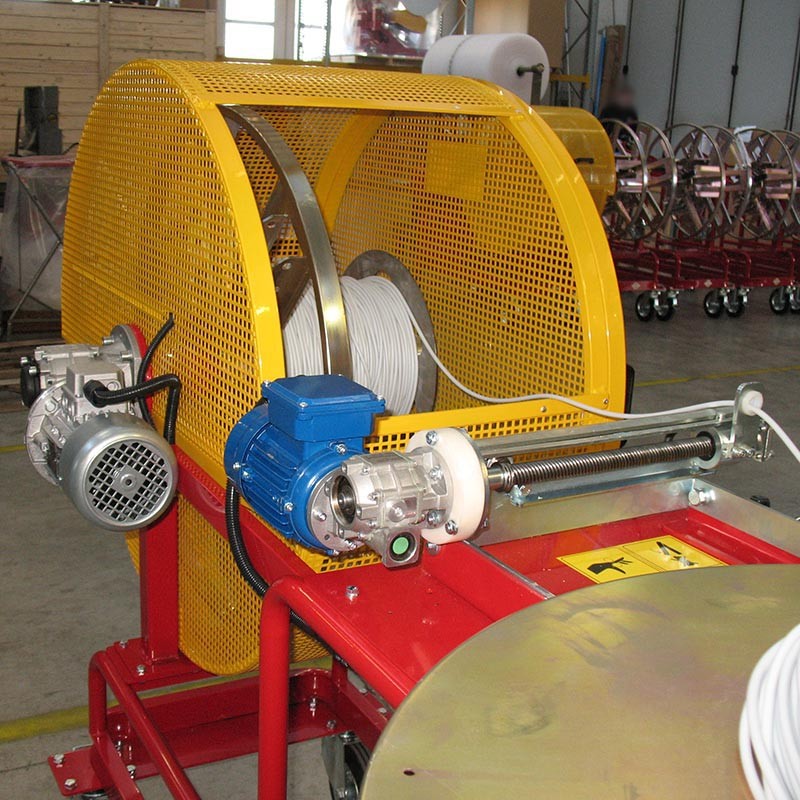

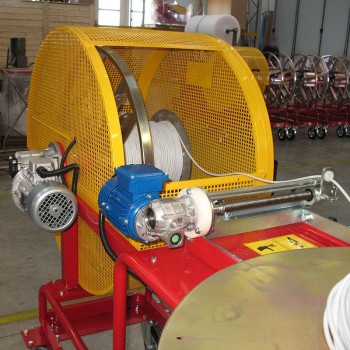

Item no. SP00-ASM

Layering device

ADD TO QUOTE
DETAILS
Zoom
Item no. OA/10Q60

Cable measuring device

ADD TO QUOTE
DETAILS
Zoom
Item no.OE-400

Quick-release coiling head

ADD TO QUOTE
DETAILS
Zoom
Item no. CONV

Cable guide roller

ADD TO QUOTE
DETAILS
Zoom

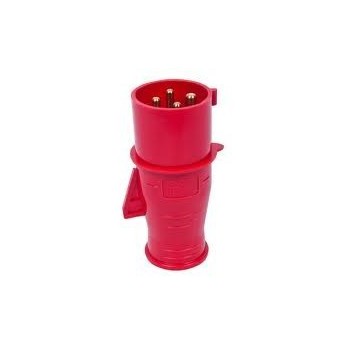

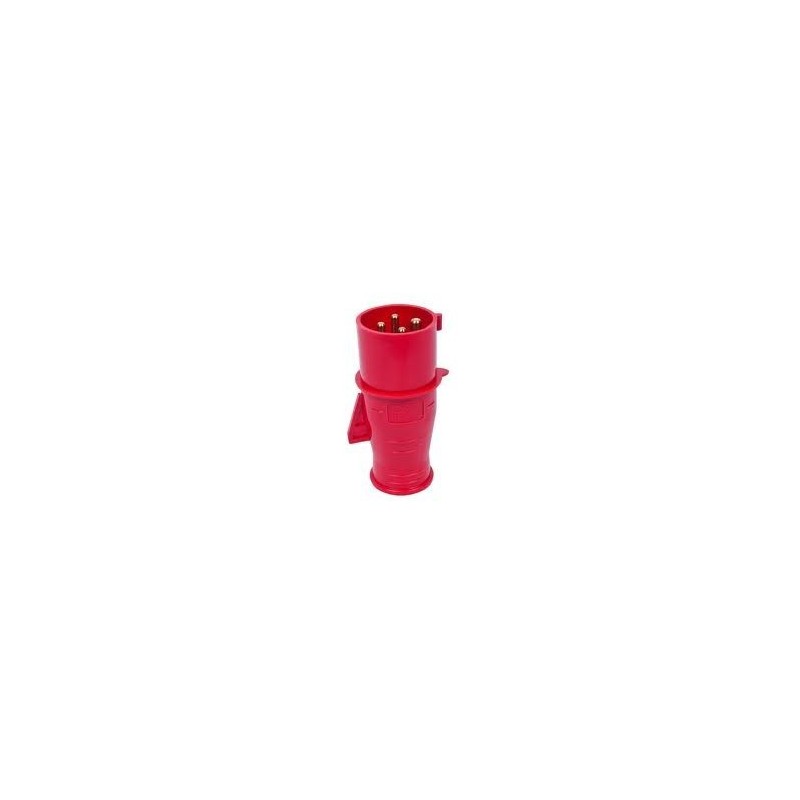

Item no. T

380 Volt three-phase power supply

ADD TO QUOTE
DETAILS
Zoom

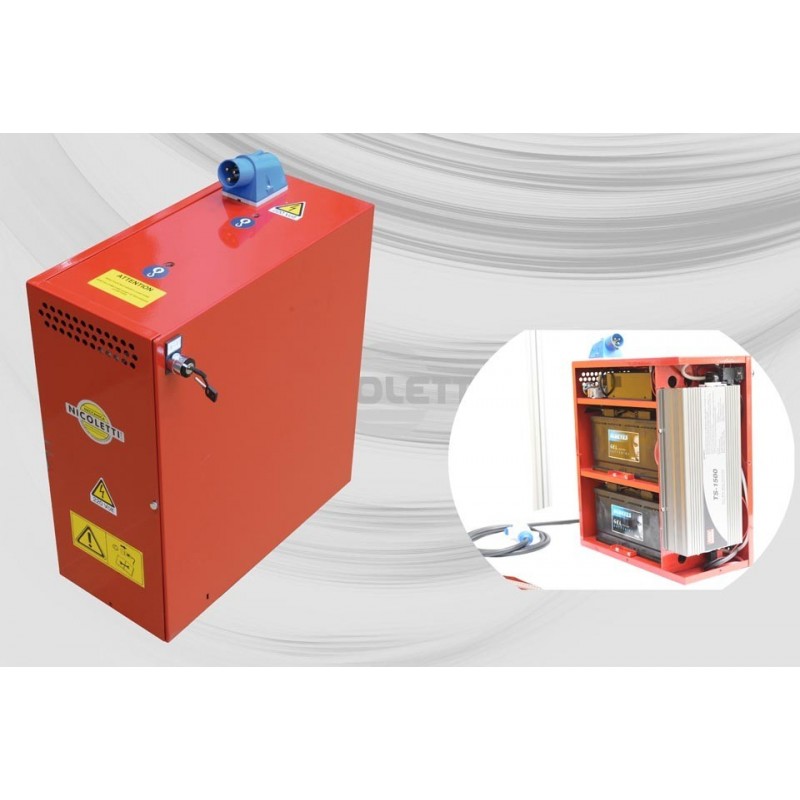

Item no. BA-ASM-16//24/52

Battery-powered power supply for running machines fully independent from 220-380V mains

ADD TO QUOTE
DETAILS
Zoom
Item no. TC-BA-30

Battery-powered cable cutters

ADD TO QUOTE
DETAILS
Request quote
