| Machine height (mm) | 1114 mm |
| Machine width (mm) | 1160 mm |
| Machine length (mm) | 2163 mm |
| Weight (kg) | 250 kg |
| Total power (kW) | 0.37 KW |
| Min./max. rpm (rpm at coil) | 0-70 g/min |
| Coiling head - max. coil core diameter (mm) | 620 mm |
| Coiling head - min. coil core diameter (mm) | 320 mm |
| Coiling head - max. coil width (mm) | 220 mm |
Product added to your cart
Quantity:
Total:
There are 0 items in your cart.
Your cart contains an item.
Product total
(Tax excluded)
Shipping total (Tax excluded)
To be determined
Total
(Tax excluded)

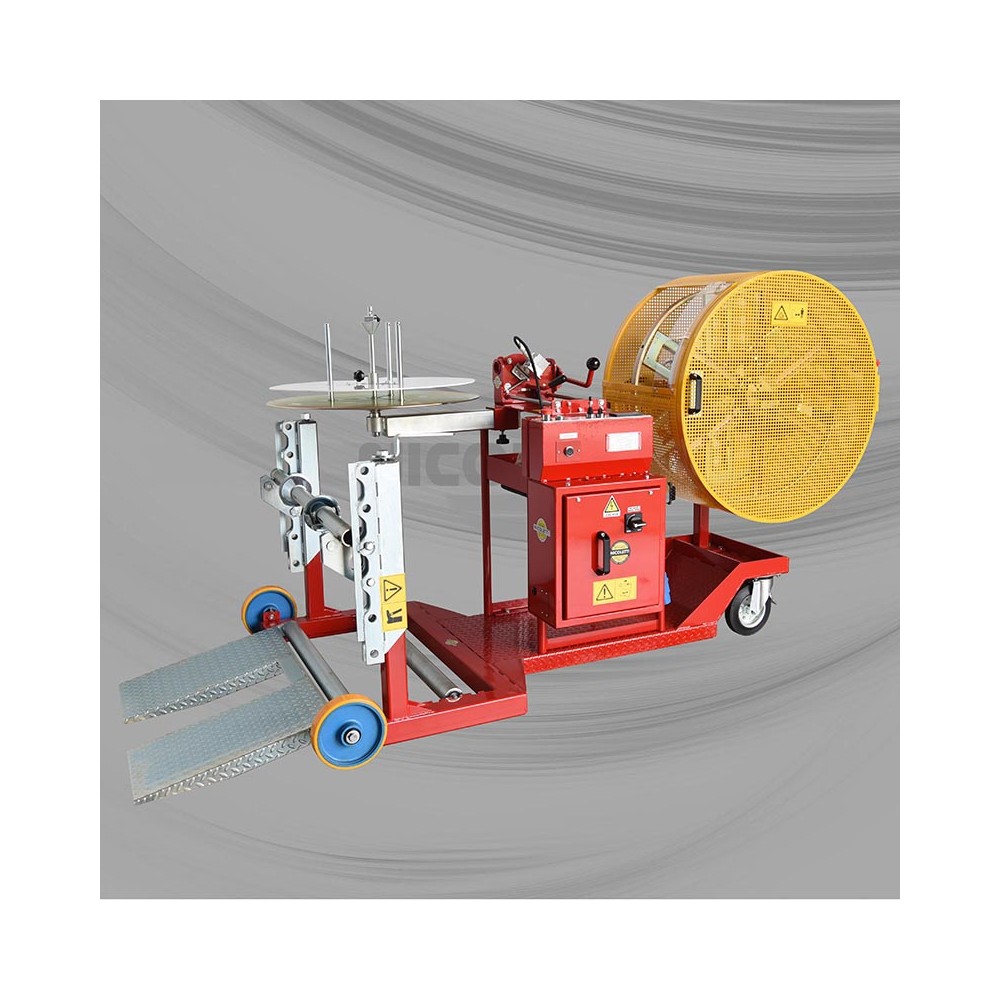

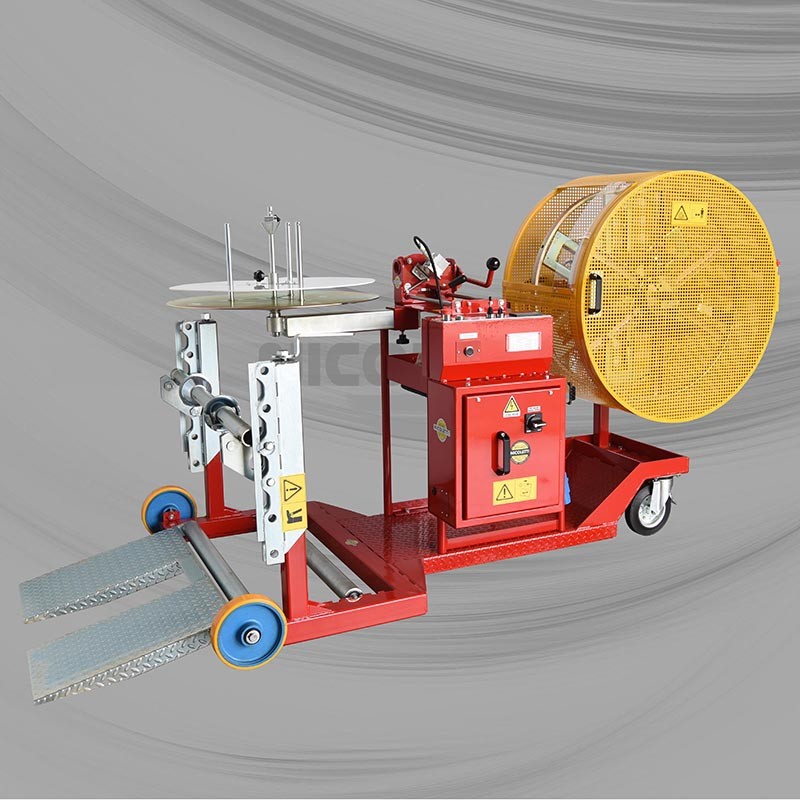

Item no. ASB1-M/V/OE800 - Motorized drum-to-coil and coil-to-coil rewinder LOW PERFORMANCE - For low workloads
ASB1-M/VEL-VAR/CM-15/OE-S
Technical data sheet
| Coiling head - min. coil width (mm) | 115 mm |
| Payoff - Max. drum diameter (mm) | 1200 mm |
| Payoff - Min. drum diameter (mm) | 600 mm |
| Payoff - Max. drum capacity | 1600 kg |
| Uncoiler - Plate diameter (mm) | 700 mm |
| Uncoiler - Max. coil core diameter (mm) | 320 mm |
| Uncoiler - Min. coil core diameter (mm) | 80 mm |
| Uncoiler - Coil height (mm) | 250 mm |
| Load capacity (kg) | 250 kg |
Accessories included
Item no. VEL-VAR
Variable speed
DETAILS
Item no. OE-S
Coiling head
DETAILS
Item no. CM-15
Cable measuring device
DETAILS
Accessories on request
Item no. KIT-WI
Kit for wireless data communication
ADD TO QUOTE
DETAILS
Item no. NE-218
Electronic programmer/counter
ADD TO QUOTE
DETAILS
Item no. RIL-MOVE-2
Motion detector
ADD TO QUOTE
DETAILS
Item no. VSFC0011/OEVE - Torque control
Torque control
ADD TO QUOTE
DETAILS

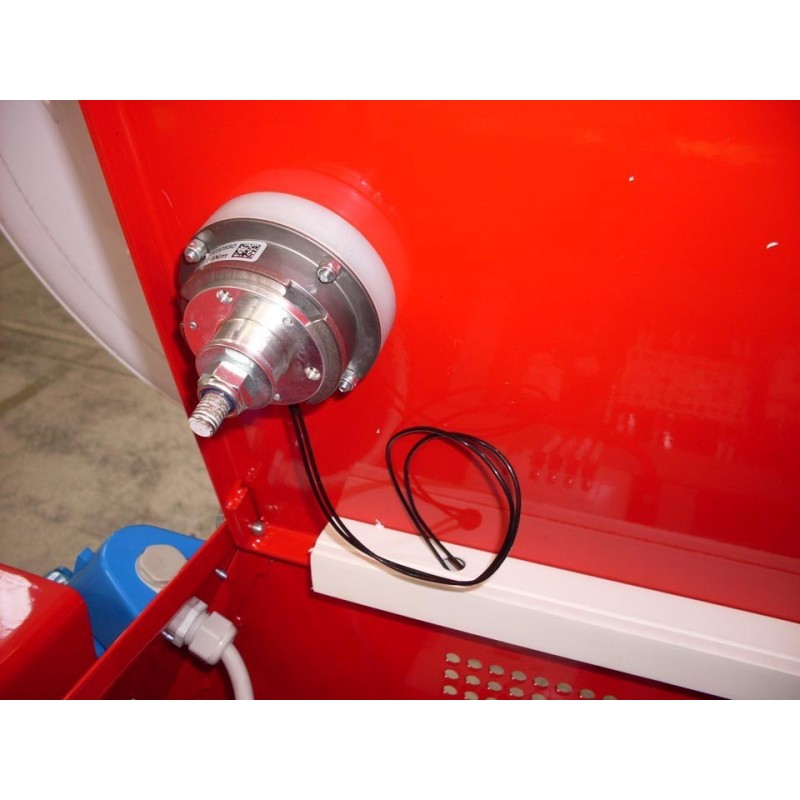

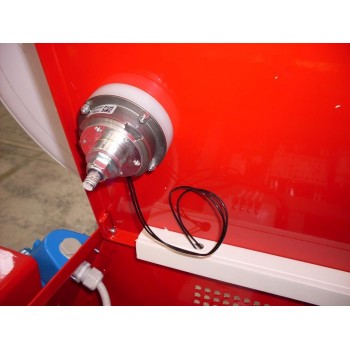

Item no. EF-17
Electric brake
ADD TO QUOTE
DETAILS
Item no. OE-800-R-AN
Coiling head
ADD TO QUOTE
DETAILS
Item no.OE-400
Quick-release coiling head
ADD TO QUOTE
DETAILS
Item no. OA/10Q60
Cable measuring device
ADD TO QUOTE
DETAILS
Item no. CONV
Cable guide roller
ADD TO QUOTE
DETAILS
Item no. T
380 Volt three-phase power supply
ADD TO QUOTE
DETAILS
Item no. BA-ASM-16//24/52
Battery-powered power supply for running machines fully independent from 220-380V mains
ADD TO QUOTE
DETAILS
Item no. TC-BA-30
Battery-powered cable cutters
ADD TO QUOTE
DETAILS
