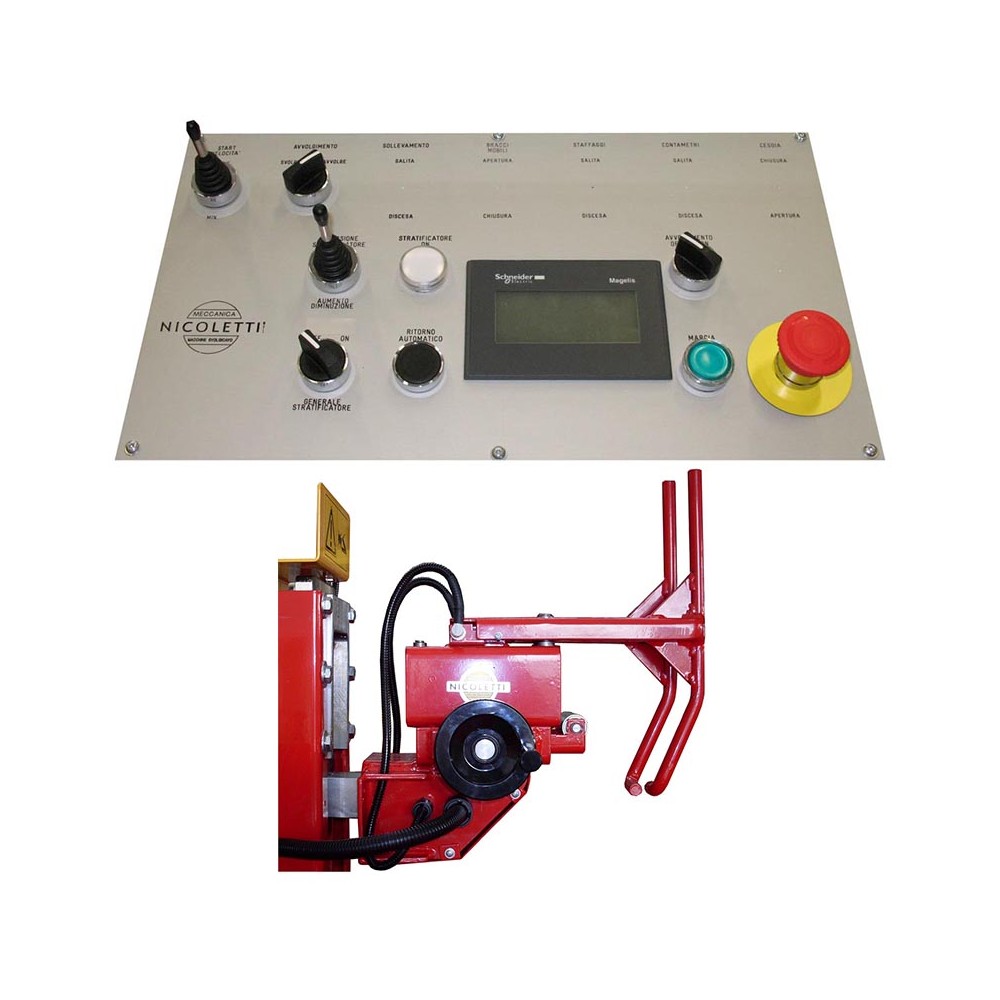

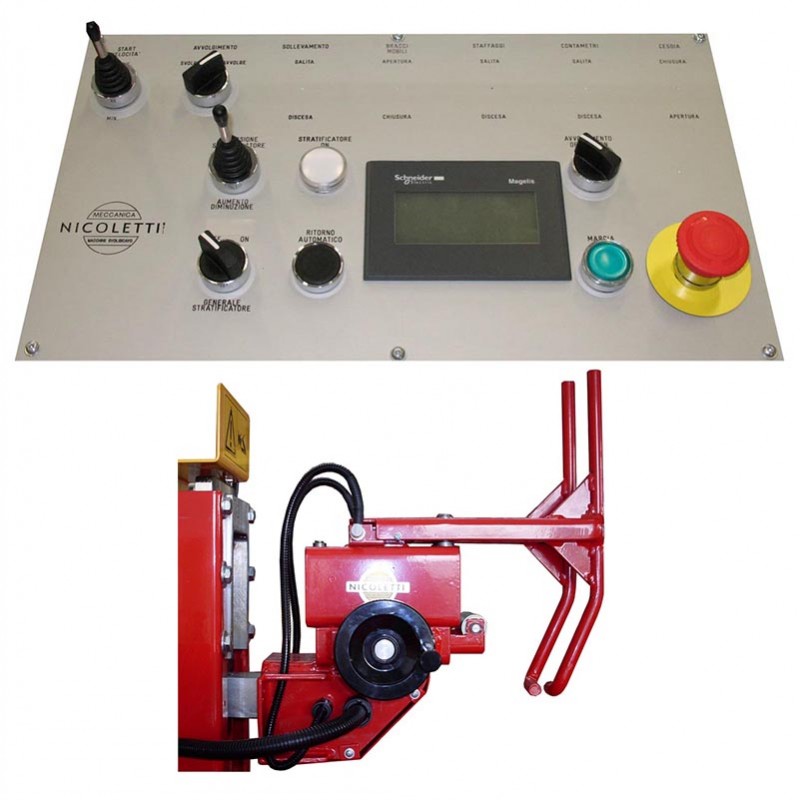

Item no. SP-08/01-S

replaces item no.SP-08/00

This system stands out from the SP-08/00 solution for its accurate traversing pitch control by means of:

• Proportional system and electromechanical sensor unit, which make up for pitch lagging due to cable reversing at the end of the layer, while also correcting any pitch errors due to incorrect measurement or cable diameter setting.
• Cable diameter entered via keypad.
• Automatic setting option for cable diameters 4-100mm
• With this accessory combined with the detector for sudden movement, make the winding operation entirely possible in automatic way, without the presence of the operator.
• Possibility of manually correcting the layering reversing (non-parallel reel flanges)
• Possibility to regain manually perpendicularity delays (wrong setting of the cable diameter)
