Item no. OE-S

Code: OE-S

Watch video

Features

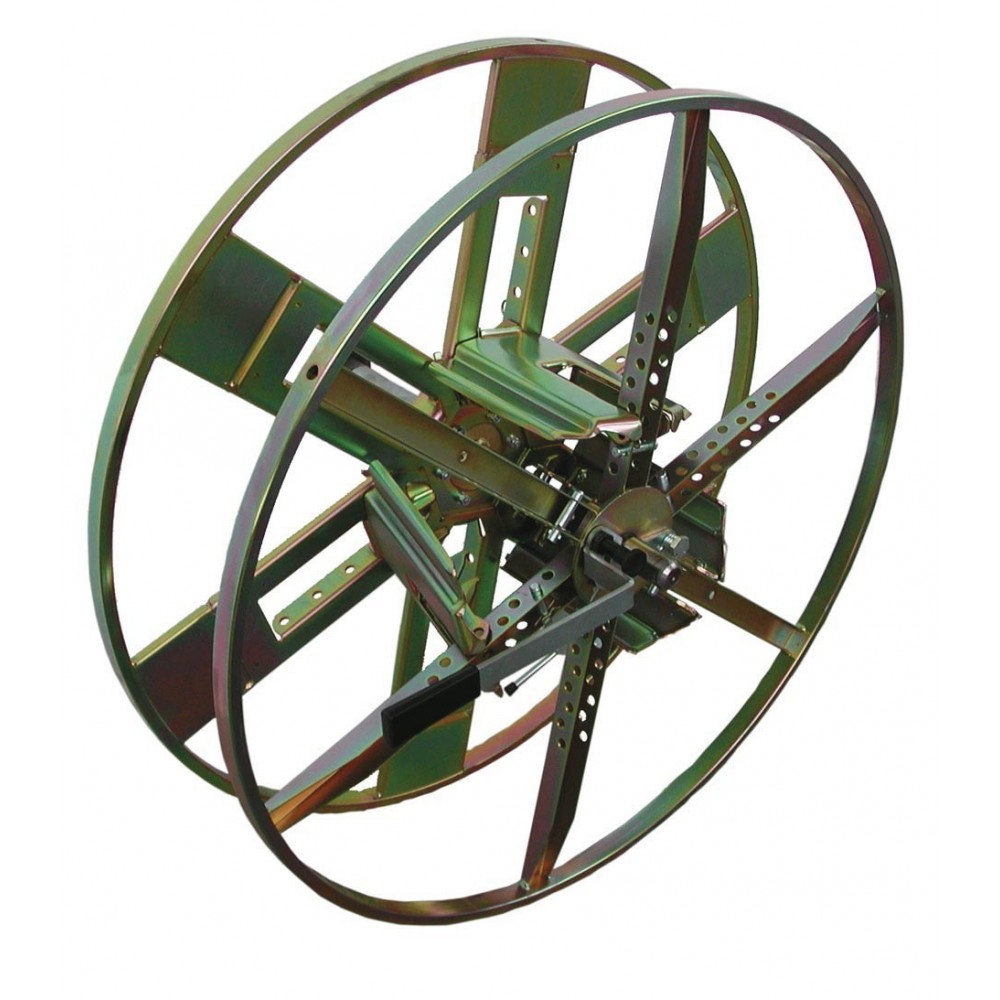

Coiling head, vers. with removable flange for AS series.

Cylindrical core during winding and tapered during removal to make the coil easier to take off.

Core Ø can be adjusted from 320 to 620mm in 50mm increments

Overall dimensions: Ø 800mm width 500mm

Weight: 40 kg

Coil Ø max. 750, fixed widths min. 115mm max. 220mm weight 100 kg

NB: coilers can be ordered with different Ø and cores on request.

Technical data sheet

Height (mm)	1000 mm
Width (mm)	500 mm
Length (mm)	1000 mm
Weight (kg)	40 kg
Core - max. diameter (mm)	620 mm

Core - min. diameter (mm)	320 mm
Coil - max. width (mm)	220 mm
Coil - min. width (mm)	115 mm
Coils - max. diameter (mm)	750 mm
Max. coil weight	250 kg
