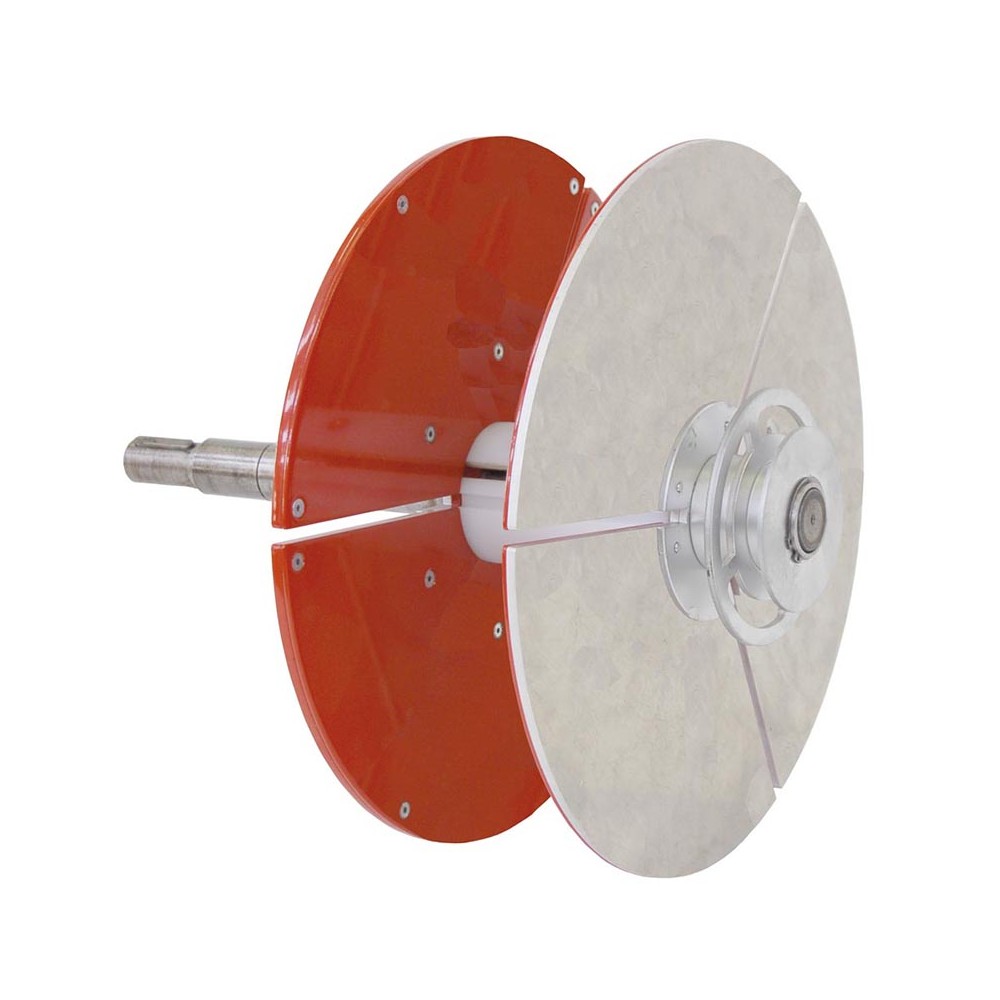

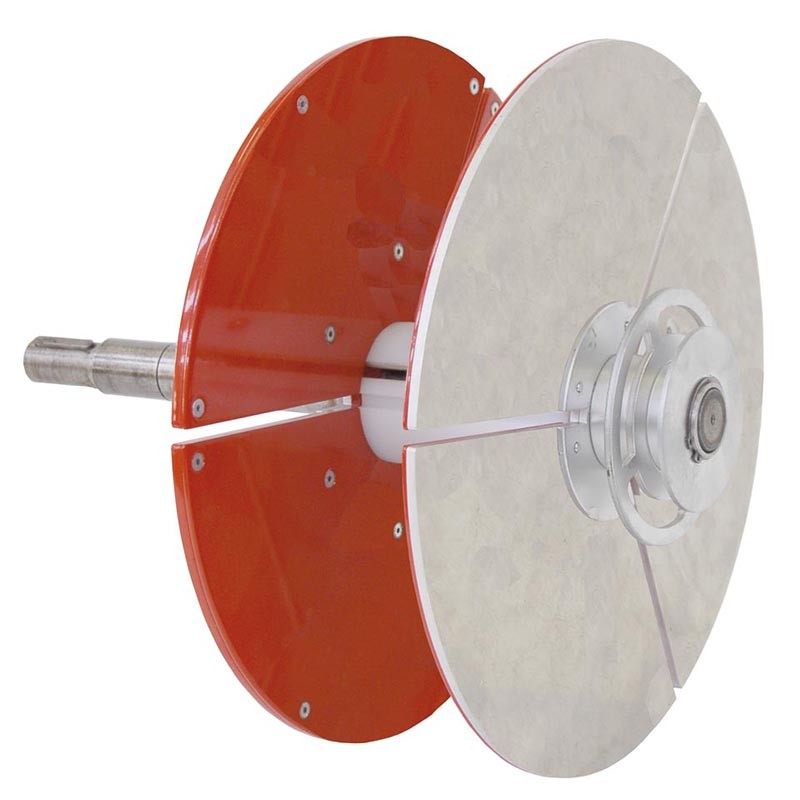

Item no.OE-400

Code: OE-400

Watch video

Features

Quick-release coiling head
Fixed expanding core
Quick-release front flange
3 x strapping at 120°.

Overall dimensions: Ø400mm thickness 260mm
Weight: 15 kg
Core diameter: can be ordered with fixed diameter in 80 to 260mm range (increments of 20mm)
Core width: can be ordered with width in 40 to 140mm range (increments of 20mm)
Coil weight capacity: 30kg

Technical data sheet

Height (mm)	400 mm
Width (mm)	250 mm
Length (mm)	400 mm
Weight (kg)	15 kg
Core - max. diameter (mm)	260 mm

Core - min. diameter (mm)	80 mm
Coil - max. width (mm)	140 mm
Coil - min. width (mm)	40 mm
Max. coil weight	30 kg

Request quote
