  • Item no. OE-B-10

Item no. OE-B-10

Item no. OE-B-10
Zoom

OE-B-10

Watch video

Features

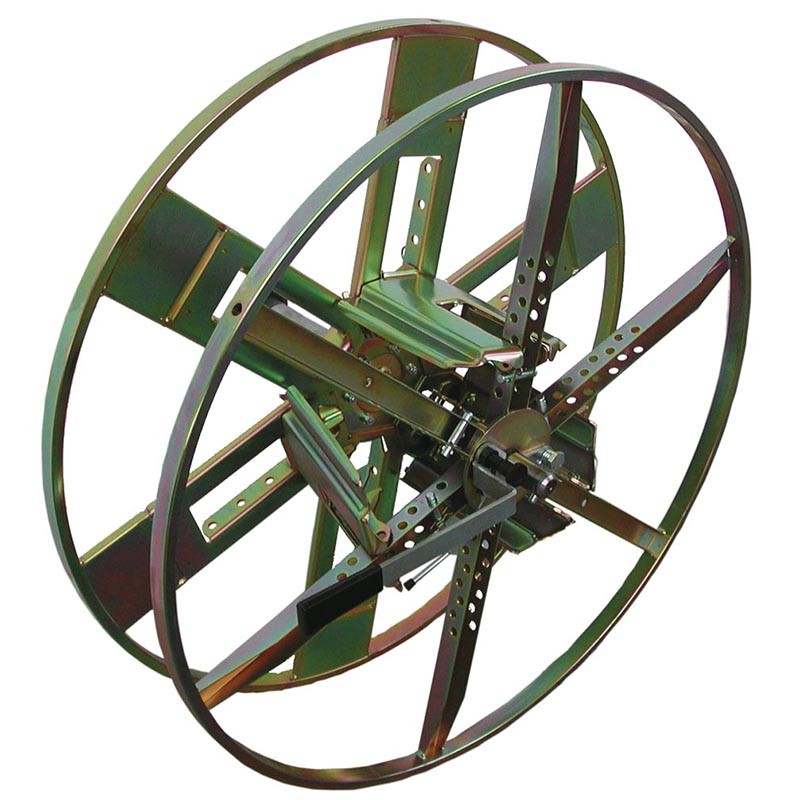

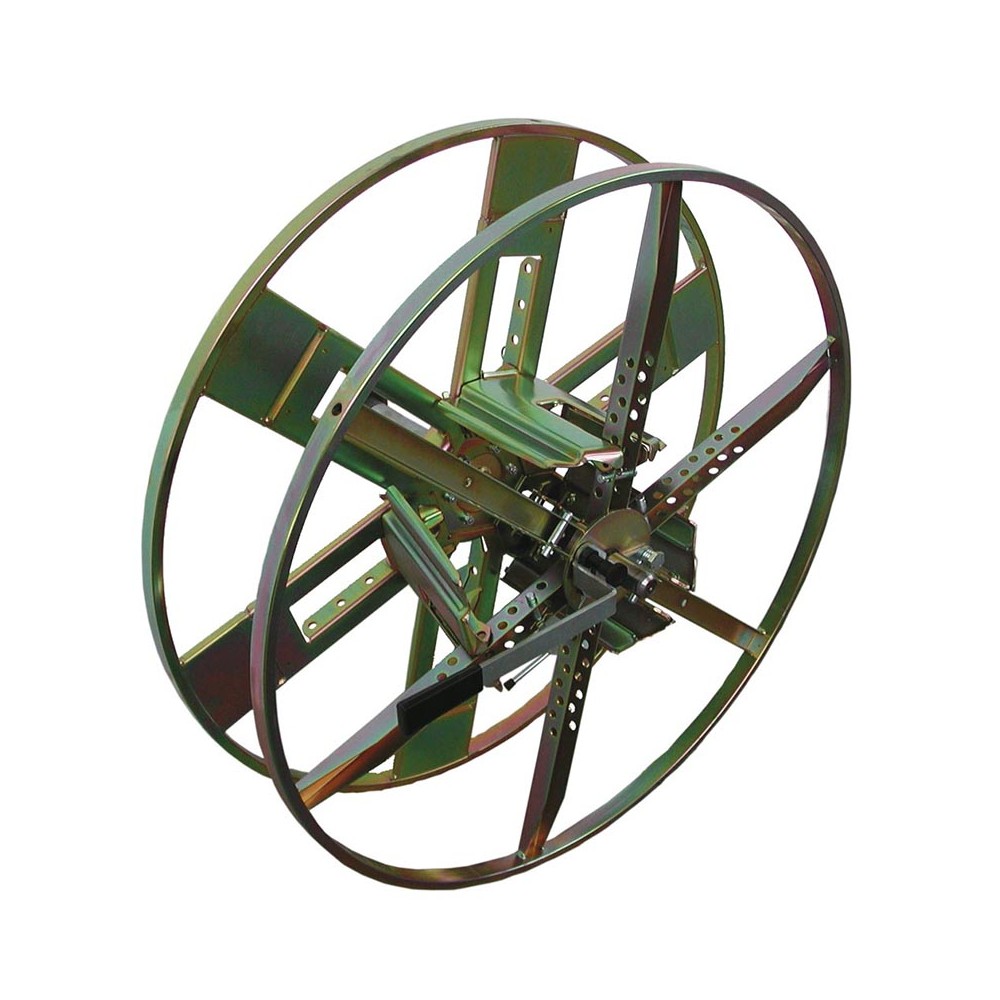

Coiling head with removable flange.
Cylindrical core during winding and tapered during removal to make the coil easier to take off.
Core diameter can be adjusted from 320 to 620 mm in 50mm increments
Overall dimensions: diameter 1000mm width 450mm weight: 40 kg
Coil diameter max. 950, width min. 115mm max. 220mm weight 250 kg
NB: coilers can be ordered with different diameters and cores on request

Technical data sheet

Height (mm) 1000 mm
Width (mm) 450 mm
Length (mm) 1000 mm
Weight (kg) 40 kg
Core - min. diameter (mm) 320 mm
Core - max. diameter (mm) 620 mm
Coil - max. width (mm) 220 mm
Coil - min. width (mm) 115 mm
Coils - max. diameter (mm) 950 mm
Max. coil weight 250 kg
Request quote
